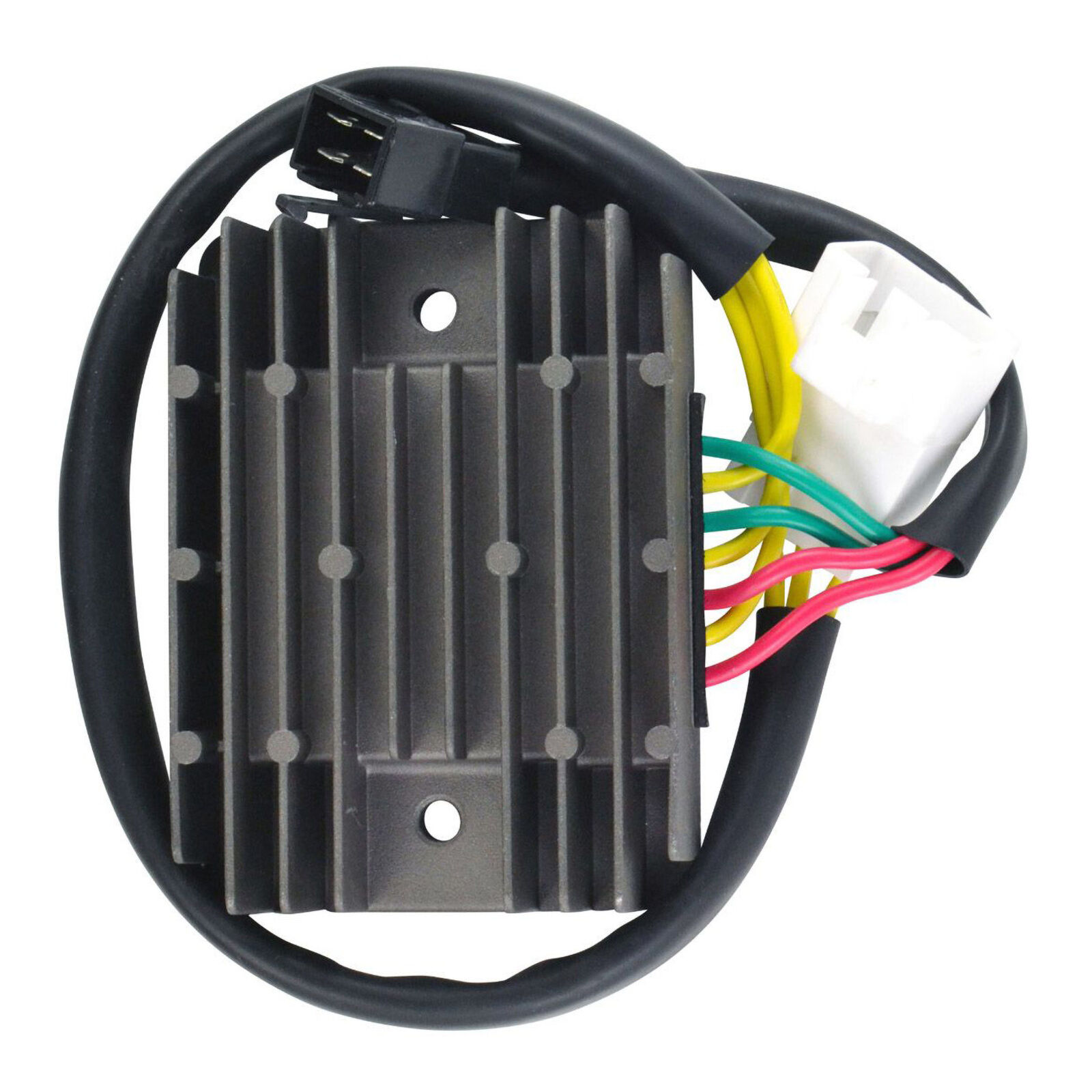

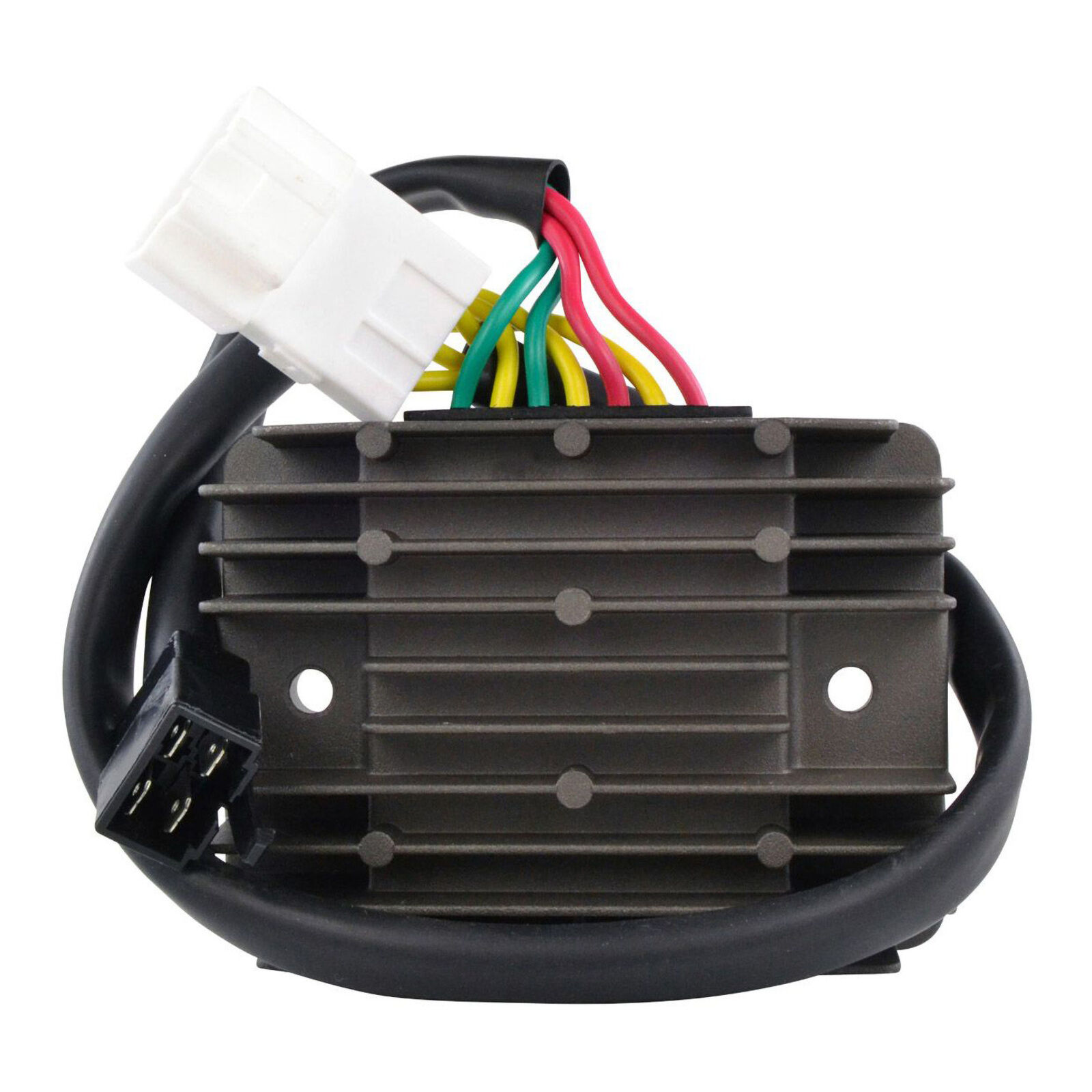

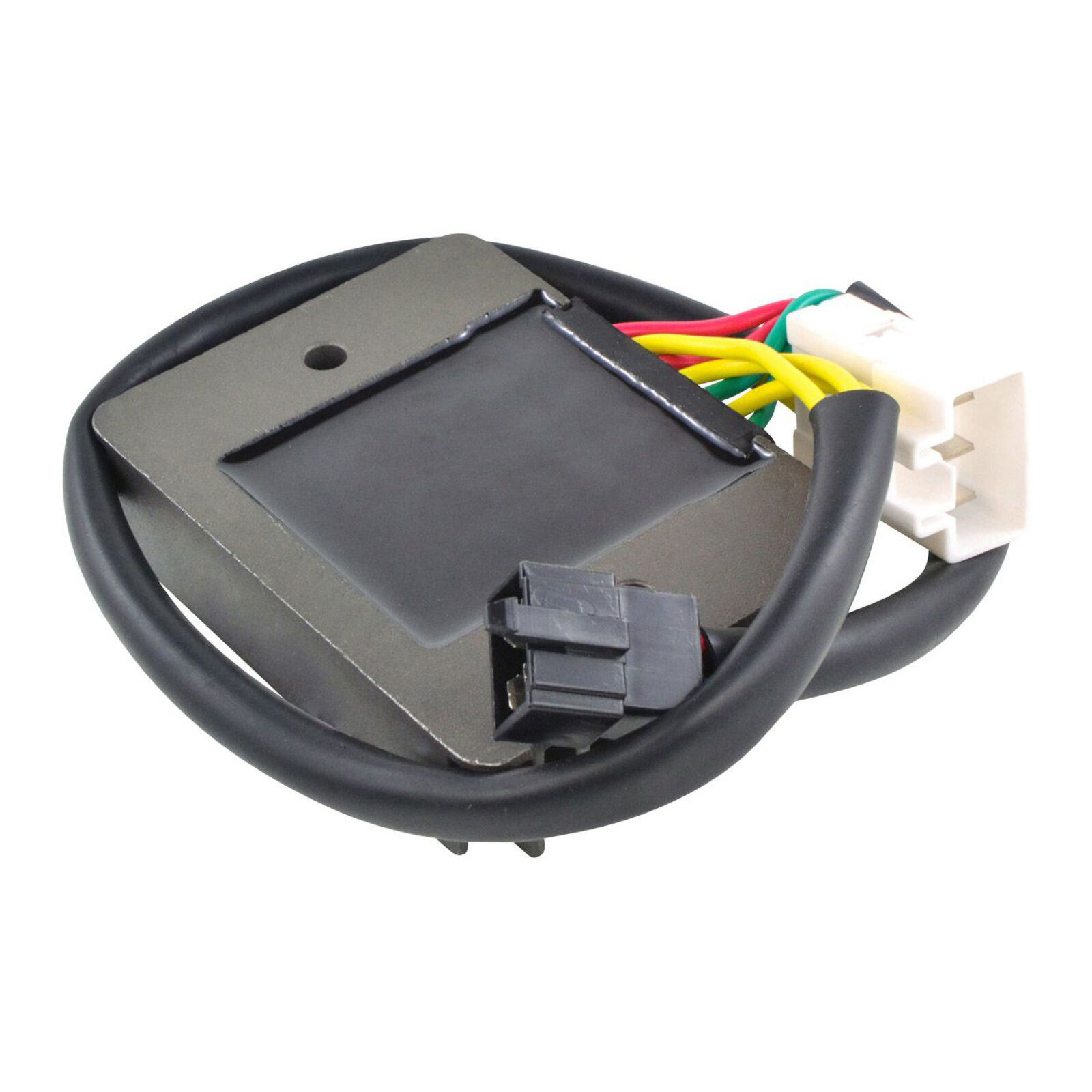

• AC regulator rectifier
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Higher grade of electric components.
  • All products shipped are tested

Dimensions:
Width: 80 mm
Length: 110 mm
Height: 28 mm
Wires length: 150 mm & 400 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? C to 85? C

Before installing your new regulator/rectifier:
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connector

(RMS020103519_7)

SKU RMS020103519_7
Brand RMStator
Unit Of Measure ea
