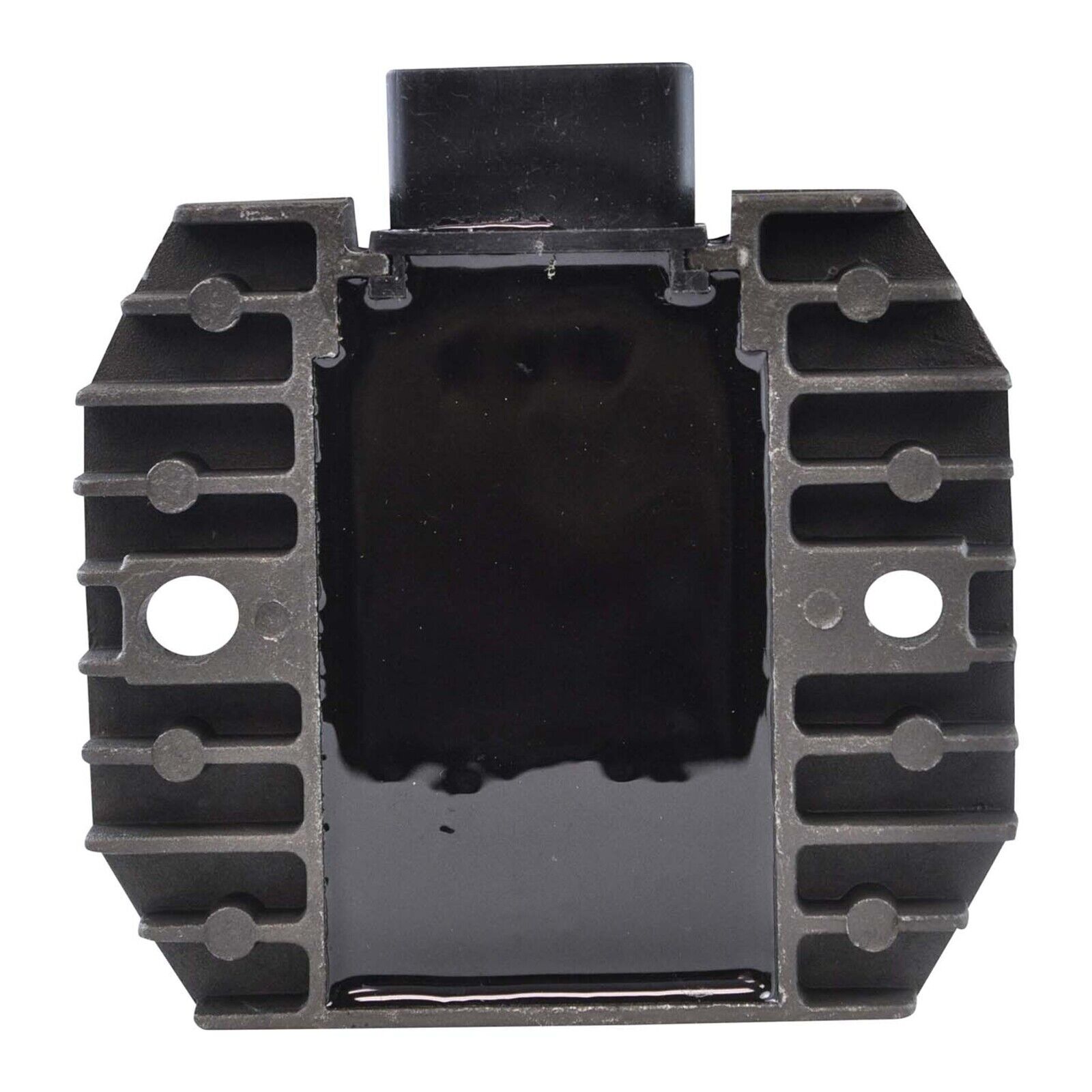

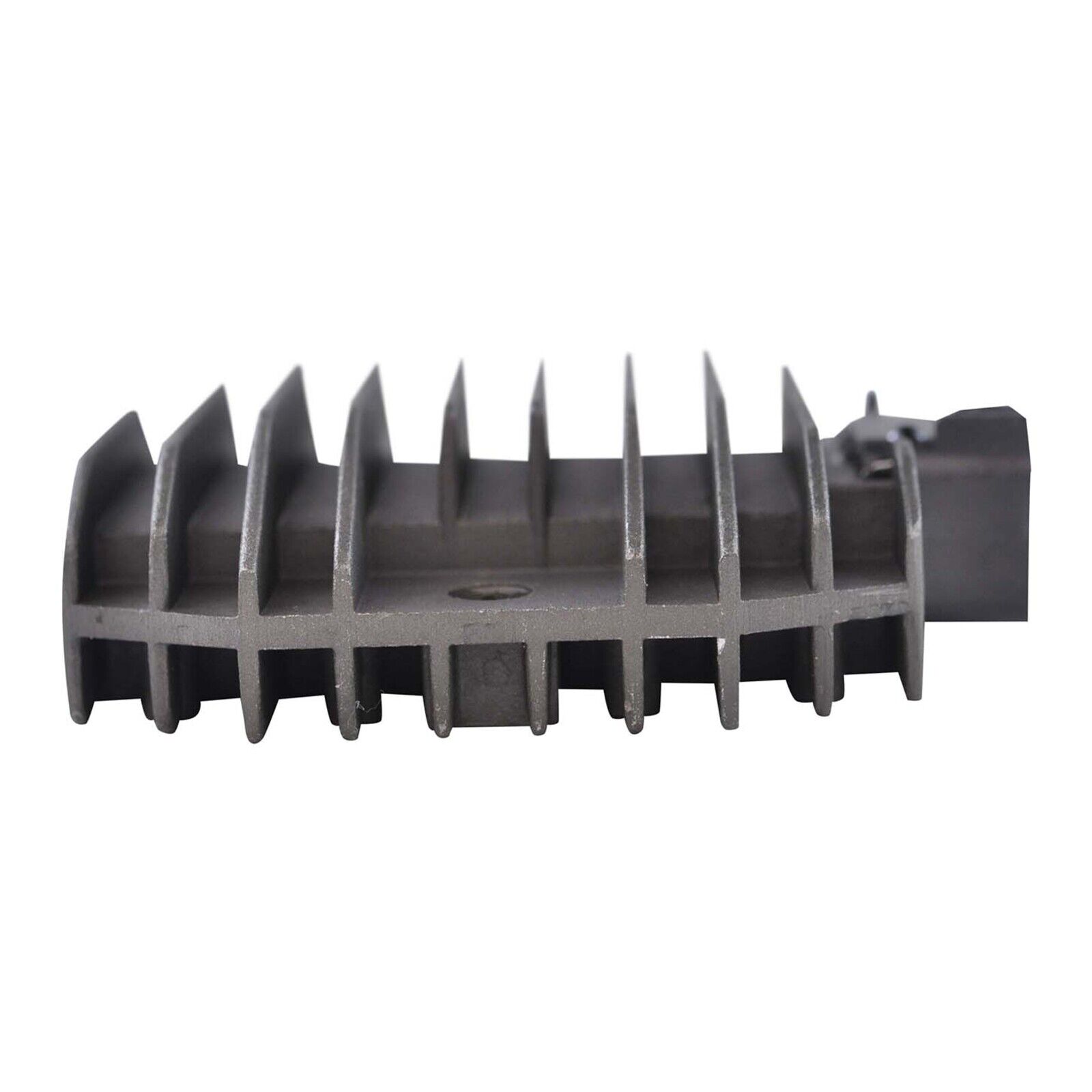

• AC regulator rectifier
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Higher grade of electric components.
  • All products shipped are tested

Dimensions :
Width : 89 mm
Length : 91 mm
Height: 27 mm
Fixation holes center to center : 65 mm

Other specifications :
Number of plugs : 1
Number of pins : 6

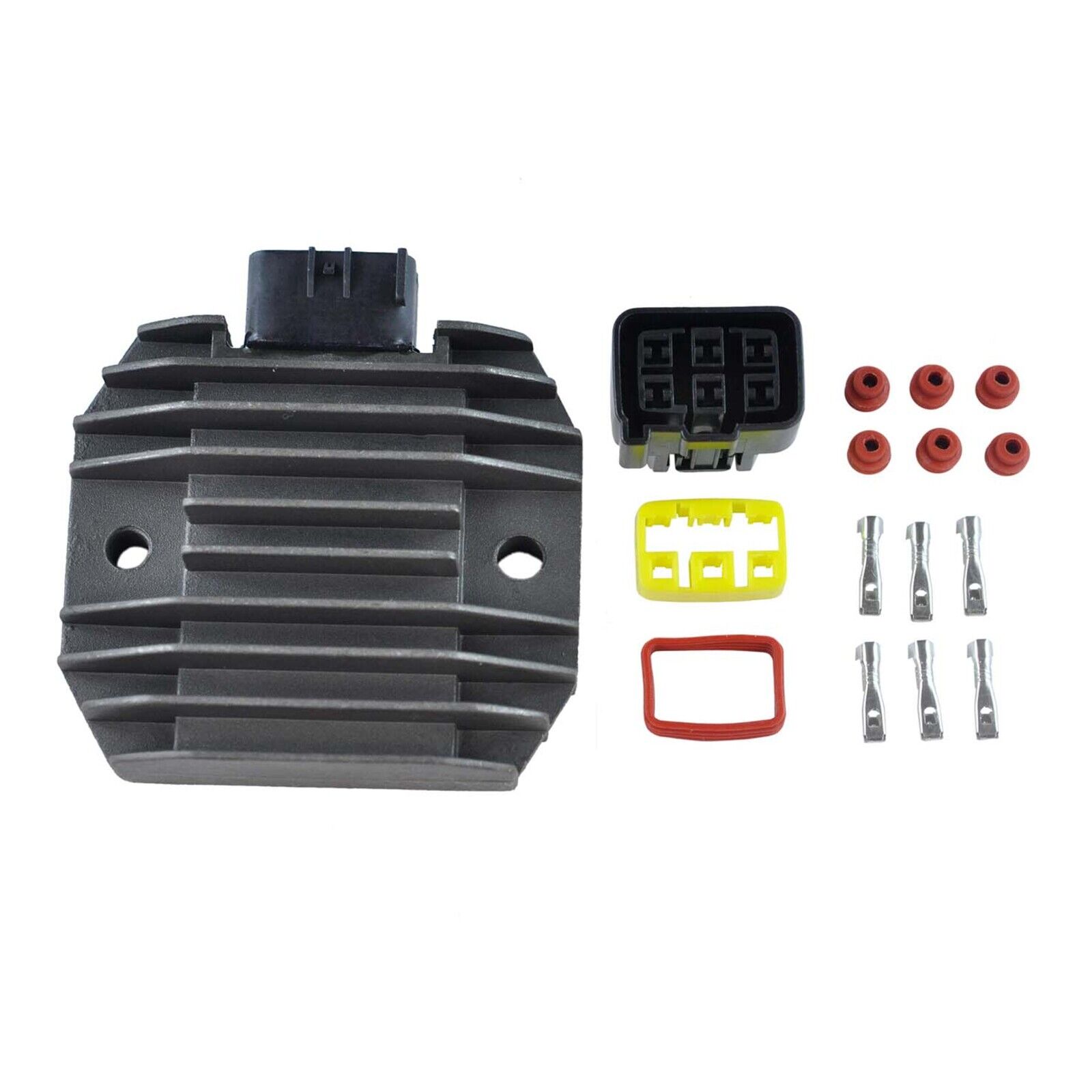

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Before installing your new regulator/rectifier:
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connector

(RMS30809)

SKU RMS30809
Barcode # 9420060000000
Brand RMStator
Unit Of Measure ea
