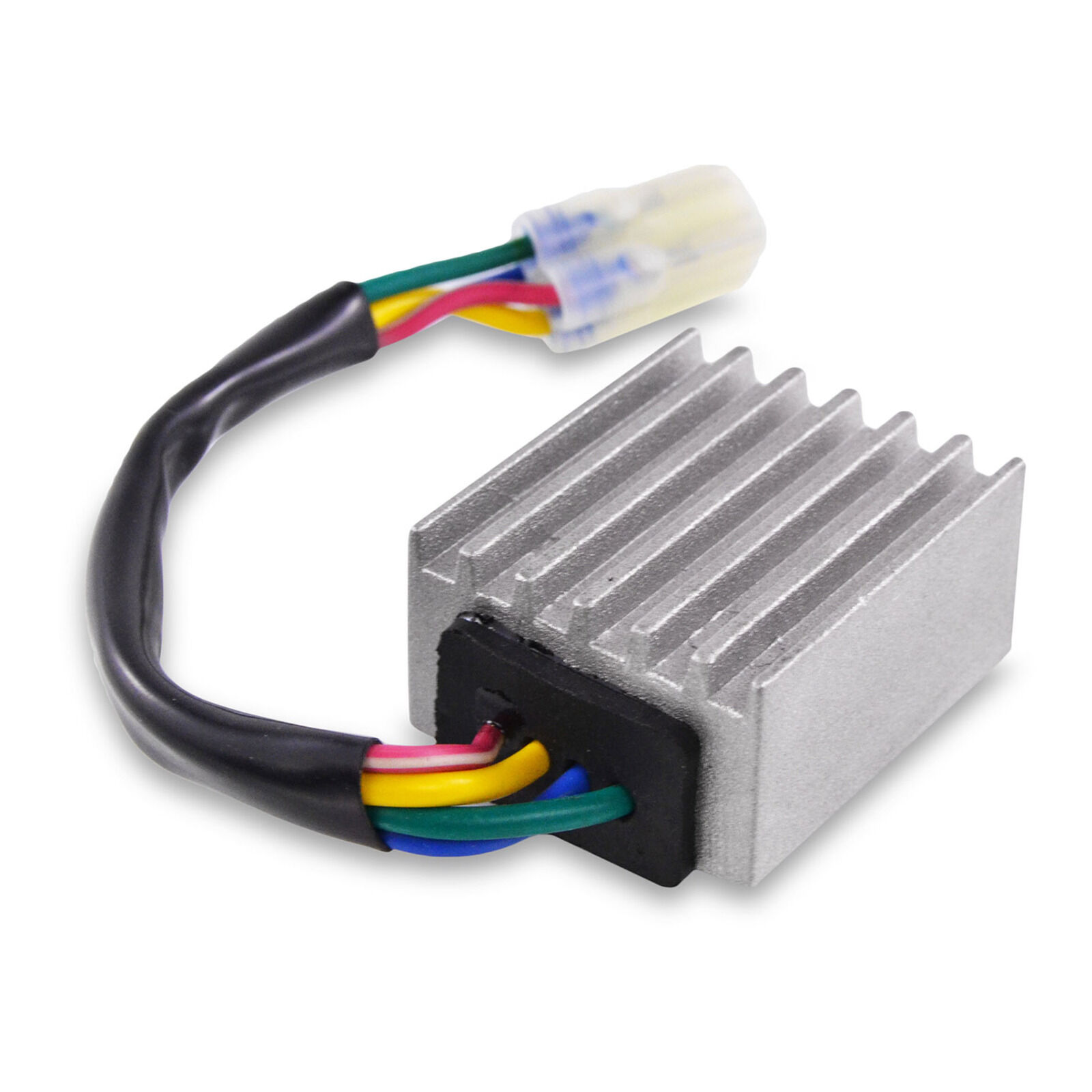

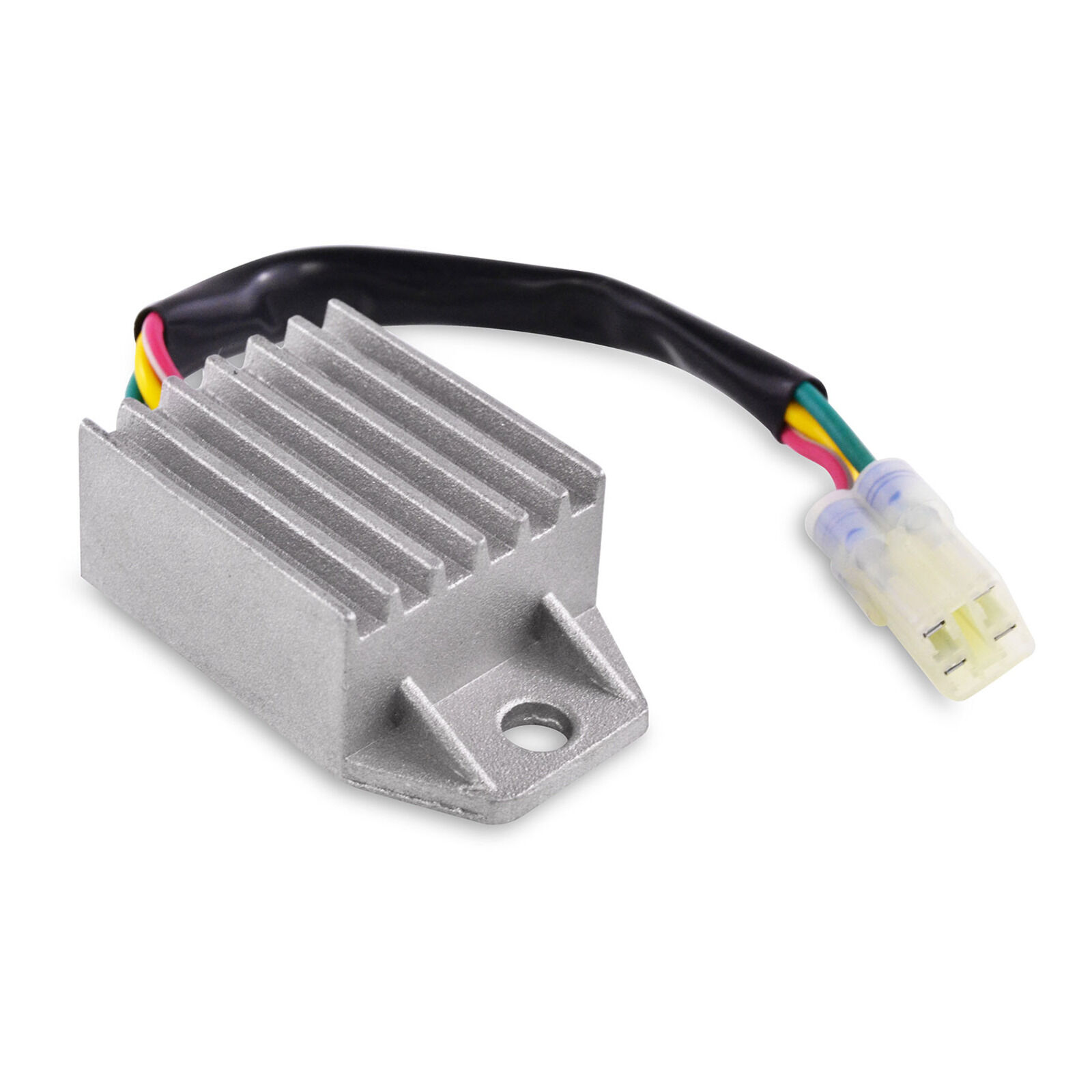

• AC regulator rectifier
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Higher grade of electric components.
  • All products shipped are tested

Dimensions:
Width: 38 mm
Length: 57 mm
Height: 19 mm
Wires length: 122 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Before installing your new regulator/rectifier:
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

(RMS020103312)

SKU RMS020103312
Brand RMStator
Unit Of Measure ea
