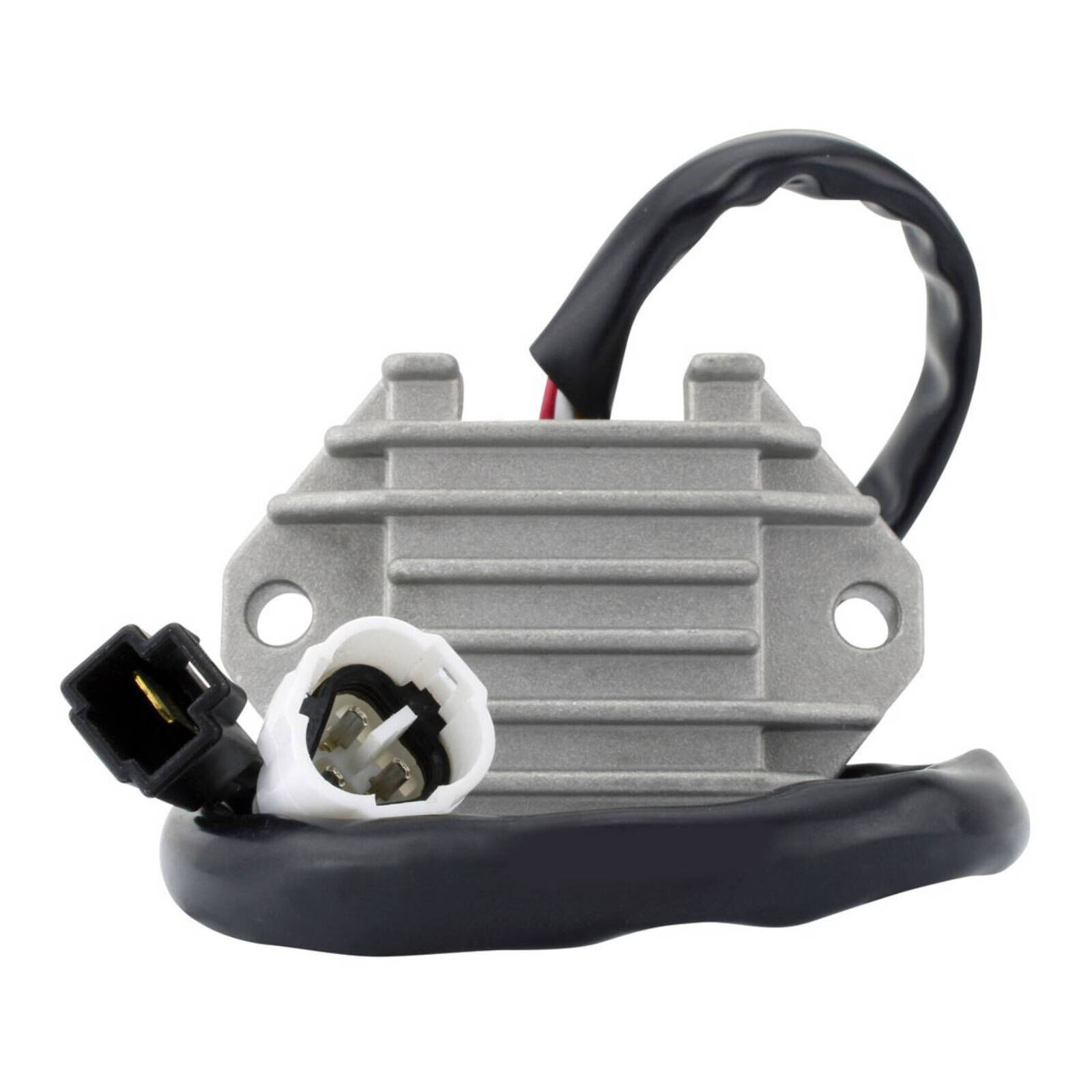

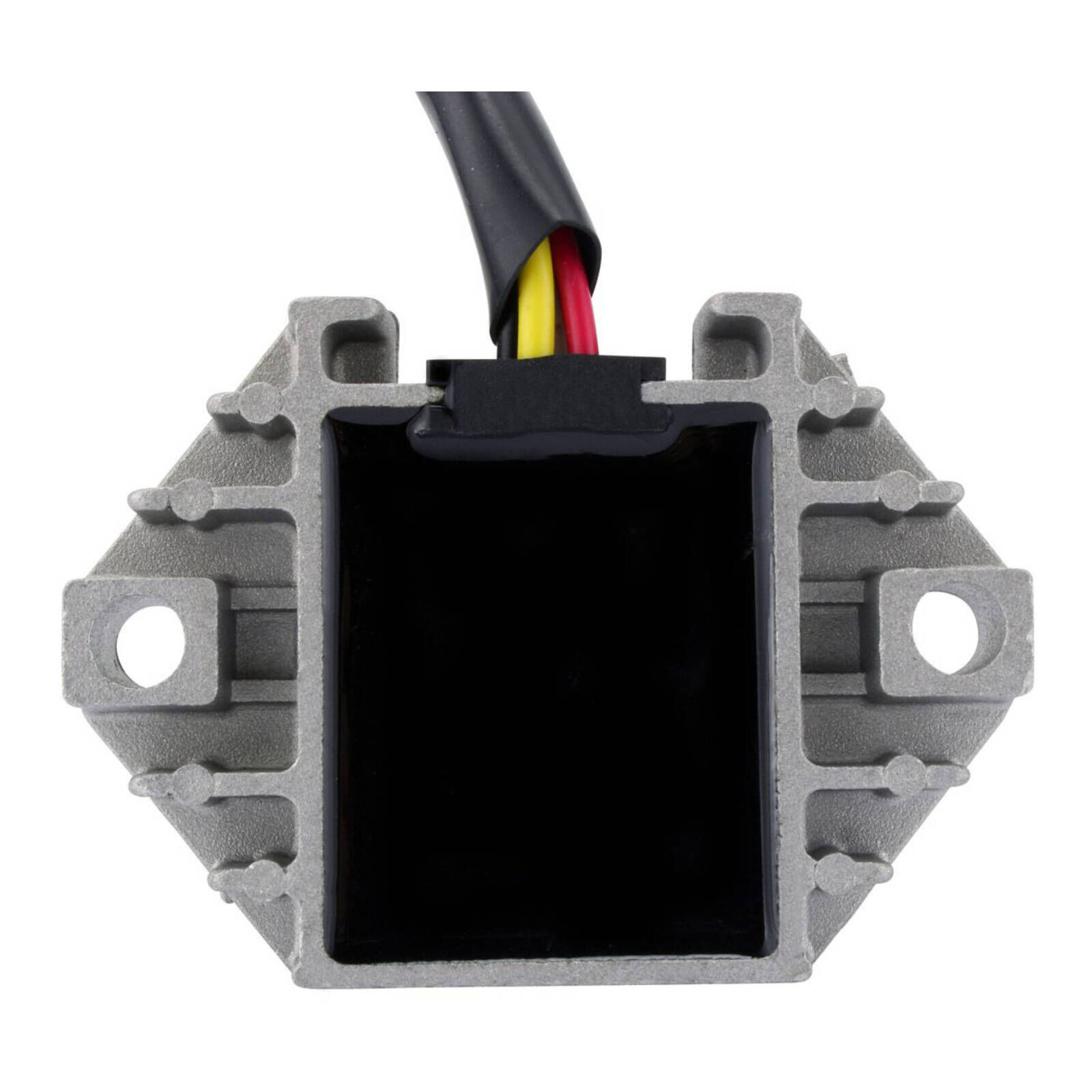

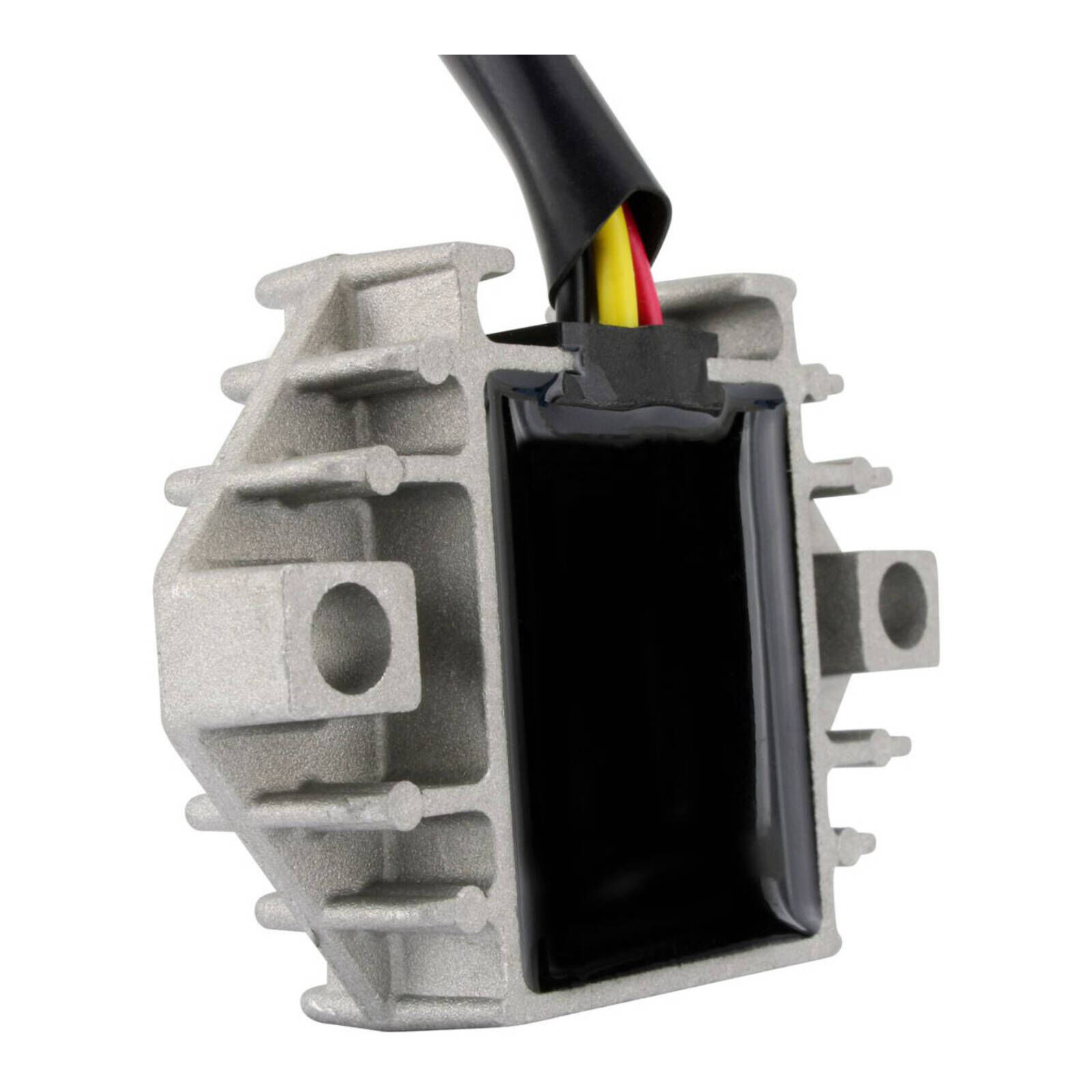

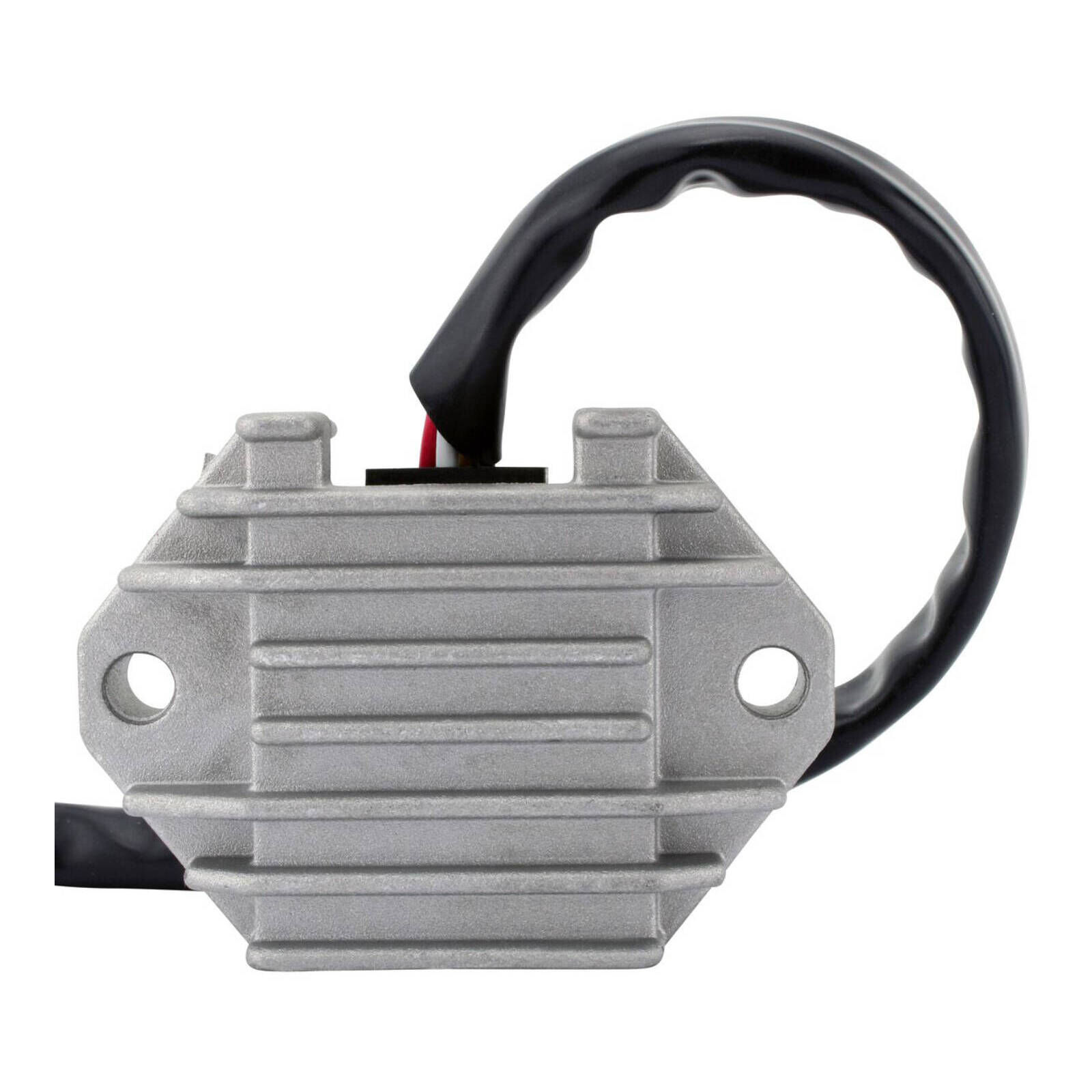

• AC regulator rectifier
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The Quality exceeds the OEM equipment
  • Higher grade of electric components.
  • All products shipped are tested

Dimensions:
Width: 52 mm
Length: 72 mm
Height: 20 mm
Wires length: 480 mm
Distance between fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 2
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Before installing your new regulator/rectifier:

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

(RMS020107253)

SKU RMS020107253
Brand RMStator
Unit Of Measure ea
