• AC regulator rectifier
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment
• Higher grade of electric components.
• All products shipped are tested

Please note that there are multiple regulators for some Triumph vehicles. Please refer to the note below to make sur you purchase the right part.

Tiger 885 1993 to 1998 This part is the replacement for Tiger 885 with a VIN LOWER than 71698. For VIN 71699 to 124105, please refer to OEM T1300021.

Trophy Standard 1991 to 2004 This part is the replacement for Trophy Standard with a VIN LOWER than 29155 or HIGHER than 29156 with a 25 amp alternator. For models with a VIN higher than 29156 and a 40 amp alternator, refer to OEM T1300021

Speed Triple 1994 to 2018 : This part will only fit on Street Triple with a a carburator. If you vehicle has a VIN between 210445 and 461331, please refer to OEM T1304045. If your vehicle has a VIN between 461332 and 499573 and a non ABS version, refer to OEM T1300165. If your vehicle has a VIN between 461332 and 499956 and a ABS version, refer to OEM T1301564. If you vehicle has a VIN BETWEEN 141872 and 210444, refer to part # RM30507 / RMS022-106230. If you vehicle has a VIN lower than 141871, please refer to OEM T1300021. If your vehicle has a VIN higher than 499574 and a Non ABS version or higher than 499957 and a ABS version, please refer to part # RM30506 / RM30506H / RMS022-105928 / RMS023-106203 / RMS023-107140.

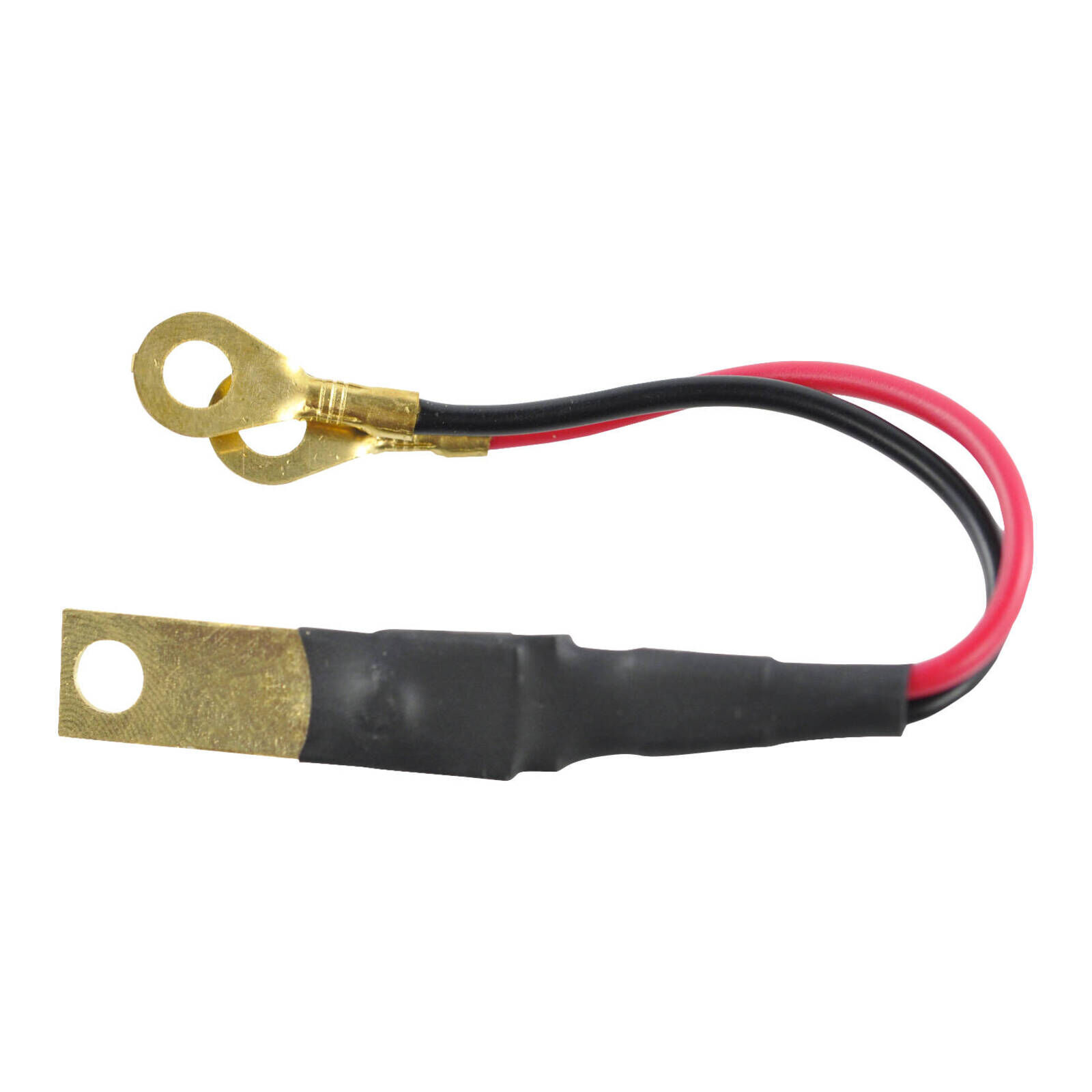

Dimensions :
Thickness : 0.9 mm
Length : 77 mm
Height: 0.9 mm
Wires length: 140 mm

Other specifications :
Number of plugs : 2
Number of wires : 2

Before installing your new regulator/rectifier:
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
