Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
No assembly required
The Quality exceeds the OEM equipment
Higher grade of electric components
All products shipped are tested

Dimensions :
Width : 15 mm
Height : 48 mm
Fixation holes center to center : 60 mm

Other specifications :
Number of plugs : 0
Number of pins : 1
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

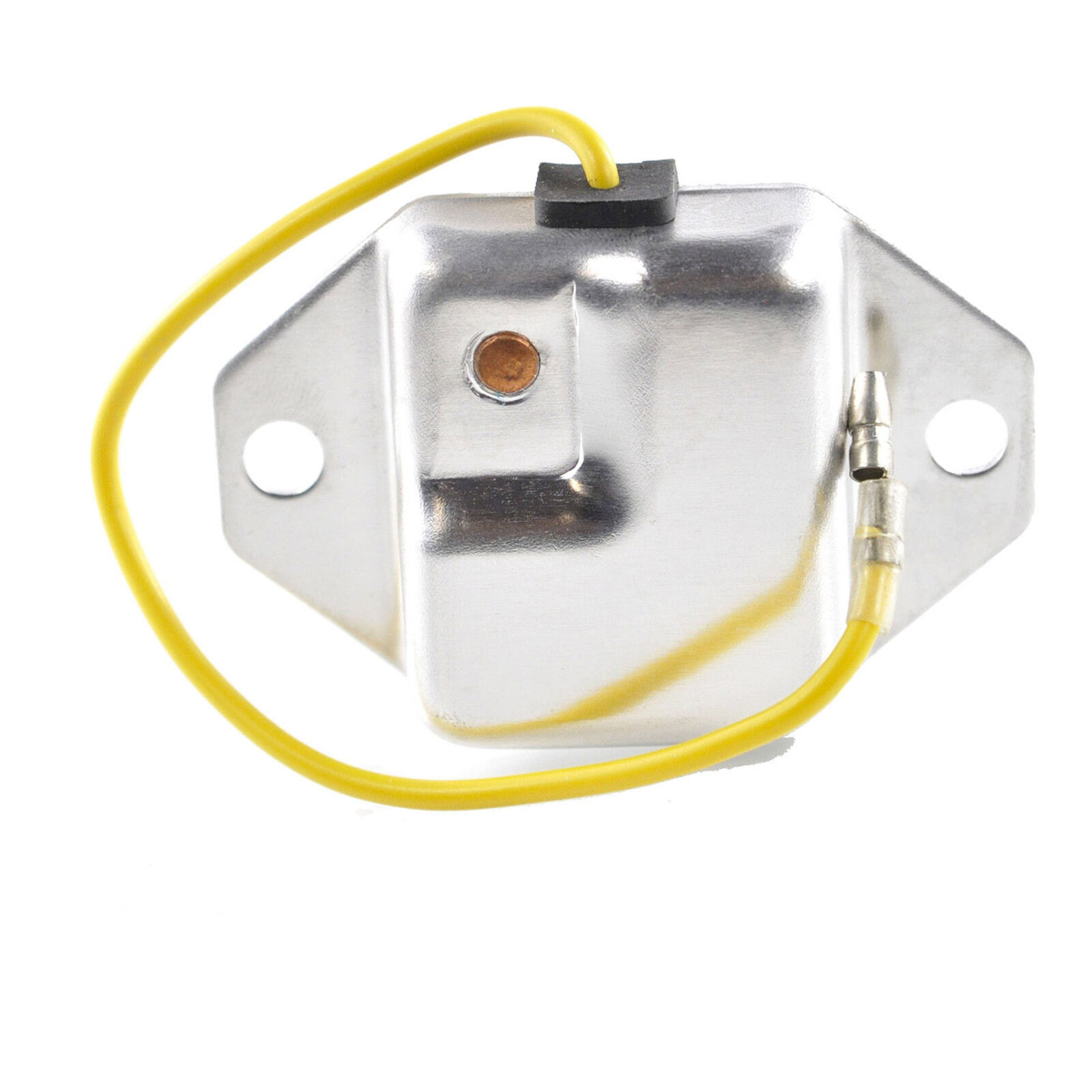

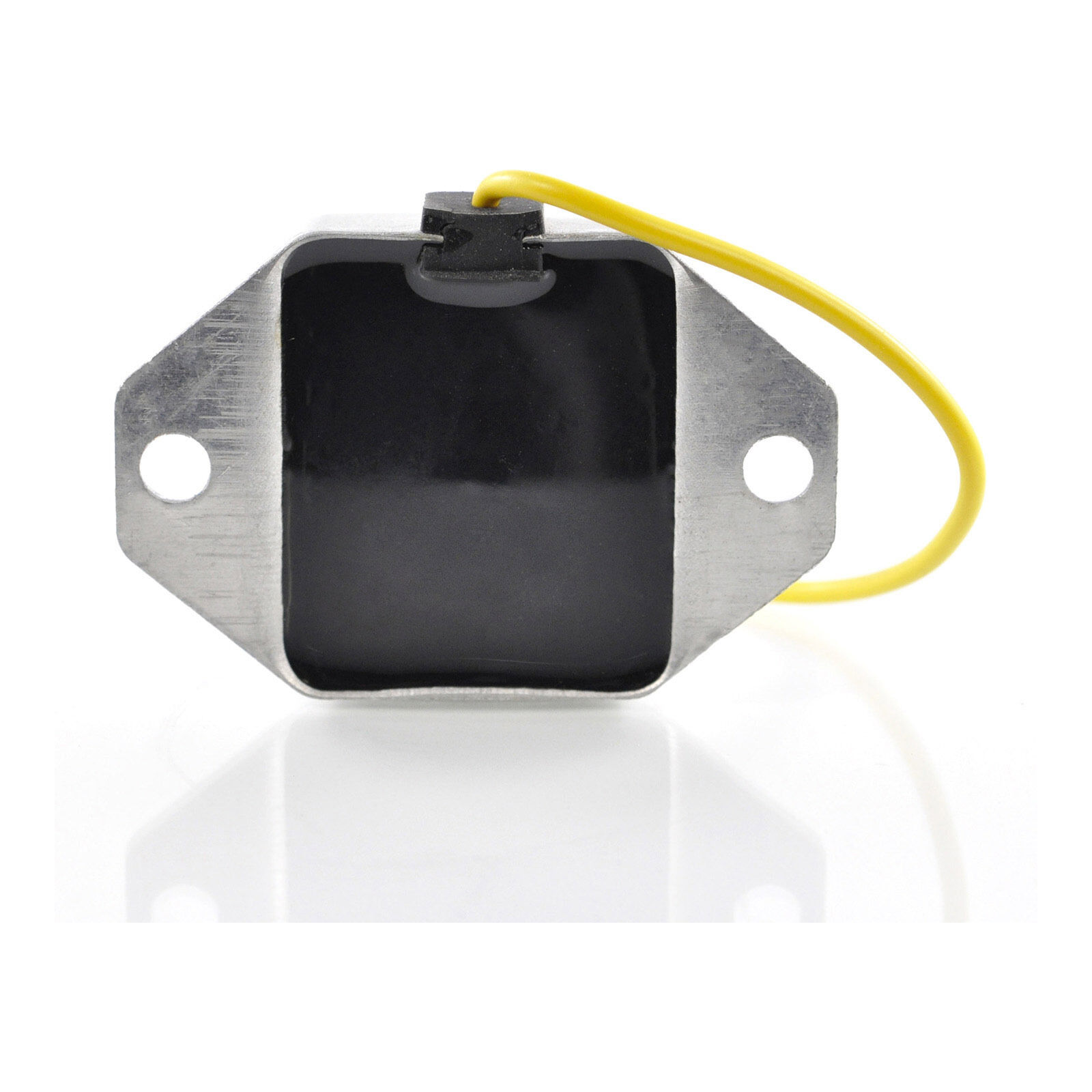

Please note : One wire will be grounded to the rectifier body

Before installing your new regulator/rectifier:

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

(RMS30Y15_31)

SKU RMS30Y15_31
Barcode # 9420060000000
Brand RMStator
Unit Of Measure ea
