Re-install your original connector and grommet. Once your connector and grommet is re-installed our part becomes a plug-and-play unit direct fit and very easy to install.

Features:

  • Higher grade of electric components.
  • Highest grade of copper winding resistant to 200 degrees Celsius.
  • All shipped products are tested.

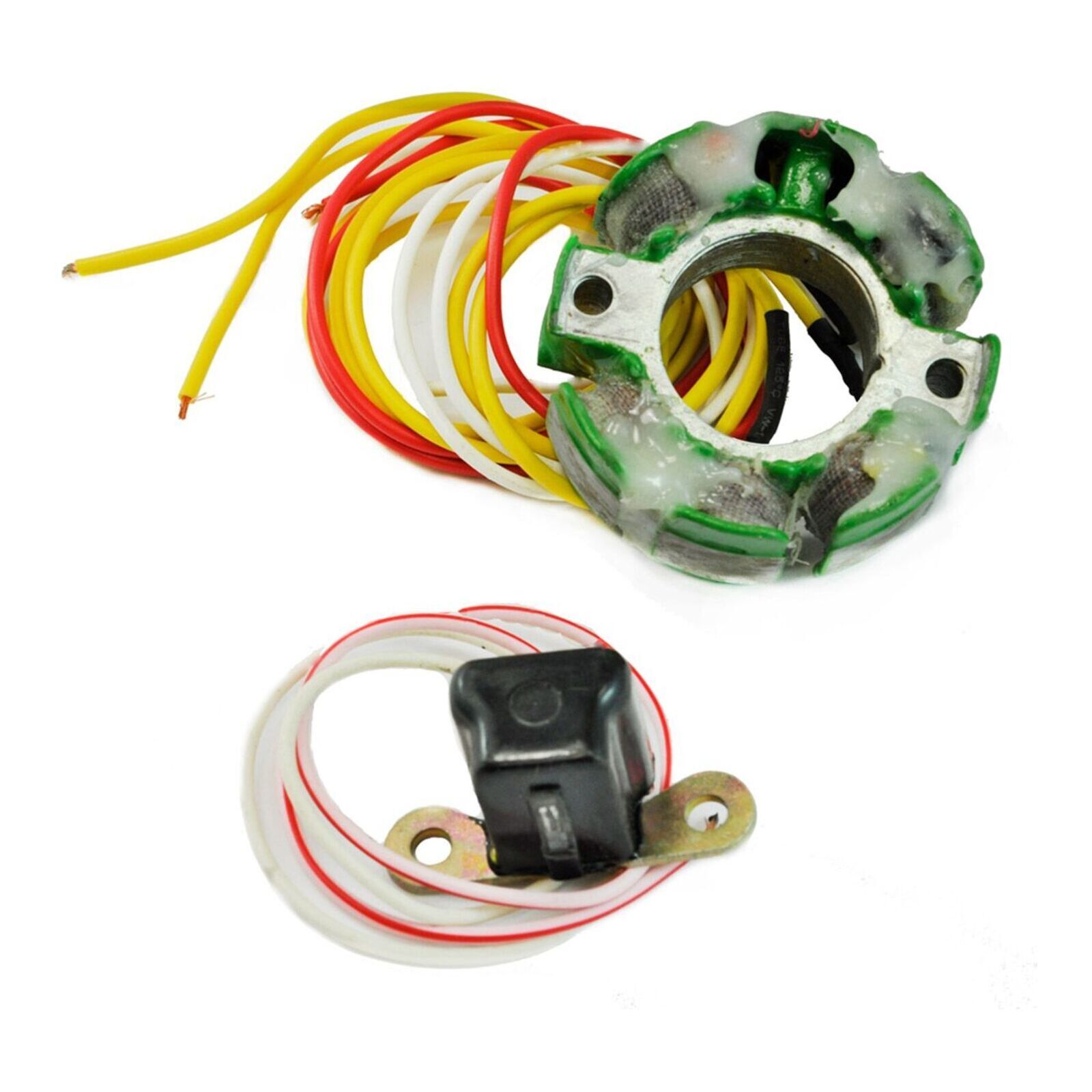

Dimensions - Stator:

  • Interior diameter: 28mm
  • Exterior diameter: 57mm
  • Thickness: 15mm
  • Length of wires (stator to terminals): 600mm

Other Specifications:

  • Number of wires: 4
  • Number of plugs: 0
  • Number of terminals: 4

Wire-to-Wire Resistance:

  • Source 1: Red to White = 28 ohms ± 20%
  • Source 2: Yellow to Yellow = 0.4 ohms ± 20%

Dimensions - Pickup Pulsar Coil:

  • Height: 25mm
  • Length: 22mm
  • Width: 18mm
  • Bracket (centre to centre): 35mm
  • Wires length: 90mm

Other Specifications:

  • Number of wires: 2
  • Number of pins: 2

Wire-to-Wire Resistance:

  • Pink/Red to White: 100 ohms ± 20%

(RMS22843)

SKU RMS22843
Brand RMStator
Unit Of Measure each
