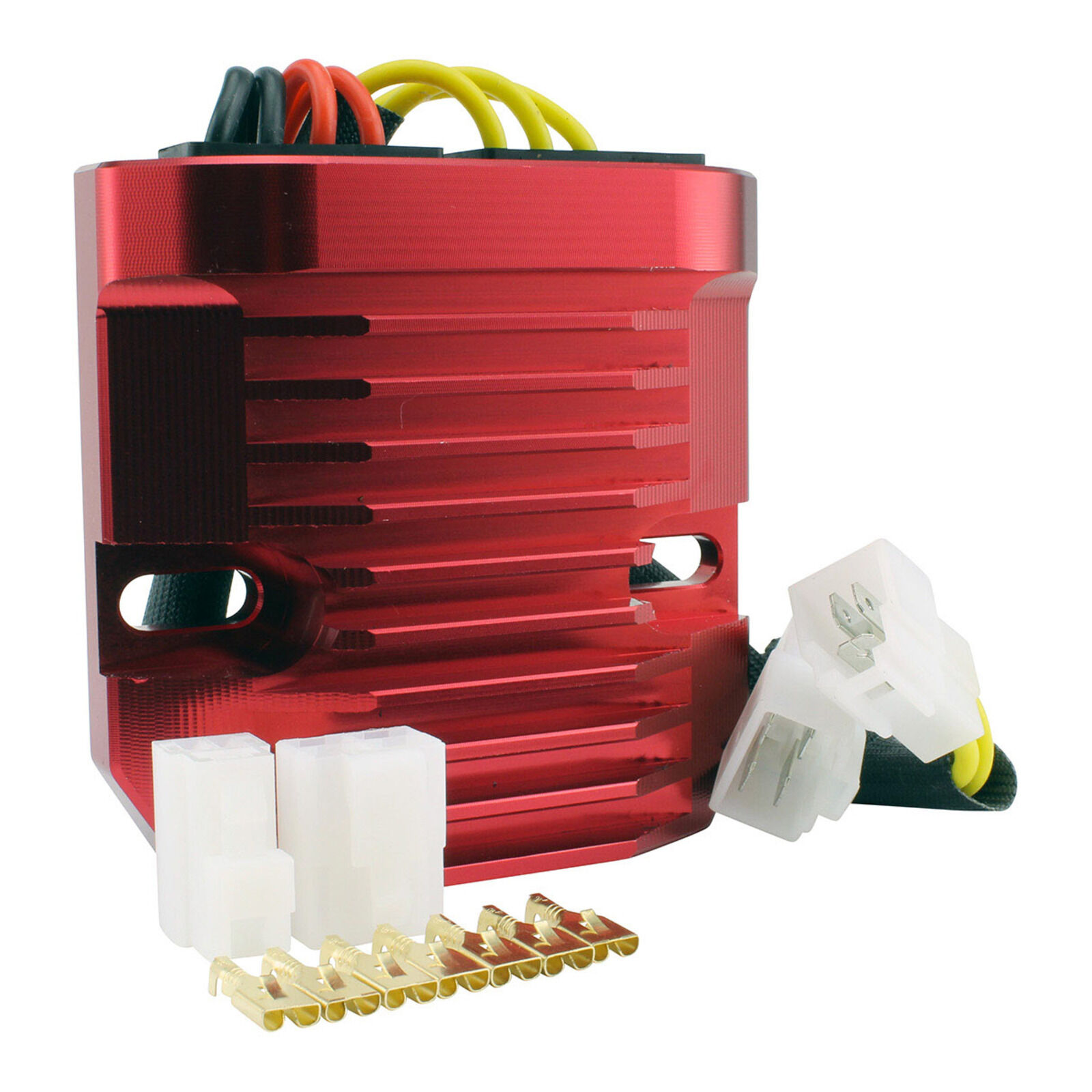

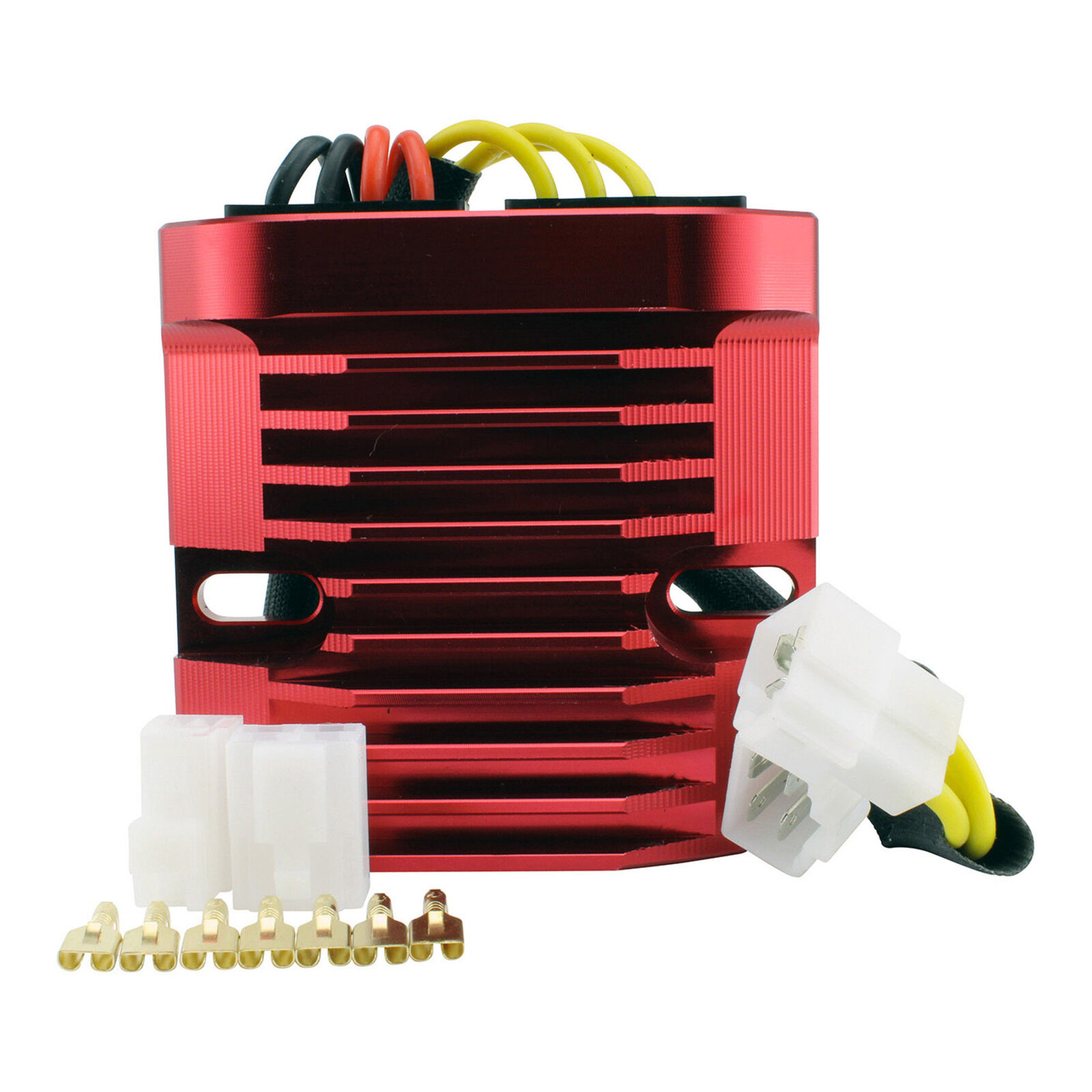

RMStator Mosfet Voltage Regulator Rectifier for 2007 Ducati 1098

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Runs cooler - Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas - Less load on the stator, less work, less fuel is used and you save.
Regulated energy - The power charging your battery is steadier and smooth.
Extended battery life - Extends the batterys life and cold cranking capacity.
More engine power - Removes stator load resulting in more engine power.
Optimized power - Optimize power delivery by switching the stator coils on or off.

Dimensions:
Width: 90 mm
Length: 94 mm
Height: 30 mm
Wires length: 320 mm & 235 mm
Fixation holes center to center: 79 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM equipment
Improved heat sink and charging capabilities
Higher grade of electric components
All shipped products are tested

Before installing your new regulator/rectifier:
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connector

TRIUMPH
Please note that there are multiple regulators for some Triumph vehicles. Please refer to the note below to make sur you purchase the right part.

Daytona 675 from 2006-2002 : This part will only fit on Daytona 675 with a VIN BETWEEN 403974 and 564947. For vehicles with a LOWER VIN than 381274, refer to part # RM30104 and for VIN HIGHER than 564948, refer to OEM # T1300048.

Daytona 955I from 1997 to 2006 : This part will only fits on vehicle with a VIN HIGHER than 132513. For vehicles with a VIN LOWER than 132512, Please refer to OEM # T1300021.

Speed Triple 1994 to 2018 : This part will only fit on Street Triple with a VIN BETWEEN 141872 and 210444. If your vehicle has a VIN between 210445 and 461331, please refer to OEM T1304045. If your vehicle has a VIN between 461332 and 499573 and a non ABS version, refer to OEM T1300165. If your vehicle has a VIN between 461332 and 499956 and a ABS version, refer to OEM T1301564. If you vehicle has a VIN higher than 499574 and a Non ABS version or higher than 499957 and a ABS version, refer to part # RM30506 / RM30506H / RMS022-105928 / RMS023-106203 / RMS023-107140. If you vehicle has a VIN lower than 141871, please refer to OEM T1300021. If your vehicle has a carburator, please refer to part # RM31000.

Sprint ST 2019-2020 : This part will only fit on Sprint ST with a VIN HIGHER than 523250. For VIN up to 139276 refer to OEM T1300021, for VIN between 139277 and 208166 refer to OEM T1305383, for VIN between 208167 and 354280 refer to OEM T1300095 and for VIN between 354281 and 523249 refer to part # RM30405 or RMS020-103436.

Please compare your original part before purchasing.
