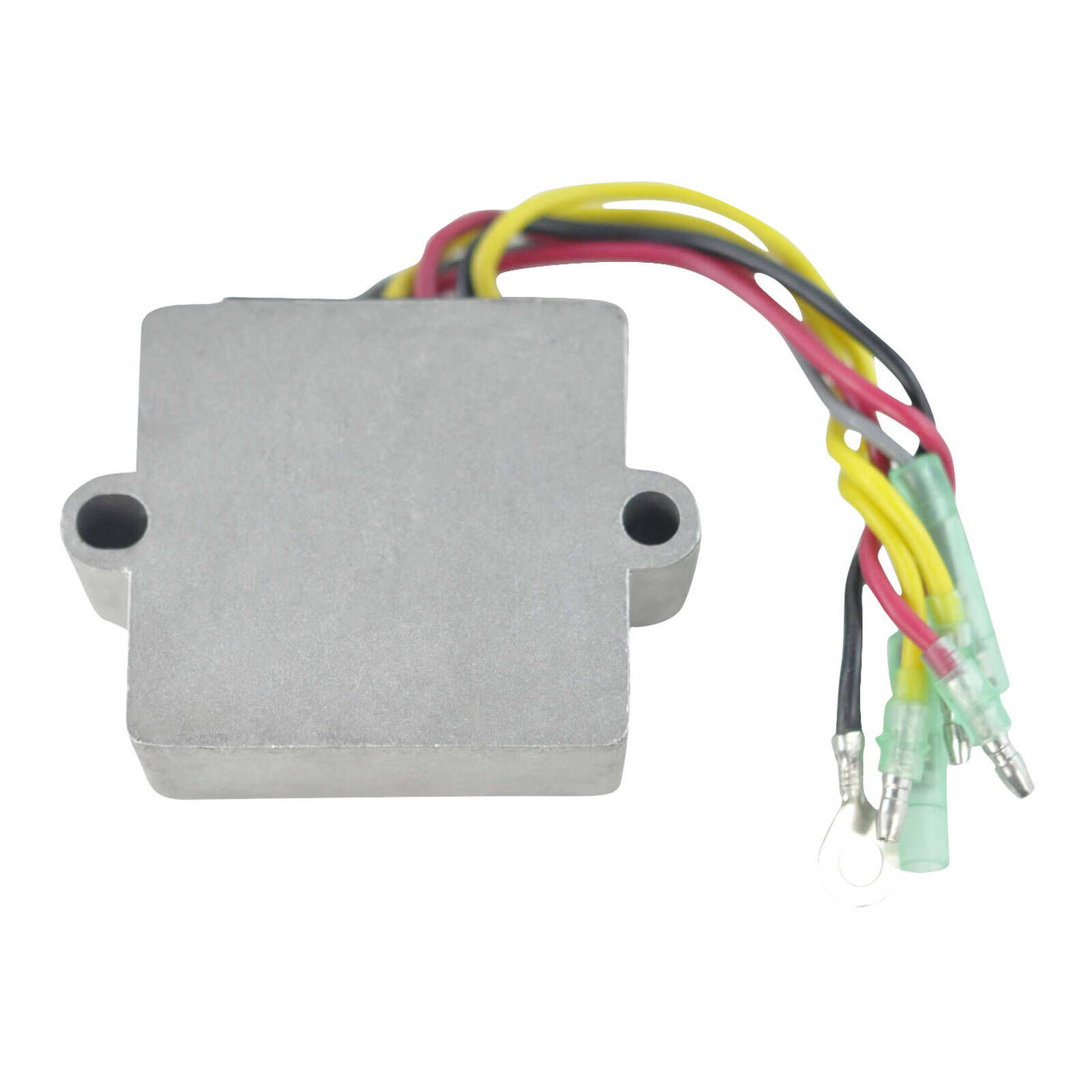

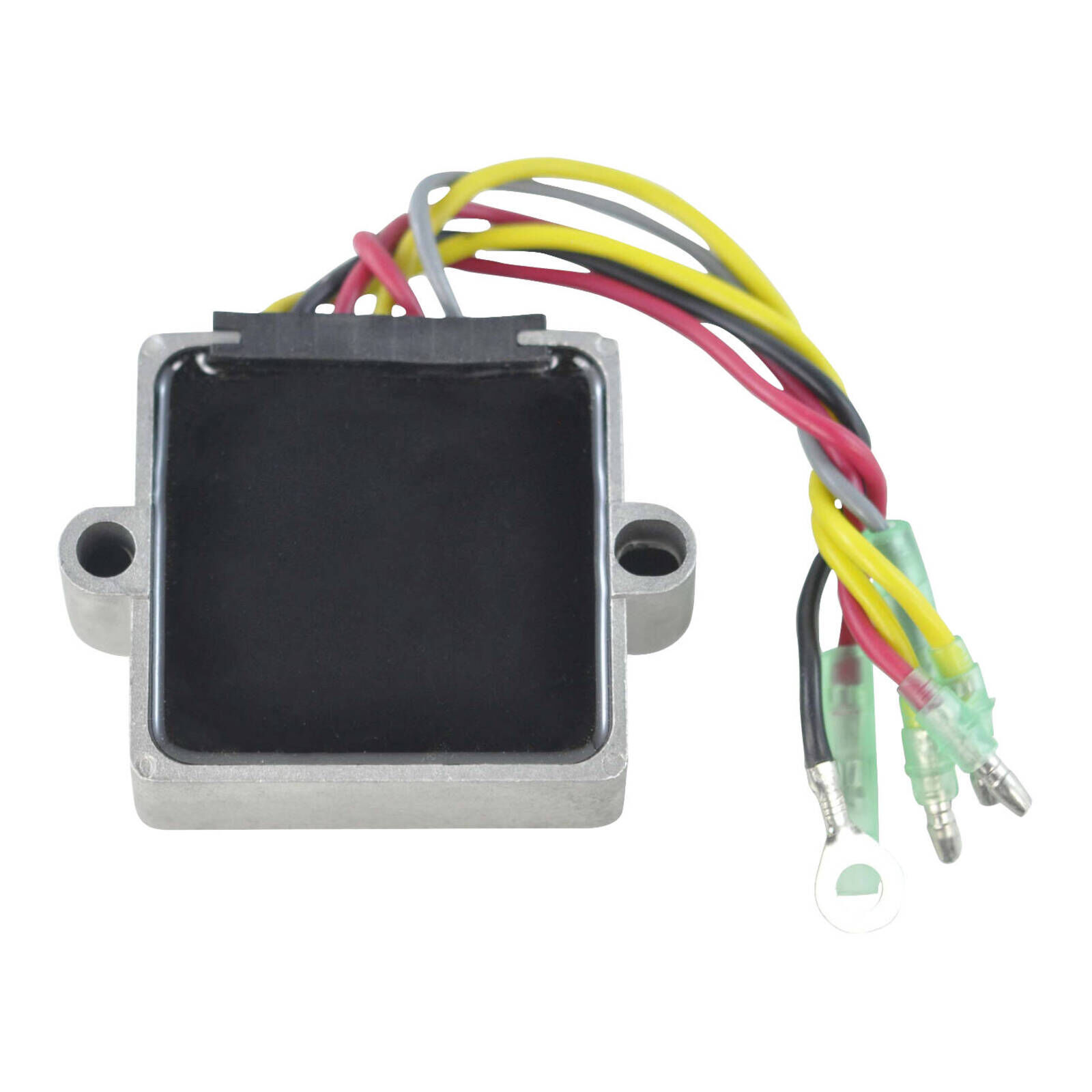

Stop burning your regulator rectifier! It is time to update or replaceyour voltage regulator with the advanced MOSFET type.

This productis an advanced design that lowers operating temperatures for extendedlongevity and better performance than the OEM part.

It runs coolerthan all OEM diode-style regulators. In addition this rectifier hasoverheat protection rather than burn up it will simply turn off for awhile and cool off.

  • Direct replacement to your originalunit
  • Plug-and-play direct fit easy installation
  • Thequality exceeds the OEM equipment
  • Higher grade of electriccomponents
  • All shipped products aretested

Specifications:

  • Dimensions:
    • Width: 66 mm
    • Length: 63 mm
    • Height:25 mm
    • Fixation holes centre to centre: 65 mm
    • WiresLength: 156 mm
  • Number of plugs: 6
  • Numberof pins: 6
  • Number of wires: 6
  • Minimum Charging Voltage:14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500W
  • Open Circuit Voltage: < 15 V
  • OperationTemperature: -20° to 85°

(RMS30430_11)

SKU RMS30430_11
Brand RMStator
Unit Of Measure each
