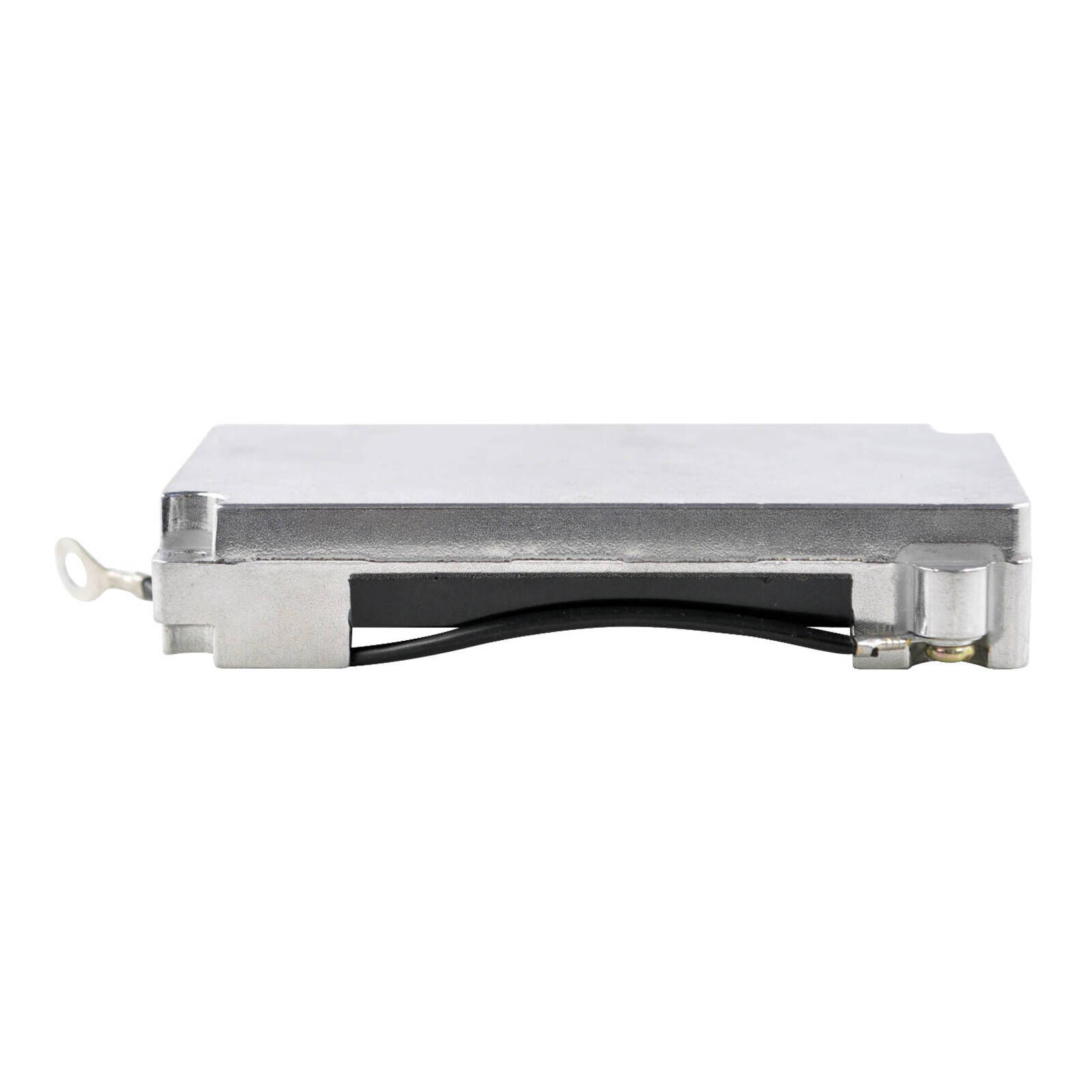

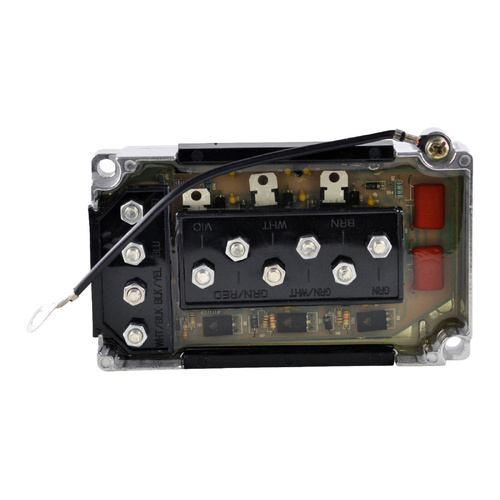

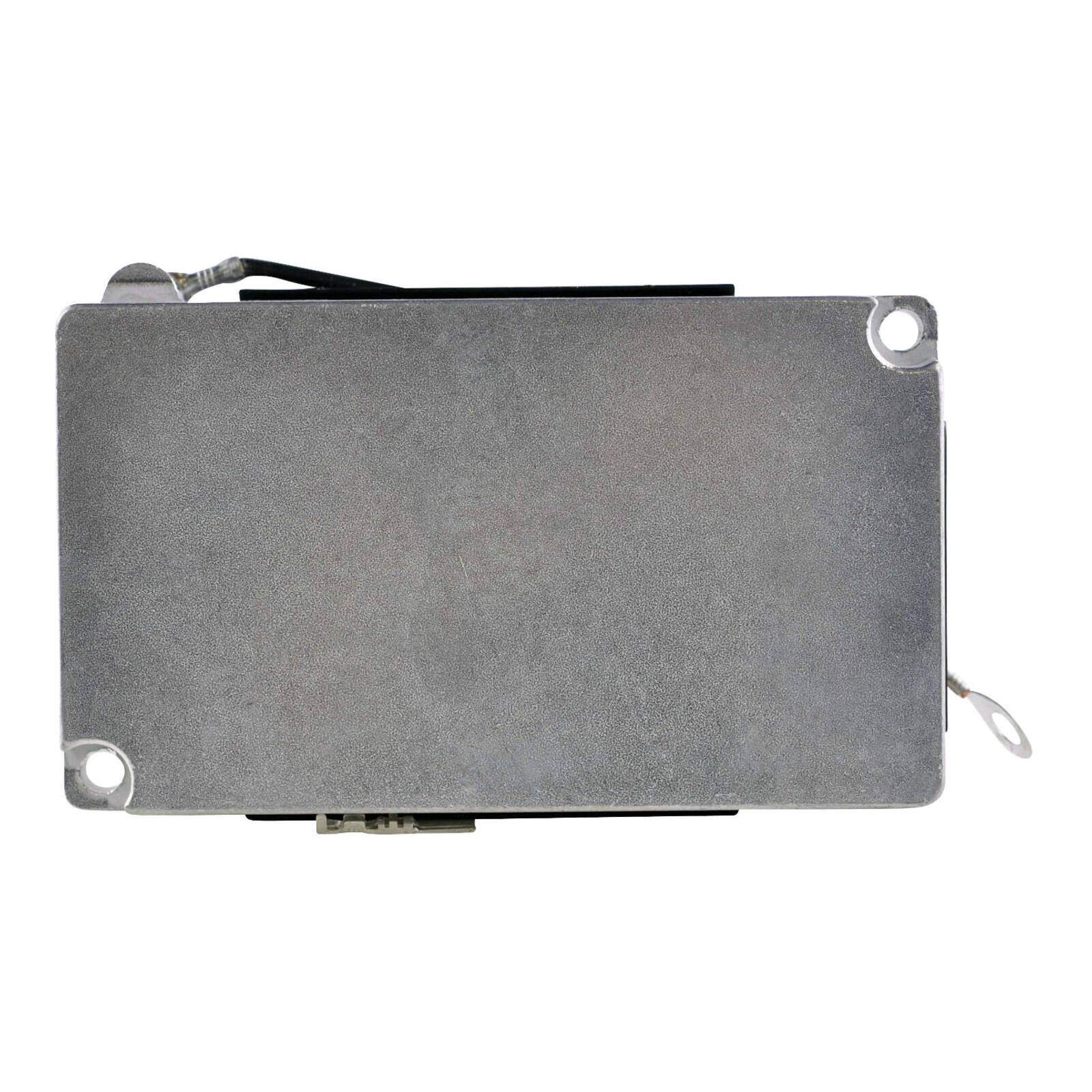

Plug-and-play aftermarket replacement CDI box for Mercury outboardmotors from RM Stator. Refer to fitment guide formodels.



Dimensions:

  • Width:79mm
  • Length: 136mm
  • Height: 26mm
  • Fixation holes centre to centre:143mm



Installation:

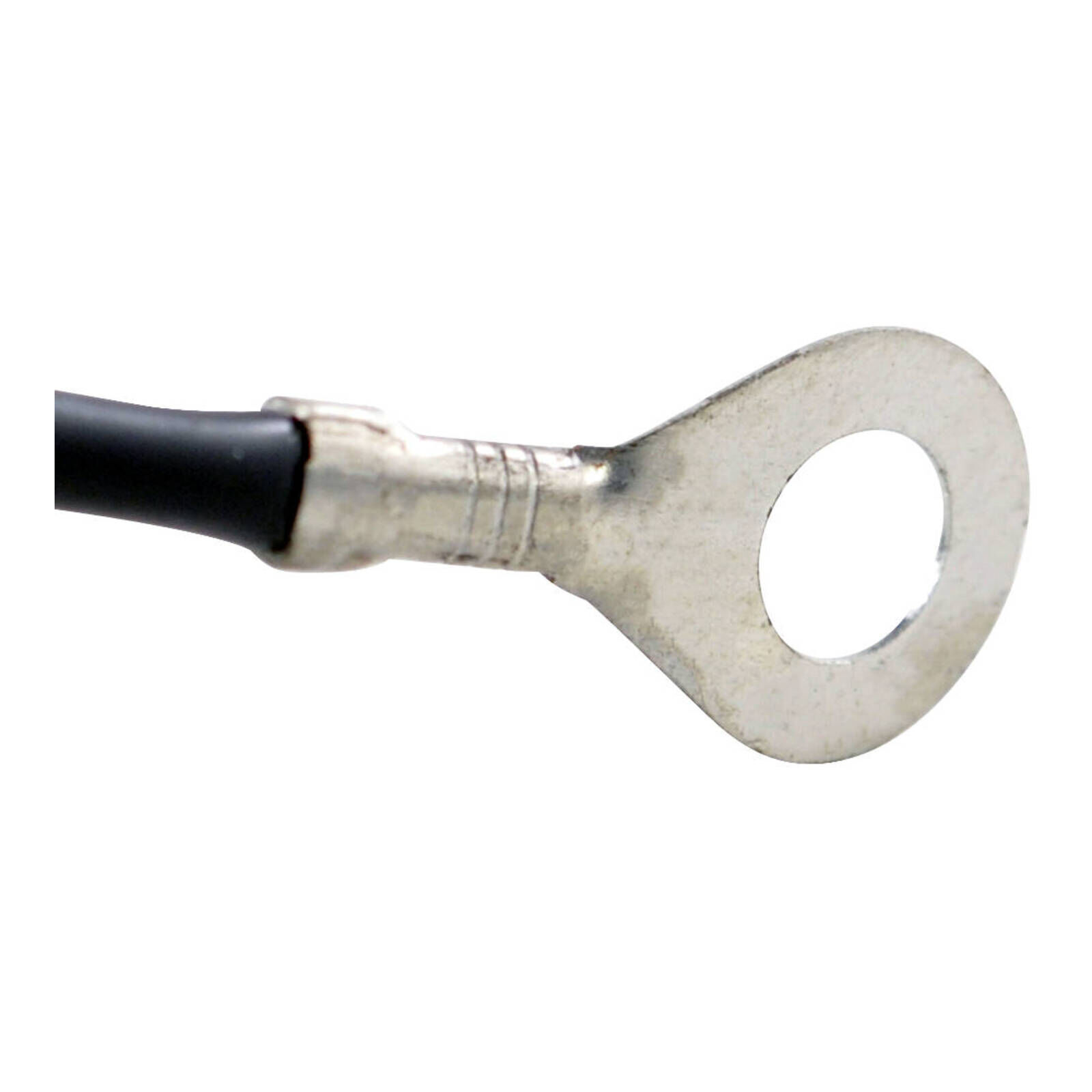

  • Ifthe Black Ground Wire is Not Already Connected to the CDI Box fasten toOne of the 4 Mounting Holes on the Outside of the Box
  • Fasten theOther End of This Black Wire to a Good Ground Spot on theEngine.
  • If the Engine Uses an Orange Colored Lead That is Connectedto the Box Connect This to the Black/Yellow Stud on the NewBox.

(RMS030100048_3)

SKU RMS030100048_3
Barcode # RMS030-100048
Brand RMStator
Unit Of Measure each
