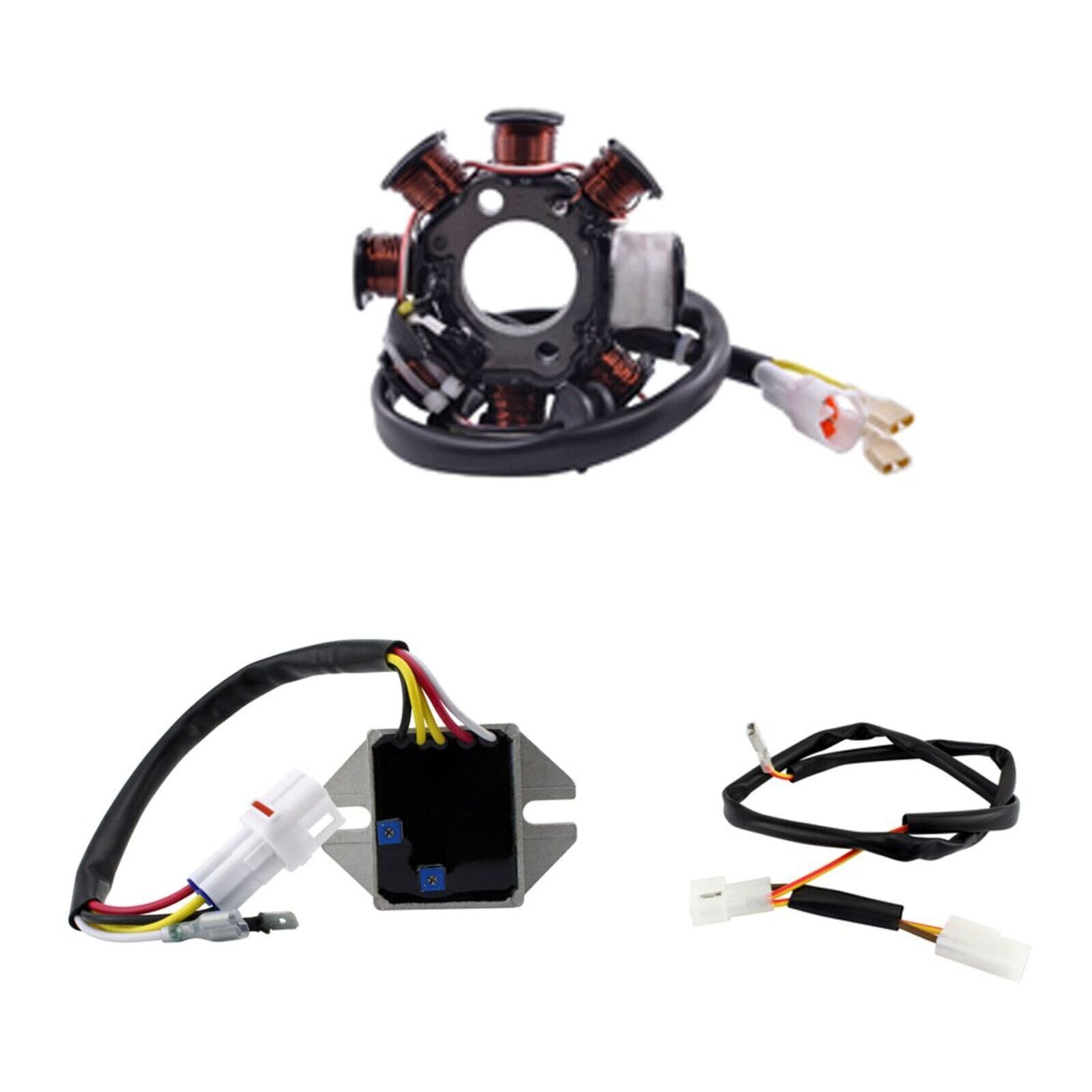

100W DC Converted Kit Stator + Voltage Regulator + Harness

• 100 Watt DC charging system
• Replace the OEM stator with 100W high output stator
• Convert your AC system into a high power DC one
• All products shipped are tested

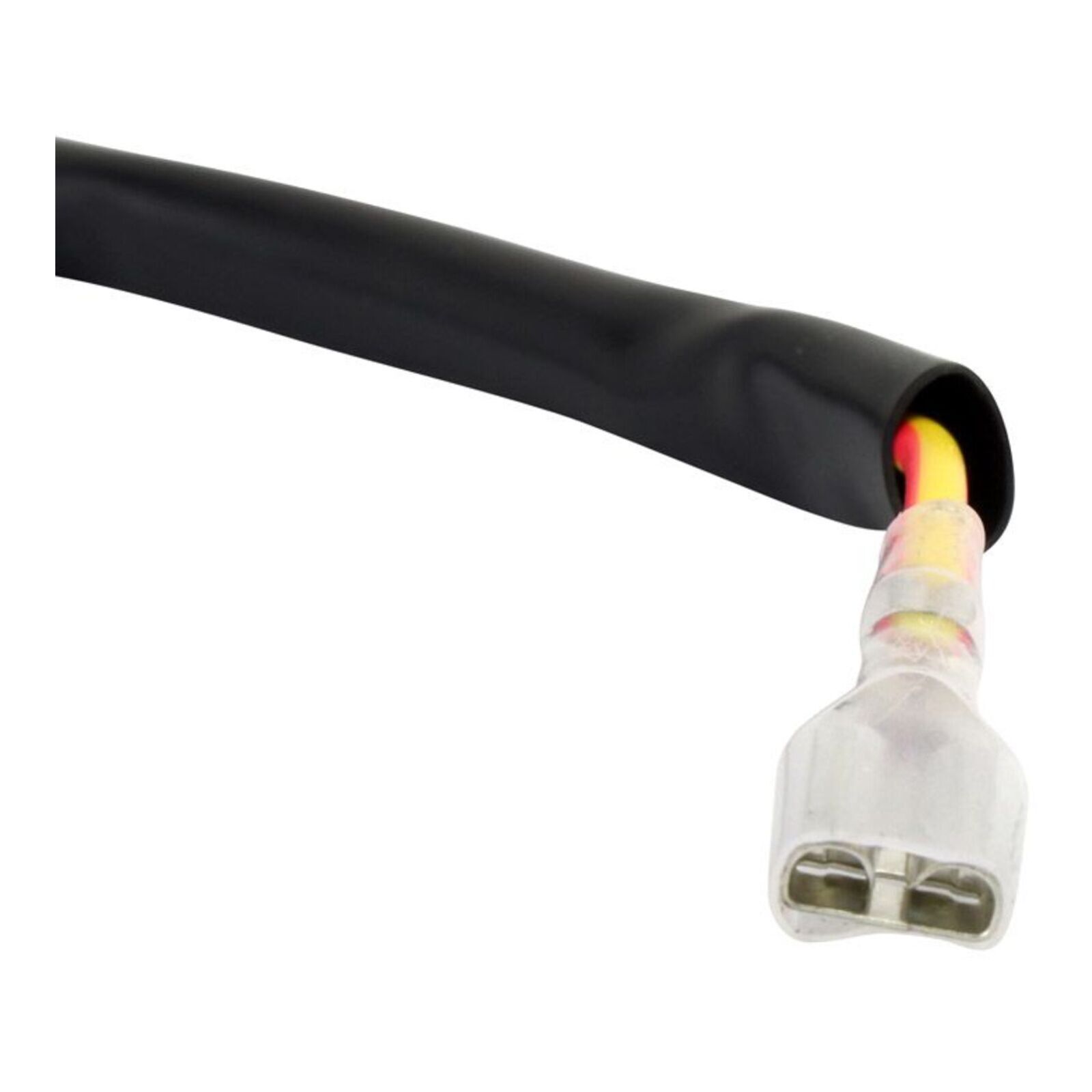

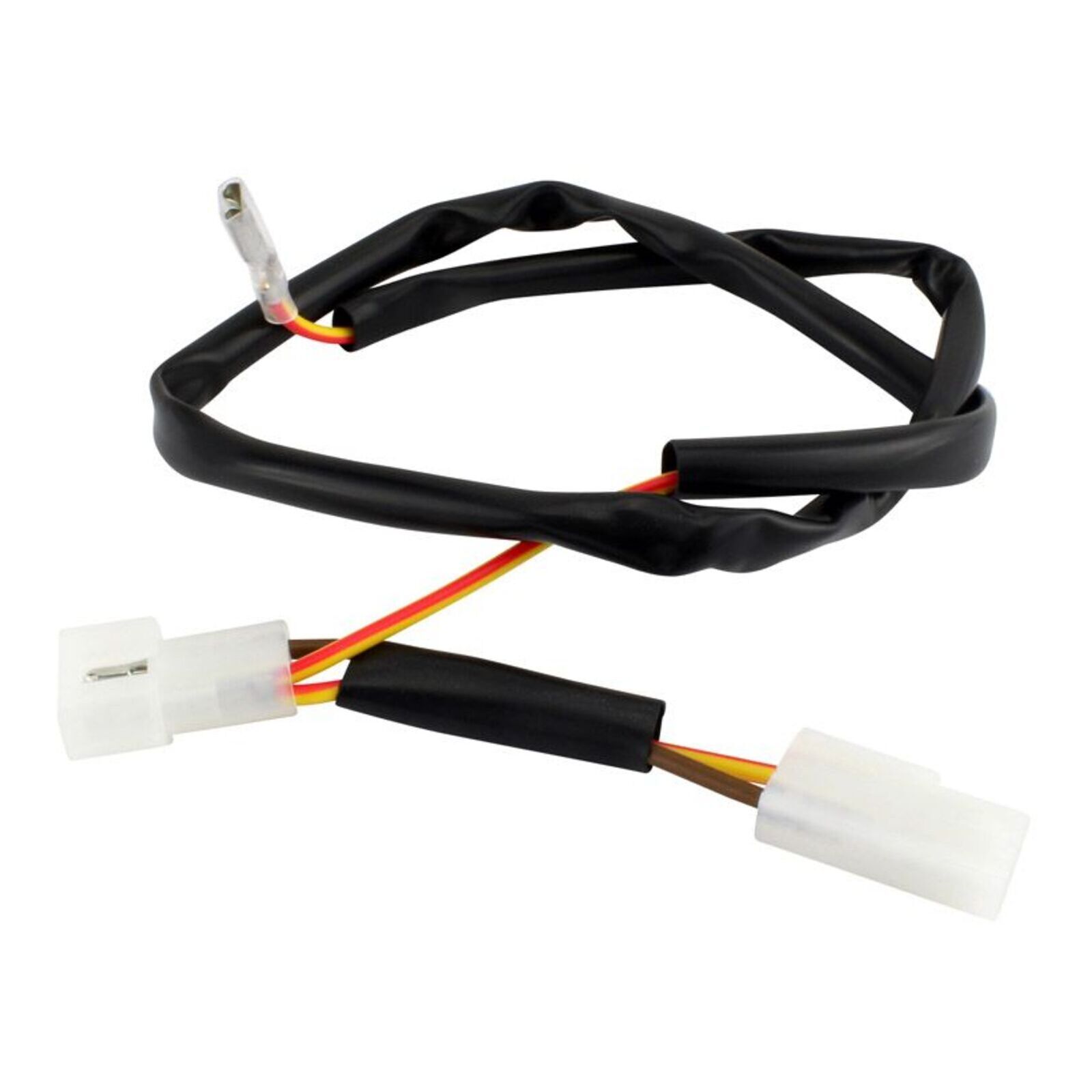

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate if in doubt do not hesitate and compare our item to your original part.

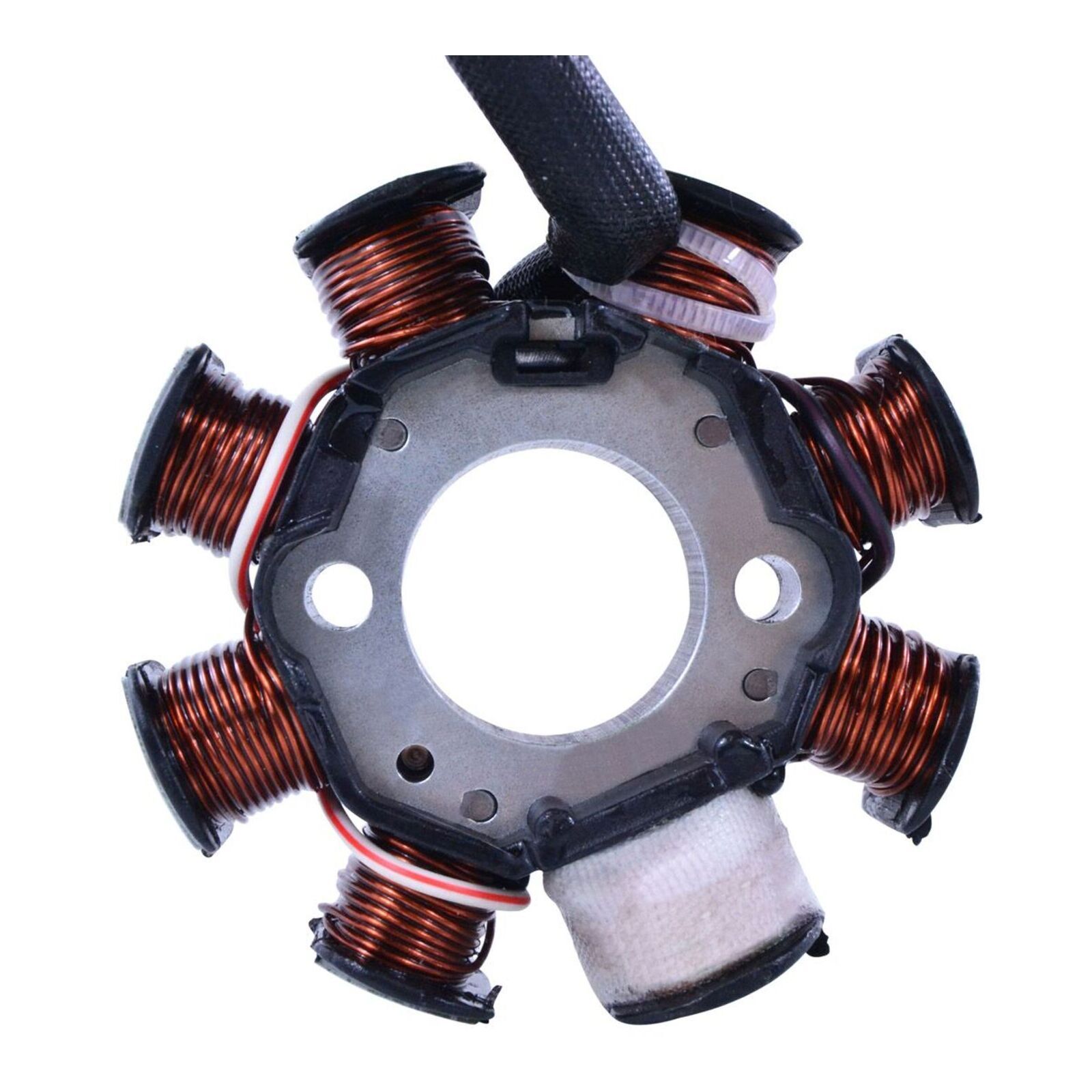

Brand new aftermarket Stator

• Highest grade of lamination materials
• Highest grade of copper winding resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included

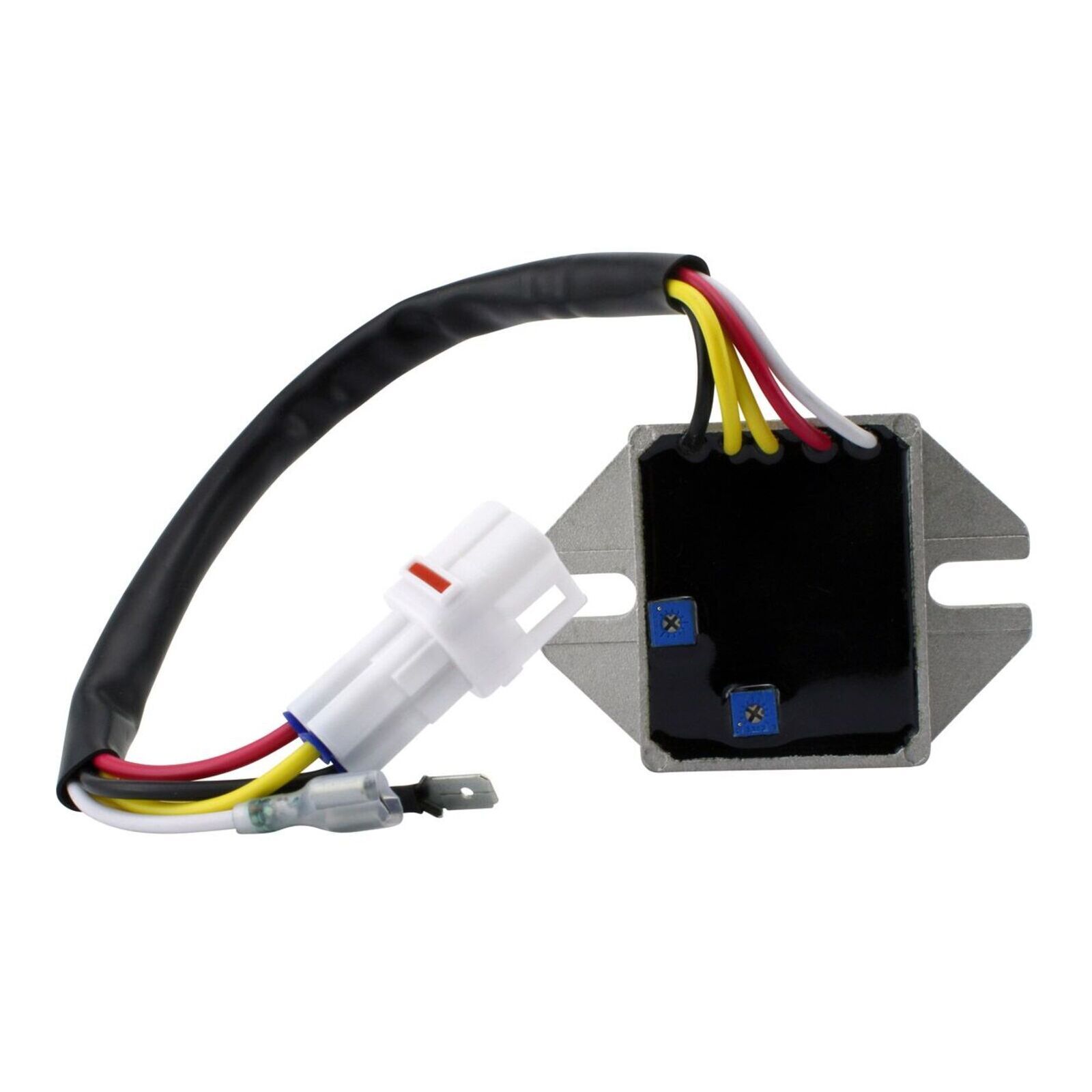

Brand new aftermarket Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

Stator Specifications:

Dimensions:

Interior diameter: 29 mm
• Exterior diameter: 83 mm
• Thickness: 13 mm
• Length of wires stator to grommet: 60 mm
• Length of wires grommet to plug: 490 mm

Other specifications:

• Number of wires: 4
• Number of plugs: 3
• Number of pins: 4
• Number of poles: 8
• Wire to wire resistance:
  • Alternator: White to Yellow = 0.5 ohms +-20%
  • Source: Black/Red to Red/White = 30 ohms +-20%

Regulator Rectifier Specifications:

• Width: 54 mm
• Length: 80 mm
• Height: 22 mm
• Wires length: 235 mm
• Distance between fixation holes center to center: 65 mm

Before installing your new Stator:

• Check the AC output of the stator
• Replace any b
