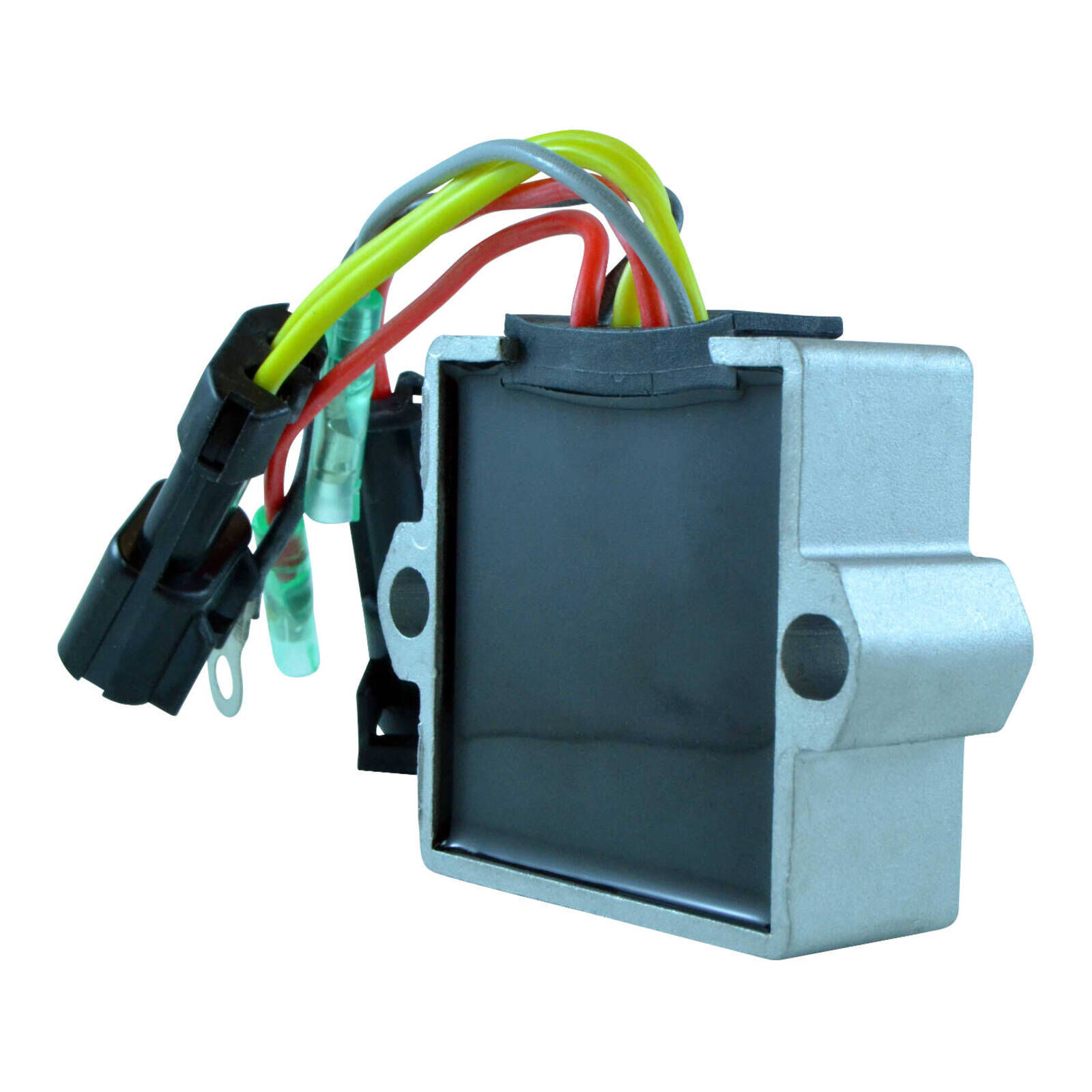

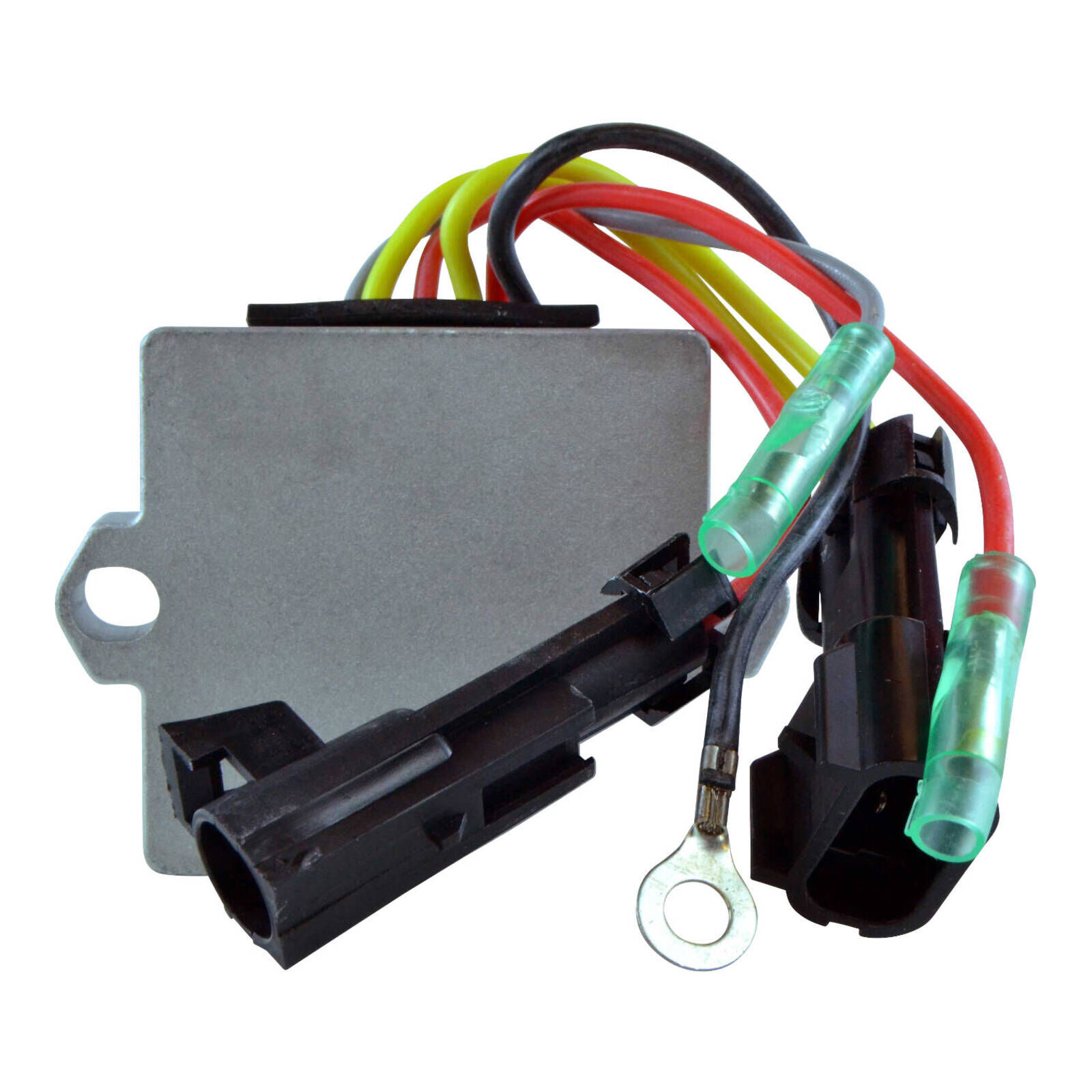

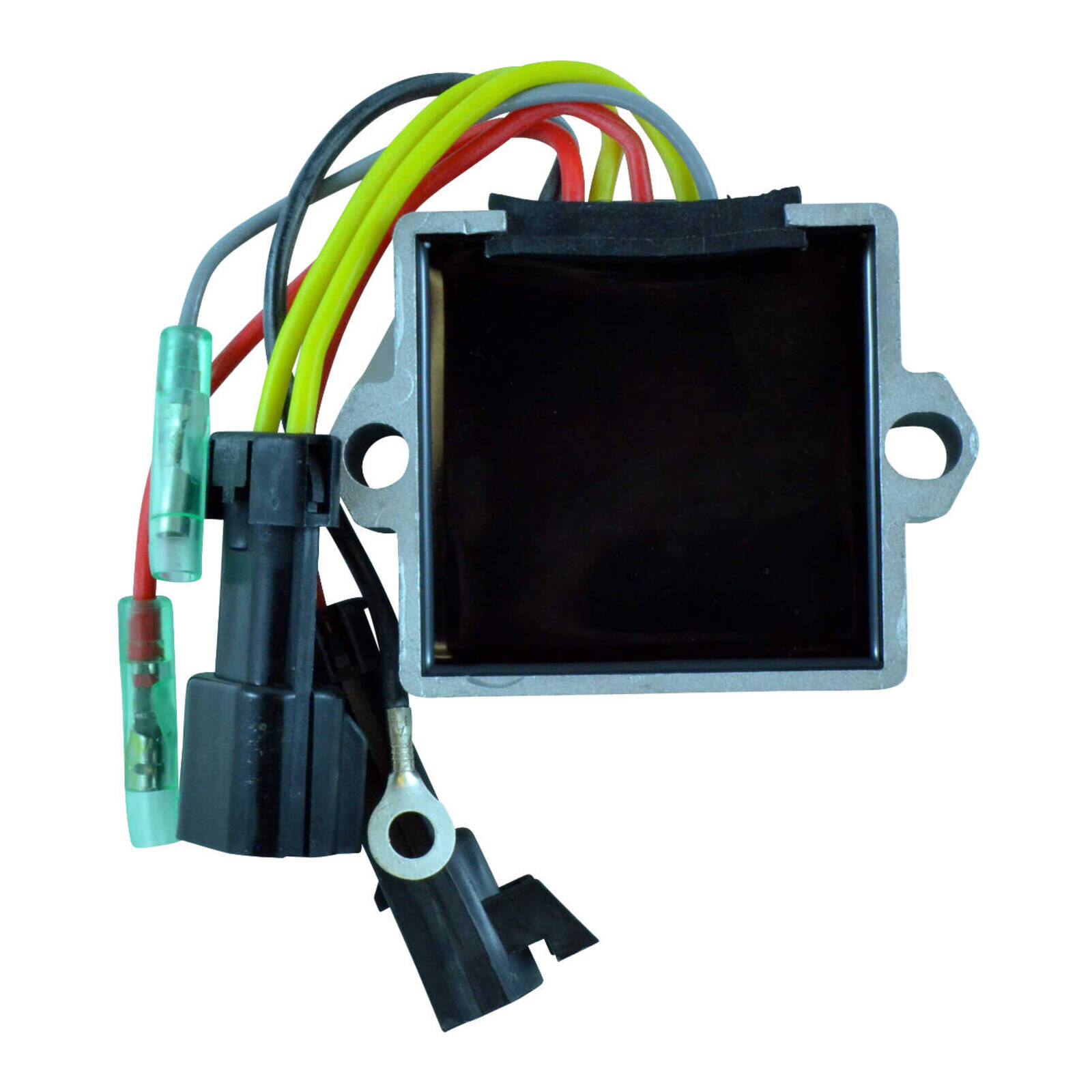

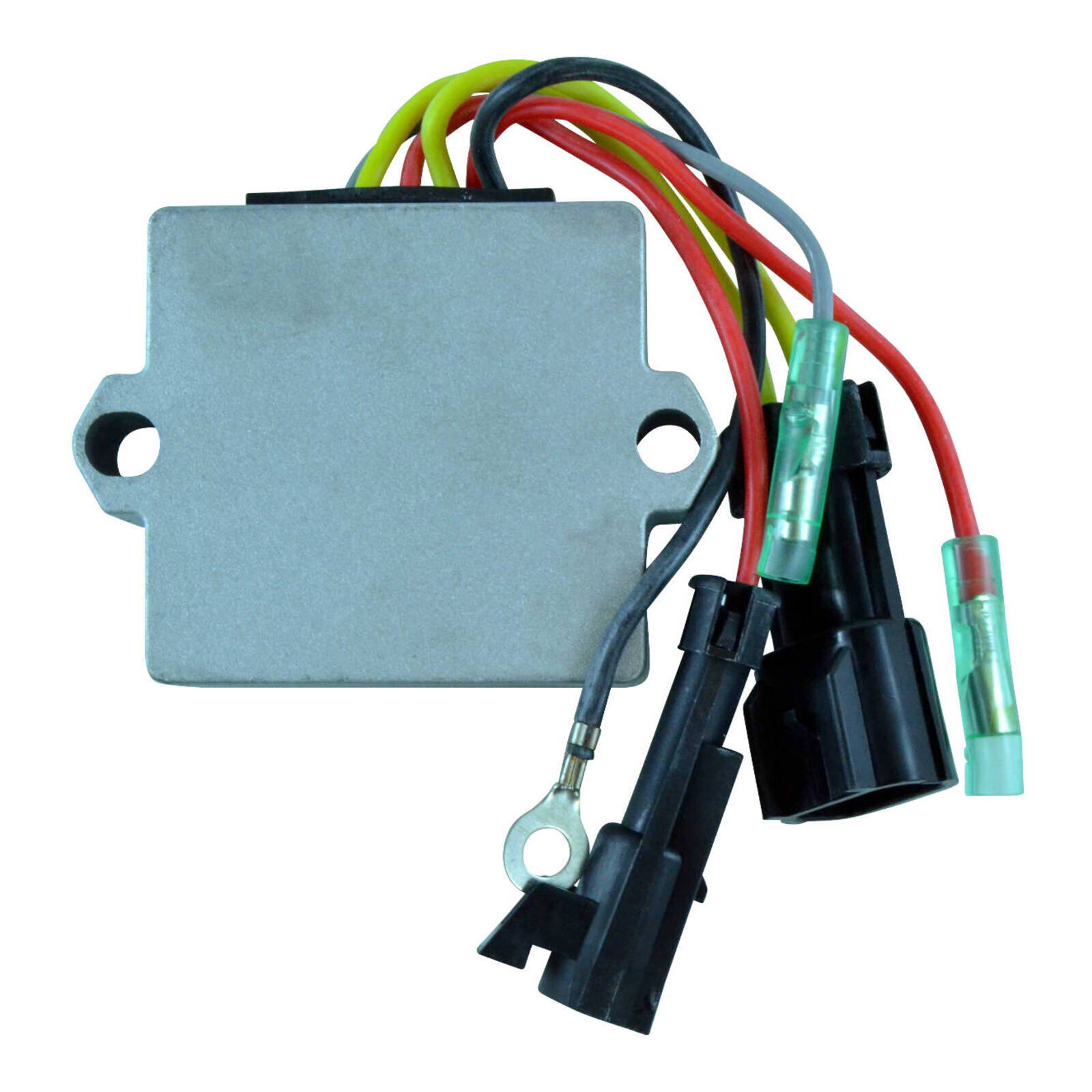

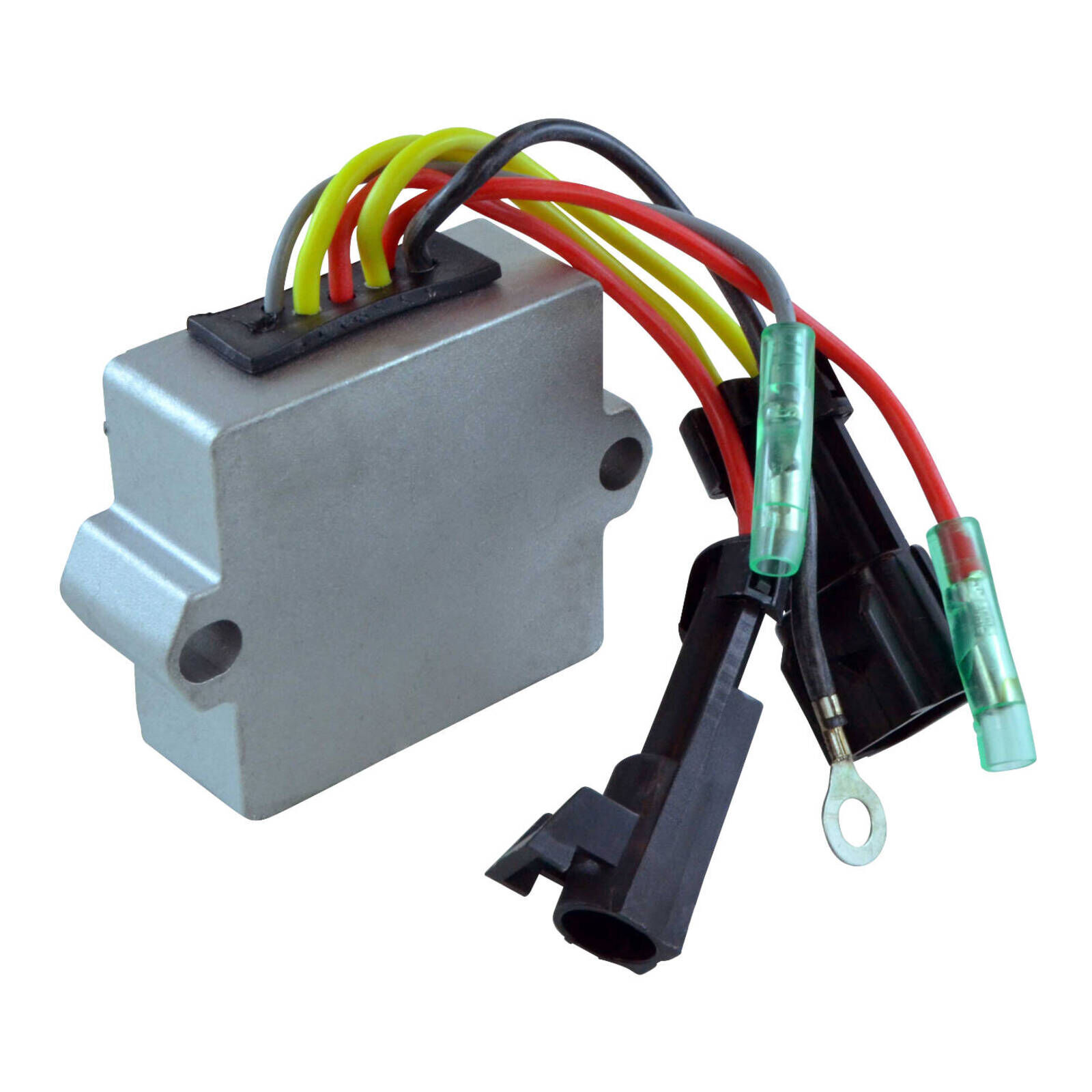

Plug-and-play aftermarket replacement voltage regulator rectifierfrom RM Stator. Refer to fitment guide formodels.



Dimensions:

  • Width:65mm
  • Length: 65mm
  • Height: 25mm
  • Stator wires length:140mm
  • Battery wireslength: 160mm



Otherspecifications:

  • Number of wires: 6
  • Number ofplugs: 5
  • Number of pins: 6
  • Minimum Charging Voltage: 14.5V+- 0.5V
  • Maximum Charging Current: 50A/500W
  • Open CircuitVoltage: 15V
  • Operation Temperature: -20° to85°



Details:

  • Directreplacement to your original unit.
  • Plug-and-play direct fit easyinstallation.
  • No assembly required
  • Higher grade of electriccomponents.
  • The quality exceeds the OEM equipment
  • Allproducts shipped are tested

(RMS020104385)

SKU RMS020104385
Barcode # RMS020-104385
Brand RMStator
Unit Of Measure each
