This product is an advanced design that lowers operating temperaturesfor extended longevity and better performance than the OEMpart.

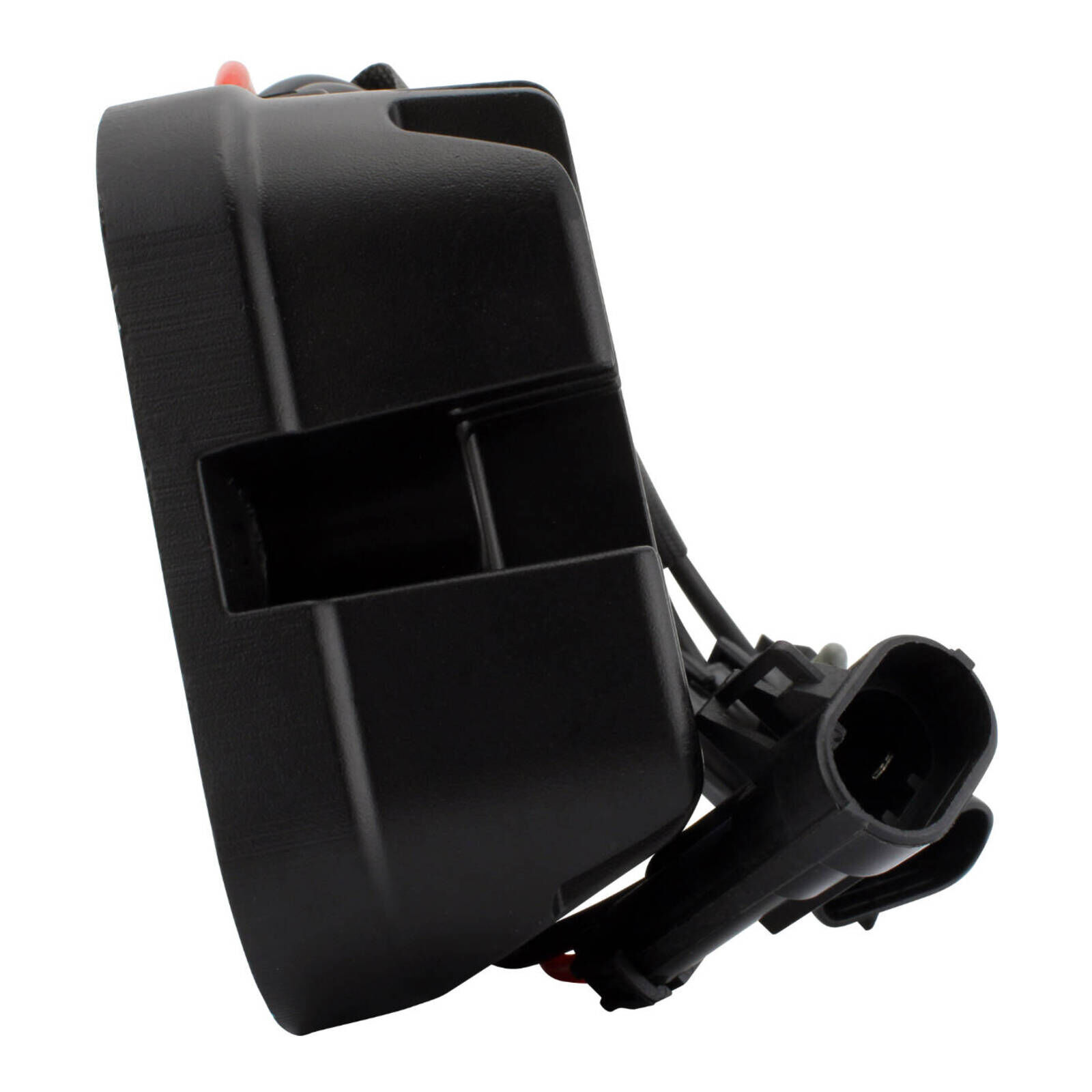

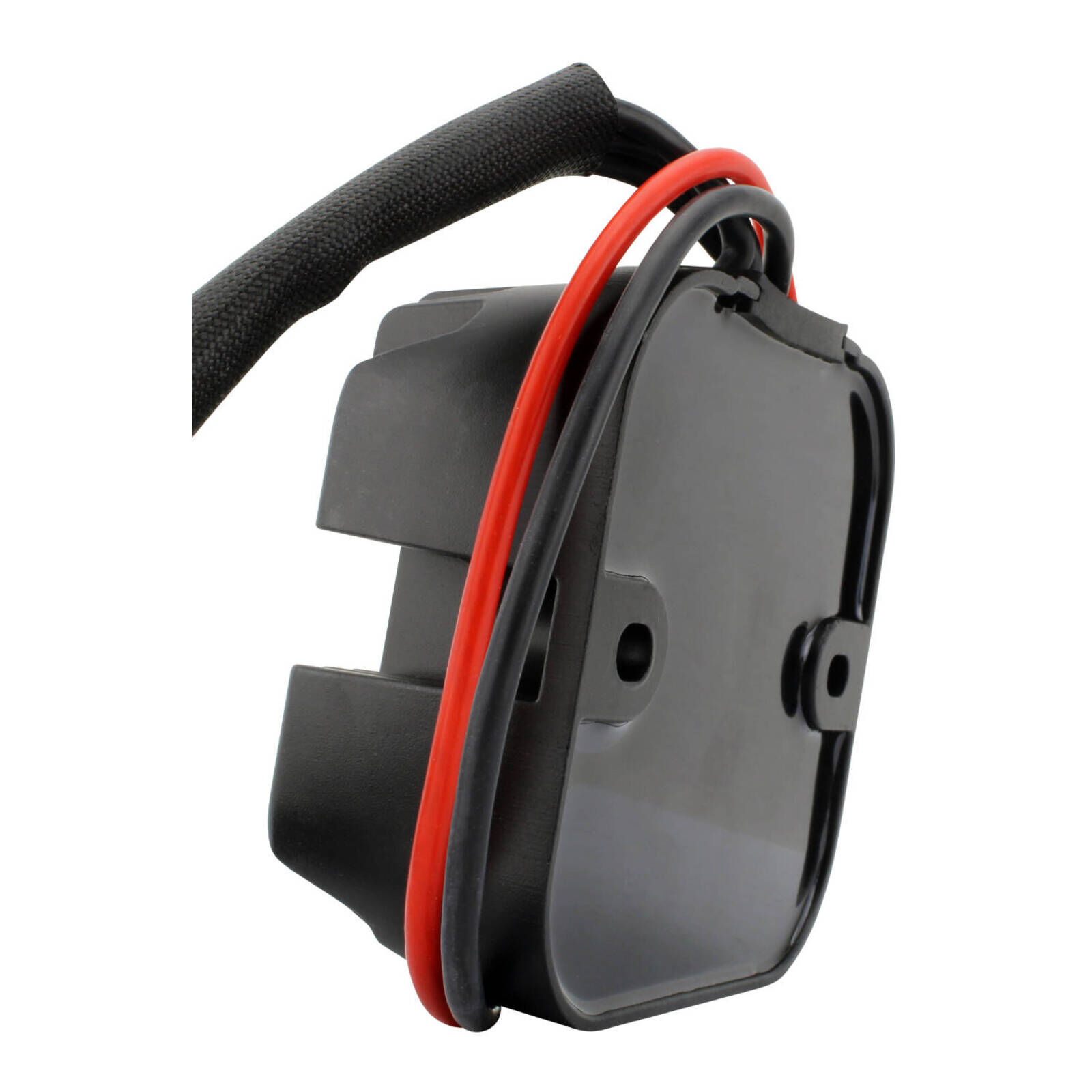

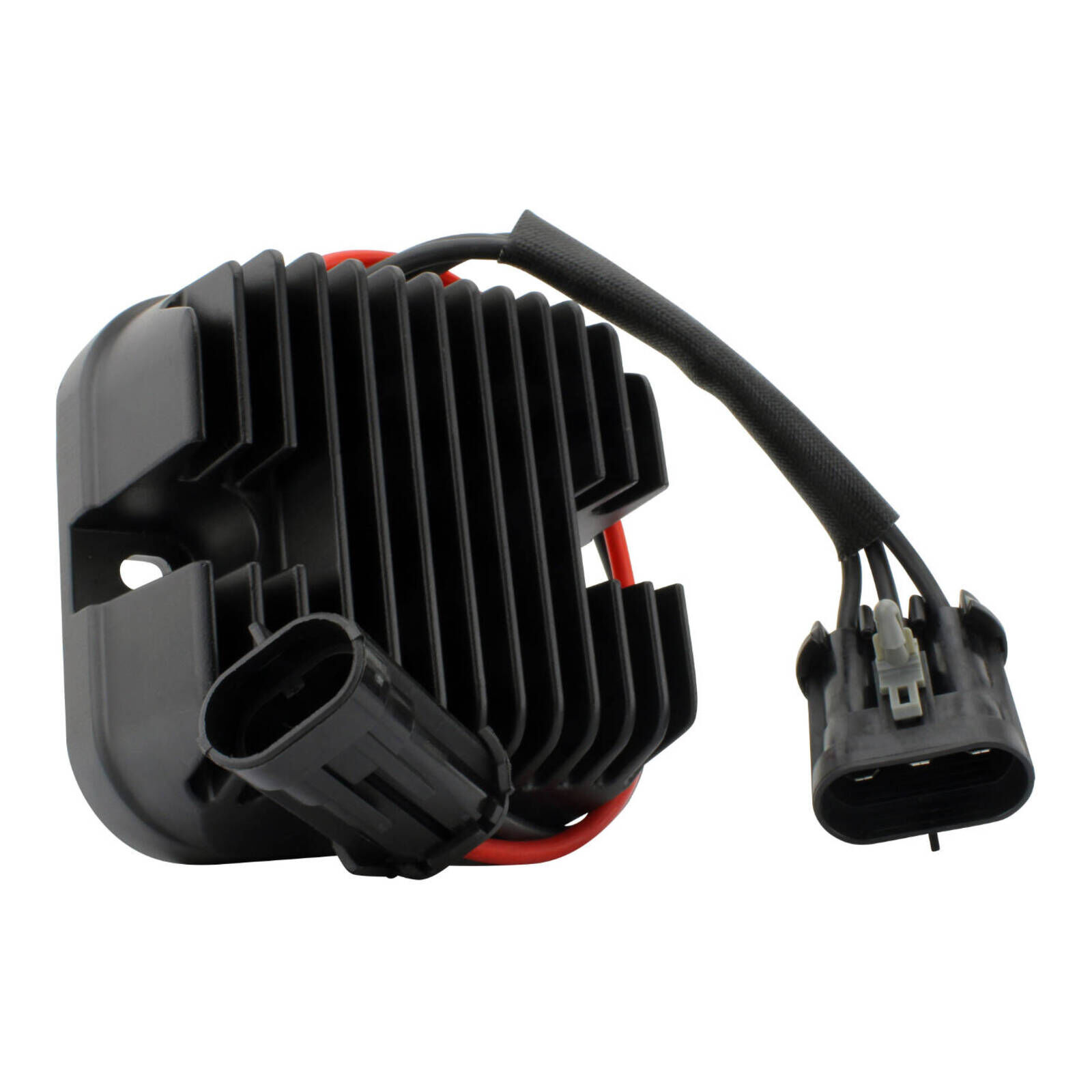

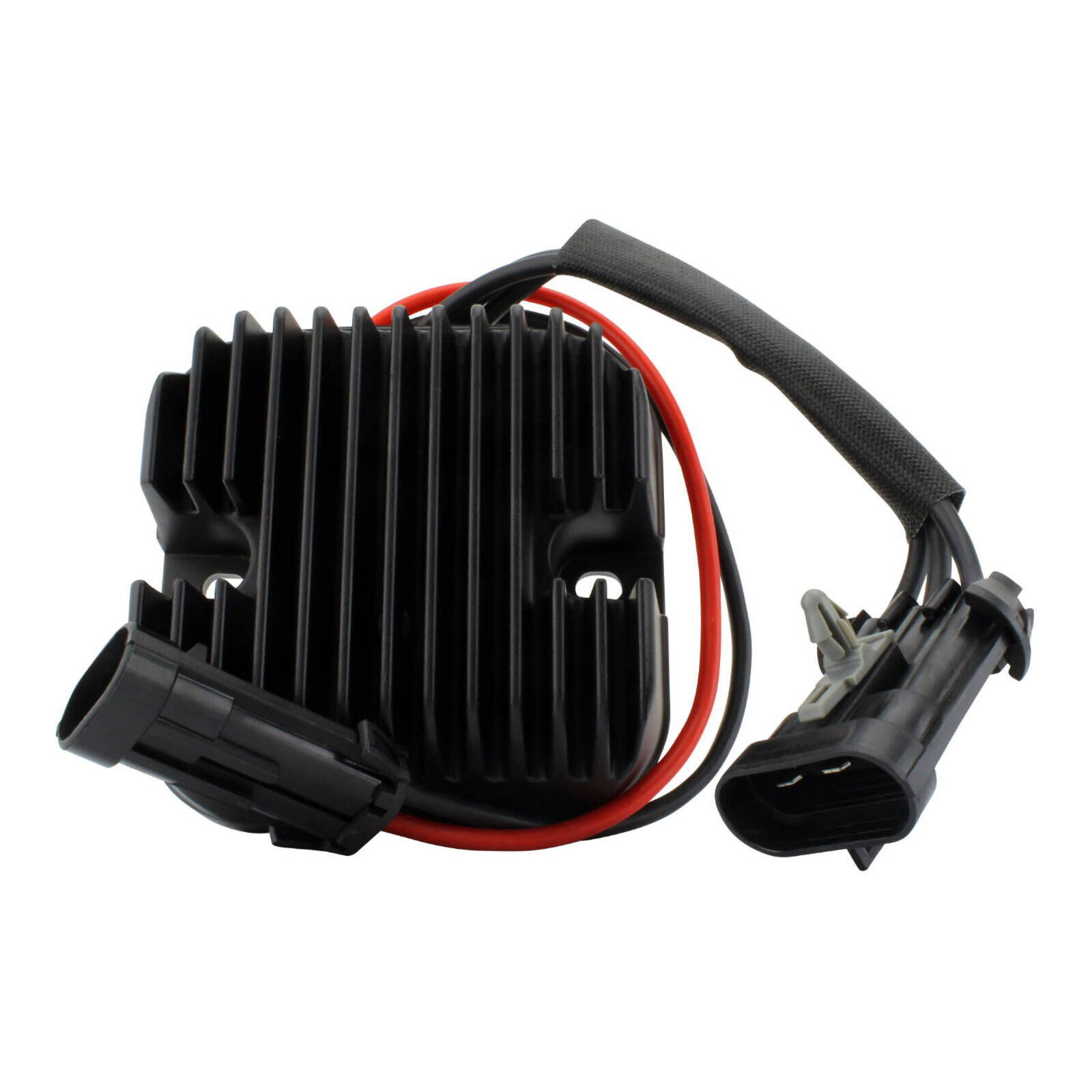

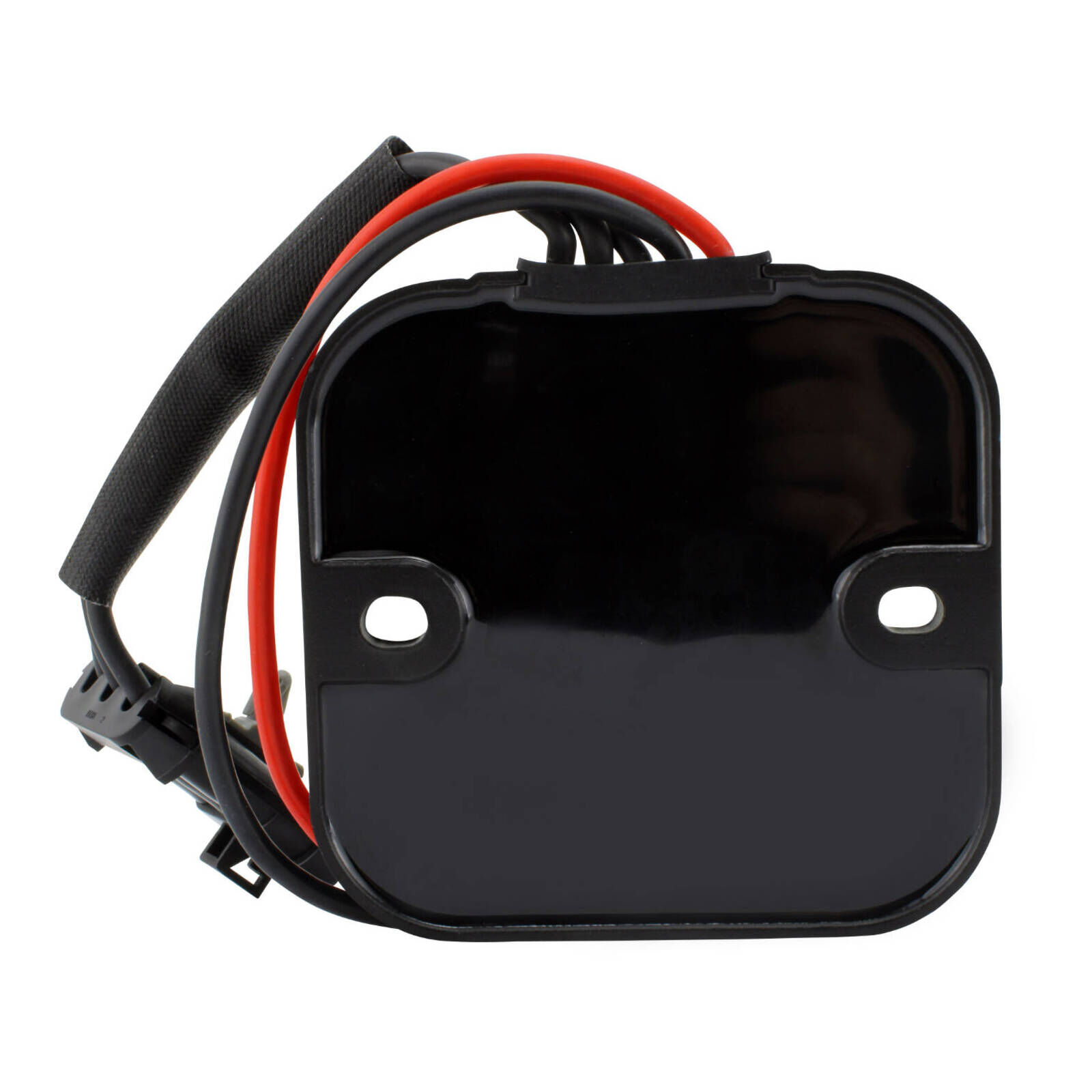

Brand new Mosfet Voltage RegulatorRectifier

STOP BURNING YOUR REGULATOR RECTIFIER!

It is time to update or replace your voltage regulator with theadvanced MOSFET type.

It runs cooler than all OEM diode-styleregulators.

  • Direct replacement to your originalunit
  • Plug-and-play direct fit easy installation
  • Thequality exceeds the OEM equipment
  • Higher grade of electriccomponents
  • All shipped products aretested

Dimensions:

  • Width: 108mm
  • Length: 112 mm
  • Height: 51 mm
  • Stator Wire length: 130 mm
  • Battery Wire length : 200 mm
  • Distance betweenfixation holes center to center: 82mm



Otherspecifications:

  • Number of plugs: 2
  • Number ofpins: 5
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5 V+- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • OpenCircuit Voltage: < 15 V
  • Operation Temperature: -20°C to85°C

(RMS020107305_9)

SKU RMS020107305_9
Brand RMStator
Unit Of Measure each
