EVO High beams

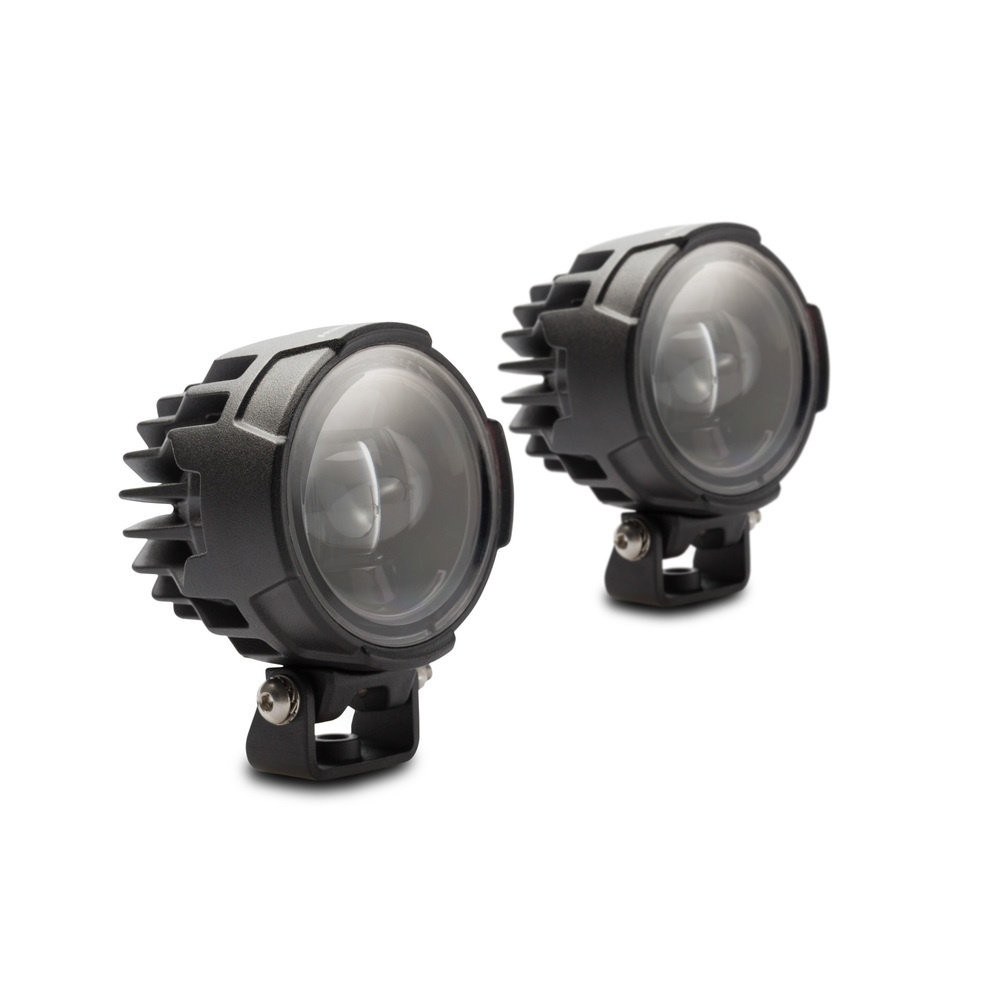

The highly concentrated light of the EVO high beams has a particularly wide range. This provides optimal lighting for the rider's view and ensures safety during on- or off-road riding. SW-MOTECH sought out a reliable partner for the development of the new EVO fog lights and relied on the expertise of a long-standing top manufacturer from the automotive sector. Development is focused on meeting the strictest quality standards while also maintaining a compact shape: the EVO high beams are resistant to water and dust, with an IP69 protective class rating. Powerful LEDs provide the best view, while wear-resistant housings ensure long life.

• Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption
• Power output: 12 W each light
• Luminous flux: 800 LM each light
• ECE test mark: ECE R113 Rev.2
• Highly concentrated beam with long-distance range
• Compact size with a diameter of 7.1cm
• Water- and dustproof (safety class: IP69)
• Voltage: 12 V. Cable harness for easy connection to the motorcycle battery included in delivery, no change to motorcycle electric required
• Splash-protected, blue glowing handlebar switch for comfortable operation (Protection class: IPX4)
• Mounting points on all four sides

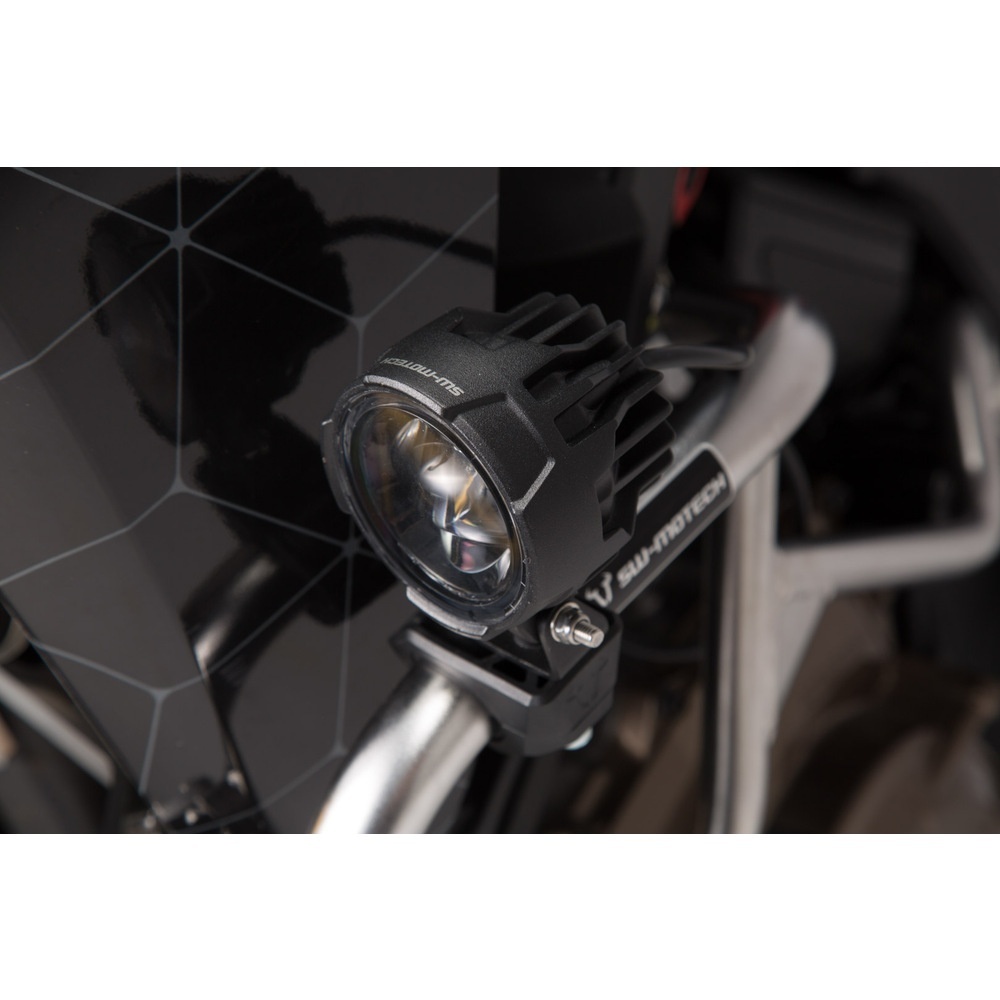

• Installation on headlight clamps for crash bar (Ø 22, 26, 27, 28 mm) or bike-specific brackets

Included in delivery

• 2 x EVO High beams
• 1 x Handlebar switch
• Mounting instructions
• Mounting material

Details

• Material: Aluminum
• Surface: powder coated
• Color: black
• Total Weight: appr. 1,3 kg / appr. 2.9 lb

Note

• Note that due to the curvature of the reflector the "TOP" mark must always be at the top.
• Light clamps for crash bar and bike-specific mounts are available separately.
• Please observe the legal regulations applicable in your country for the operation and installation of high beams

Required for mounting

• Crash bar clamps or bike-specific light mount

Approval notice

The lights have an ECE test mark (ECE R113 Rev.2).ECE numbers allow installation without third-party approval from a testing institute such as TÜV or DEKRA.The following are decisive in determining how headlights are to be mounted: the national StVZO (German Road Traffic Licensing Act; § 50) within the Federal Republic of Germany and, within Europe, EEC directive 93/92 regarding lighting and signaling devices for two- and three-wheelers. These state, among other things:- Mounting two high beam lights is permitted.- In the case of two high beam lights, the distance between the two lit surfaces must not be greater than 200 mm.- The headlight must emit a white light and the taillight a red light; yellow lights may be used on the sides.- Pairs of lights must be fixed symmetrically to the center of the vehicle and at the same height.- The luminosity of the lights must be the same.- High beams must not be operated at the same time as the fog lights.Regulations for approval in the respective country must be clarified prior to purchasing the product.
