EVO Fog light kit Universal

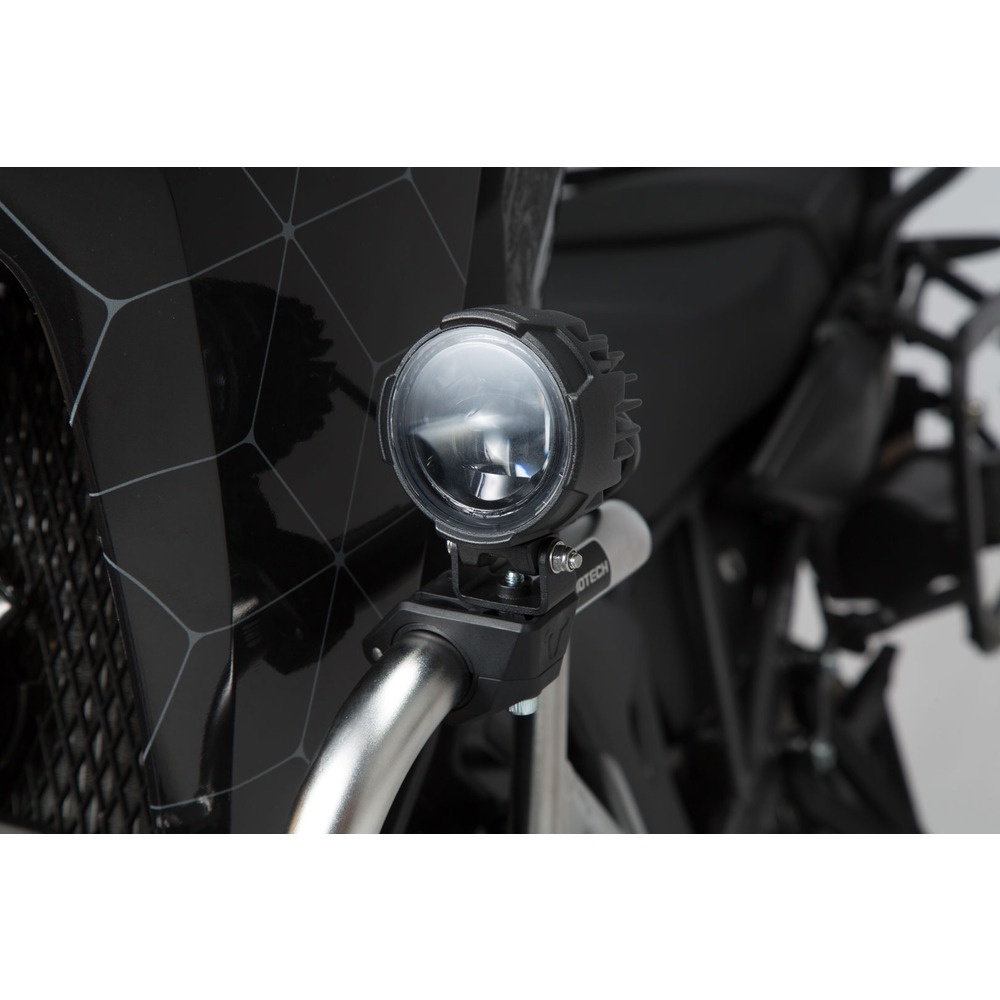

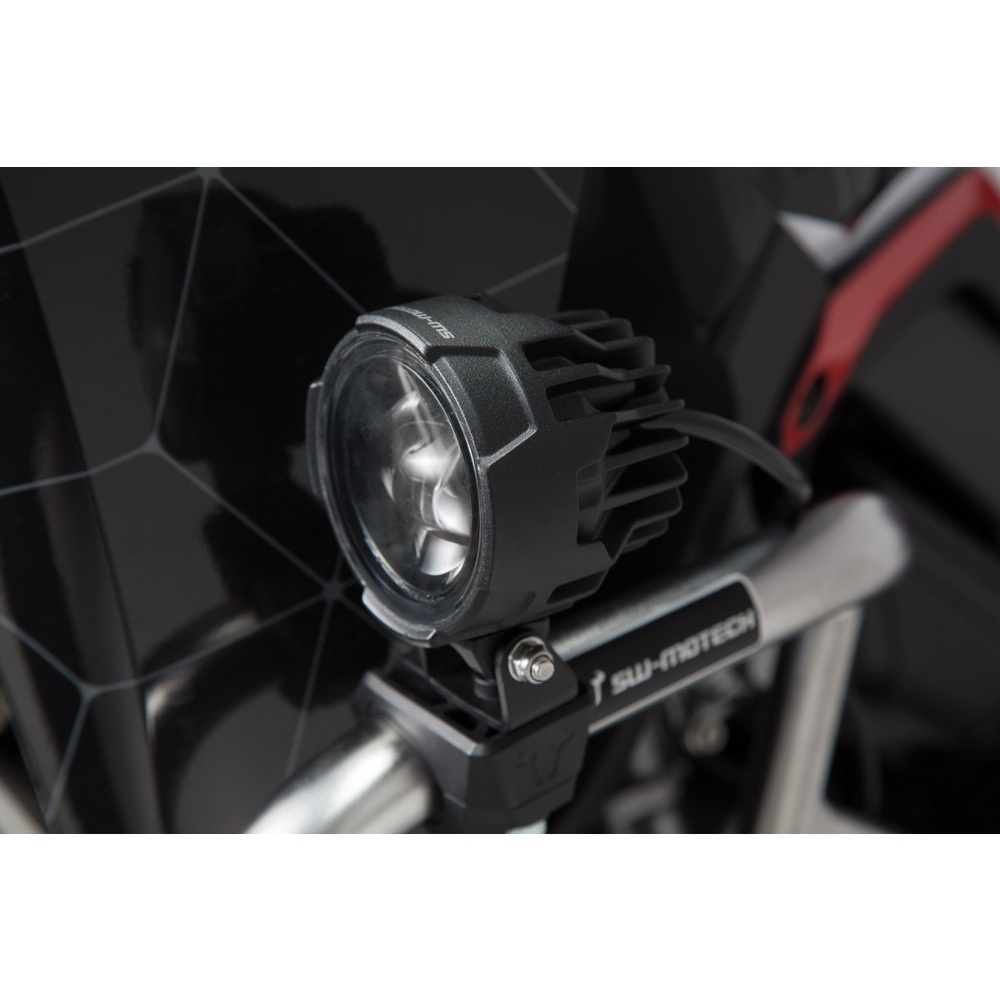

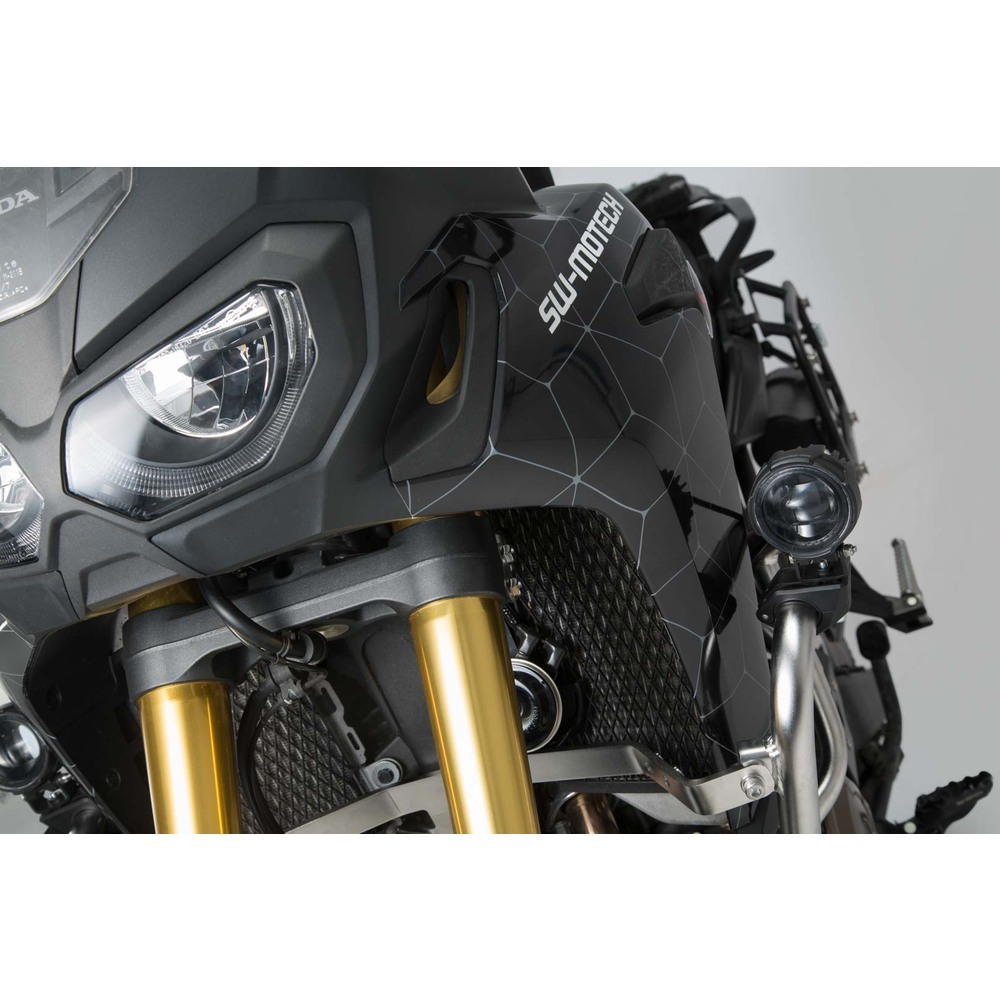

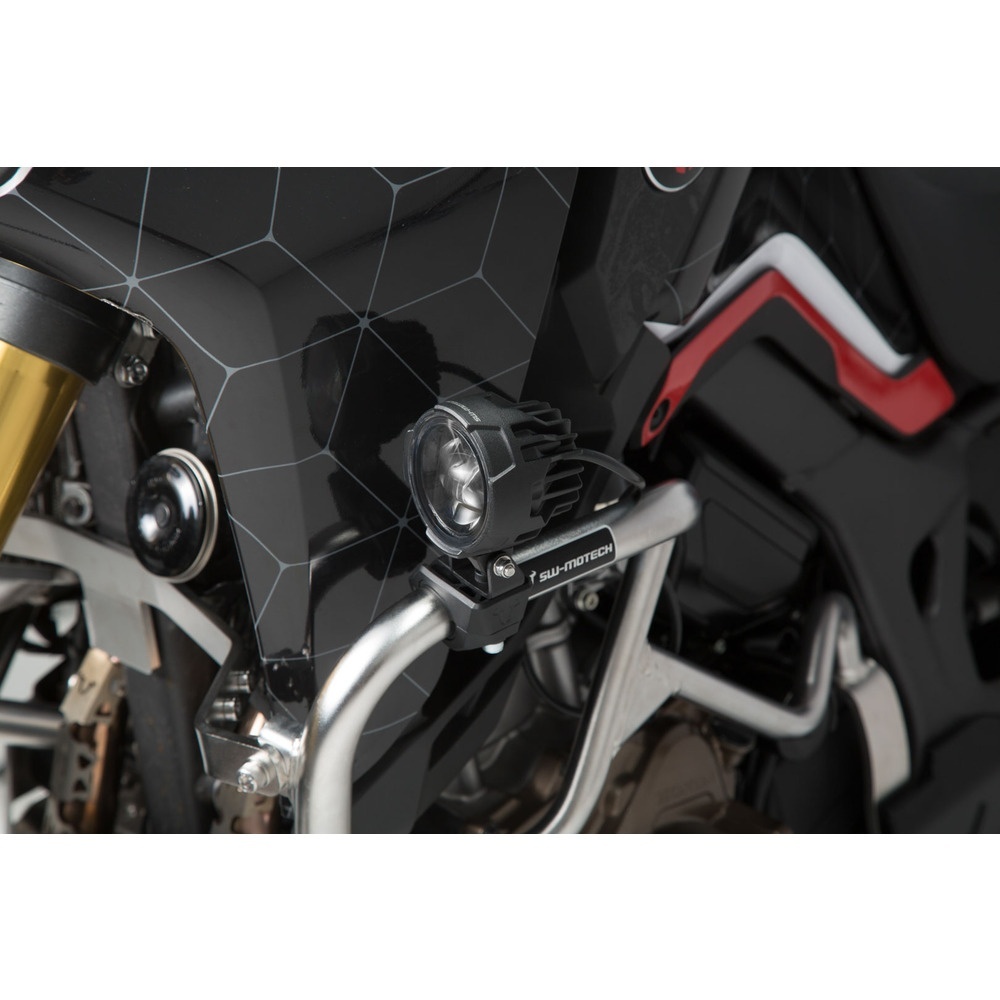

This kit contains all parts required to easily and securely mount the EVO fog lights on the crash bar. The crash bar clamps allow the fog lights to be mounted on crash bars with various pipe diameters.The particularly wide light scatter of the EVO fog lights ensures that you better "see and be seen" in fog or in poor weather. Safety in road traffic is therefore increased. SW-MOTECH sought out a reliable partner for the development of the new EVO fog lights and relied on the expertise of a long-standing top manufacturer from the automotive sector.The focus of the new development was on a compact shape and fulfilling the highest quality standards: the EVO fog lights are water- and dust-tight and protection class IP69. Powerful LEDs provide the best view, while wear-resistant housings ensure long life.

• Crash bar clamps for EVO lights

  • For mounting on crash bars or other vehicle parts with the corresponding diameter
  • For SW-MOTECH EVO lights
  • Includes rubber inserts for adapting to 22/25.4/26/27 mm and 28 mm.
  • Made from fiberglass-reinforced polyamide

  • Details

  • Material: Polyamide
  • Color: black
  • Total Weight: appr. 0,2 kg / appr. 0.5 lb

• EVO Fog lights

  • Trouble- and maintenance-free operation due to almost wear-free LED, considerably reduced energy consumption
  • Compact size with a diameter of 7.1cm
  • Water- and dustproof (safety class: IP69)
  • Voltage: 12 V; cable harness for easy connection to the motorcycle battery is included, no change to motorcycle electric required
  • Splash-proof and illuminated handlebar switch for easy operation
  • Lights have an ECE test mark (ECE R19 F3)
  • Power: 12 W / luminous flux: 1,050 LM each light
  • Splash-proof and bright green handlebar switch for convenient operation
  • Mounting points on all four sides
  • Installation on headlight clamps for crash bar (Ø 22, 26, 27, 28 mm) or bike-specific brackets

  • Details

  • Material: Aluminum
  • Surface: powder coated
  • Color: black
  • Size: 7,1 x 7,1 cm / 2.8 x 2.8 in
  • Total Weight: appr. 1,3 kg / appr. 2.9 lb

  • Note

  • Note that due to the curvature of the reflector the "TOP" mark must always be at the top.
  • Please observe the legal regulations applicable in your country for the operation and installation of fog lights.

  • Required for mounting

  • Crash bar clamps or model-specific light mount available separately.

Included in delivery

• 2 x EVO Fog lights, Aluminum, black
• 2 x Crash bar clamps for EVO lights, Polyamide, black
• 1 x Cable harness with safety device
• 1 x Handlebar switch
• Mounting instructions
• Mounting material

Details

• Material: Aluminum
• Surface: powder coated
• Color: black
• Total Weight: appr. 1,7 kg / appr. 3.7 lb
