ElectroSport regulator/rectifiers are designed to be direct replacements to original equipment by using stock mounting locations and OEM style connectors These parts are designed to handle higher power loads than their OEM counterparts Upgraded rectifier bridge components Extra heavy duty regulation circuit 1-year manufacturer’s warranty

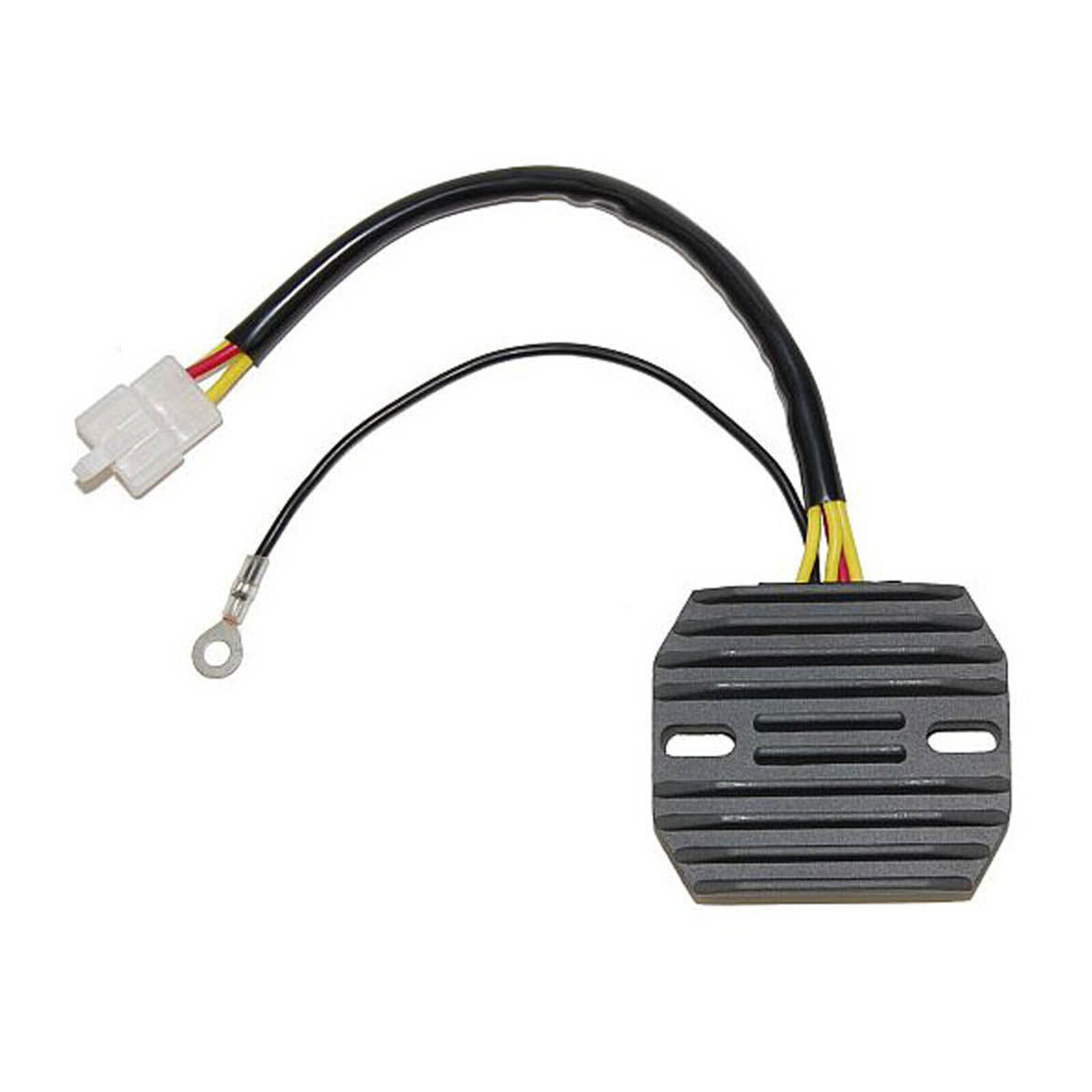

ESR090 is a high quality regulator/rectifier that replaces the not-so-reliable OEM Suzuki part. Power handling of our ESR090 is superior, and the part is designed to be a plug in replacement. We have incorporated a heat sink that gets rid of internal heat to the housing quickly and efficiently, making for a very reliable unit.

This regulator/rectifier regulates all three phases coming from the stator, unlike the stock unit which only regulates 1 or 2 phases (depending on the model). Three phase regulation is a major step towards reliability on these Suzuki GS models.

Like all regulator/rectifiers manufactured by ElectroSport ESR090 also comes with a full one year warranty.

Input: 3x Yellow

+12V Output: Red

Ground: Black

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above will void any warranty.
