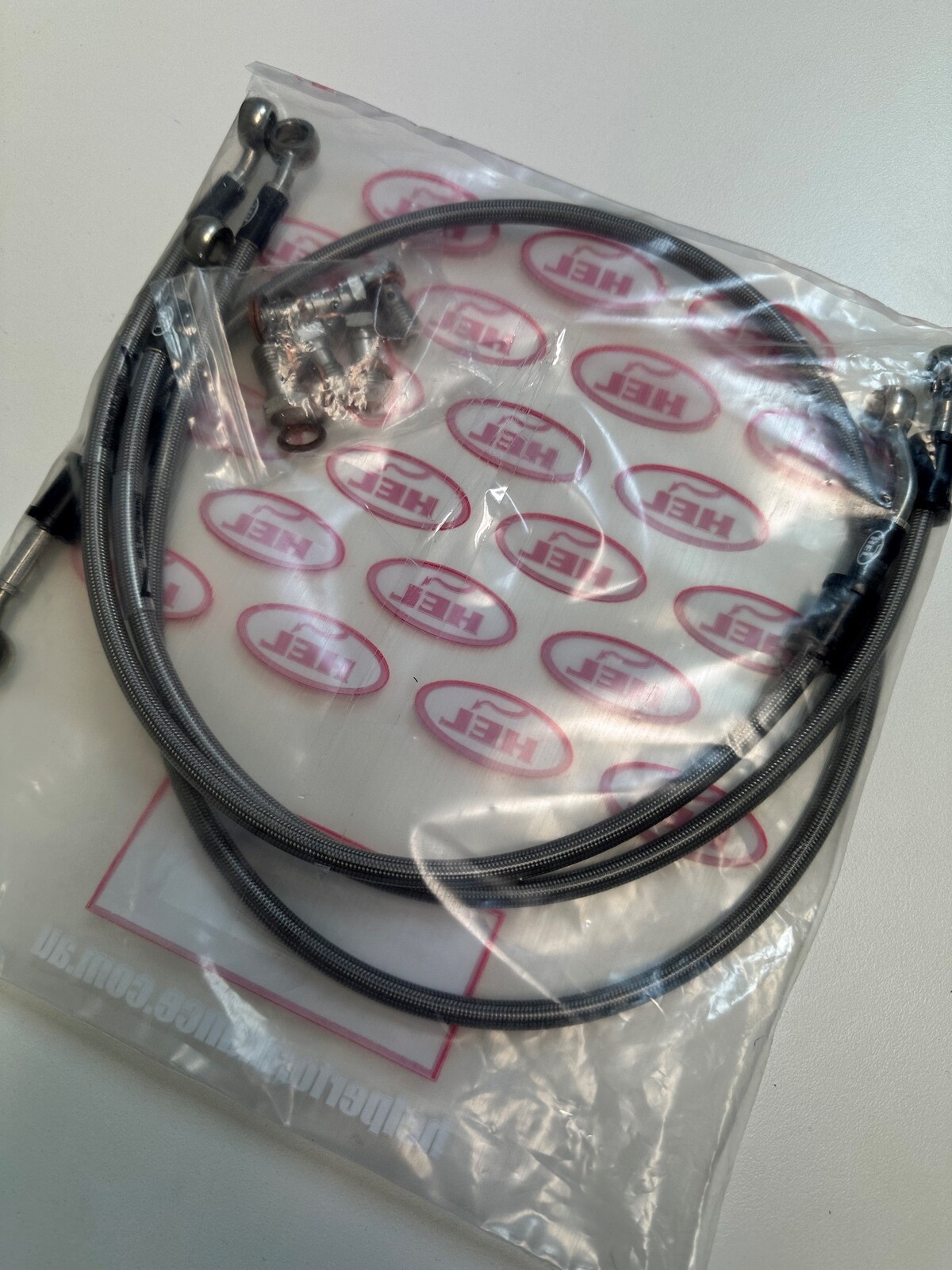

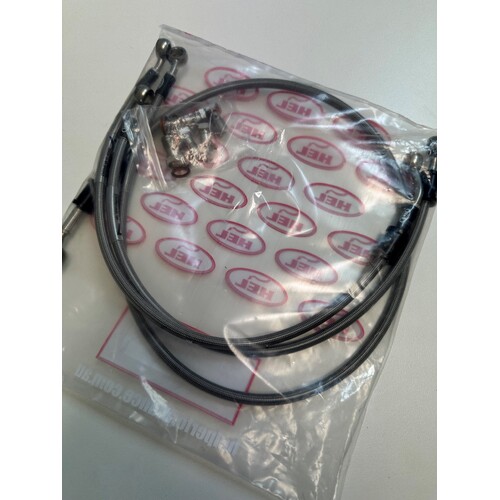

Kit contains 3 front lines and 1 rear line

Our performance brake lines replace rubber hoses which are fitted to most bikes as standard. The stainless braided hoses provide better braking feel by reducing the flex in the hose that causes the spongy brake lever feel. By replacing the original rubber hoses with our complete system, you will remove this sponginess and your braking will deliver new levels of precision.

These brake line kits feature stainless steel braided hoses with a PVC cover and stainless steel fittings which together offer excellent resistance to both corrosion and abrasion. Their swaged fittings give a positive and secure connection and a streamlined finish and are lighter, less bulky and safer than reusable equivalents.

• Stainless Steel Banjo Bolts and copper washers included
• Rubber Grommets (where required) to safely mount the lines using your bike's original guide brackets included
• Manufactured to FMVSS-106 Standards
• TUV, DOT, ADR & LTSA approved
• Superior braking feel
• Easy to install
• Lifetime warranty

All kits are complete and ready to fit
All Hel Performance kits include CNC machined fittings, ferrules, stainless steel braided Teflon hoses, plus all the required banjo bolts and copper washers to fit straight out of the box.

Global Certification
All hoses are tested to extremes in the laboratory, and on the racetrack, where they’re proven time and time again. Our hoses meet and exceed regulatory requirements all over the world, making them road legal anywhere.

Specifications
Line inner material                     PTFE
Line outer material                     Stainless steel (303/304) and protective PVC cover
Fittings material Stainless steel (303/304)
Temperature range                    -70°C to 260°C (-94°F to 500°F)
Inside diameter  3.5mm             (0.138")
Outside diameter                       7.5mm (0.295")
Maximum working pressure      290 Bar (4206 PSI)
Burst pressure                           870 Bar (12618 PSI)
Minimum bend radius                38mm (1.496")
