• Direct replacement to your original unit
  • Plug-and-play direct fit easy installation
  • Highest grade of laminationmaterials
  • Highest grade of copper winding resistant to 200degrees Celsius

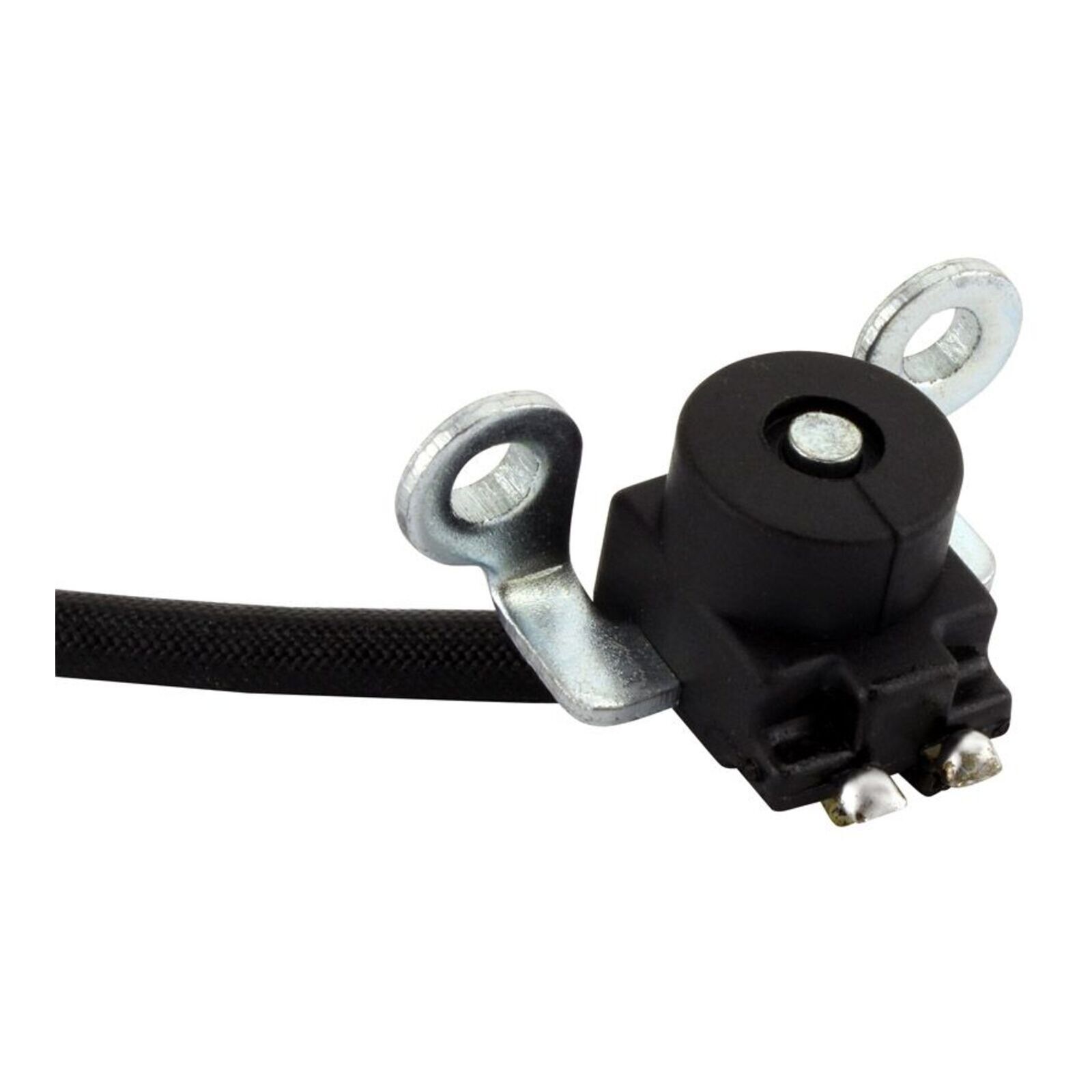

  • Pick up pulsar coil included

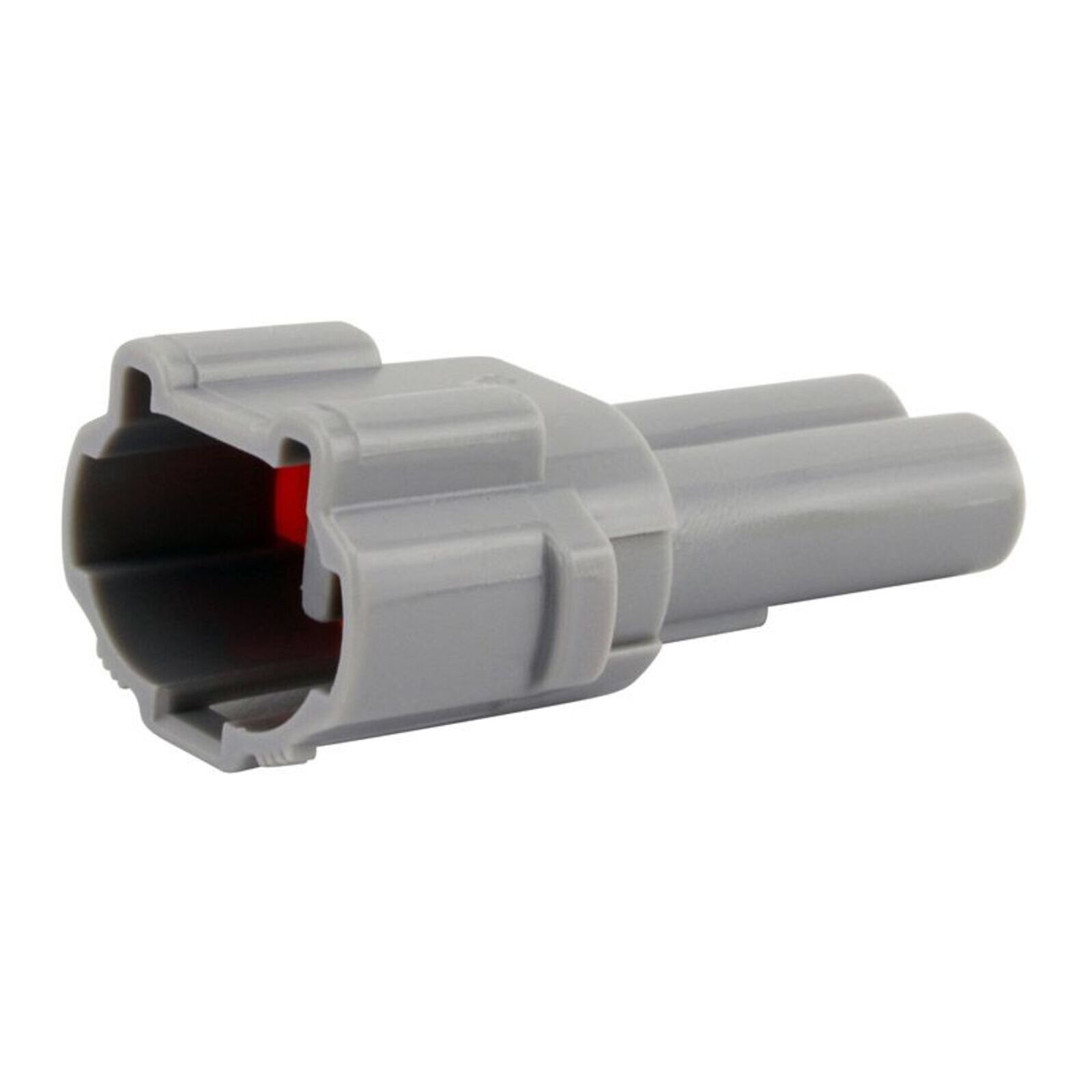

  • Connectorsincluded

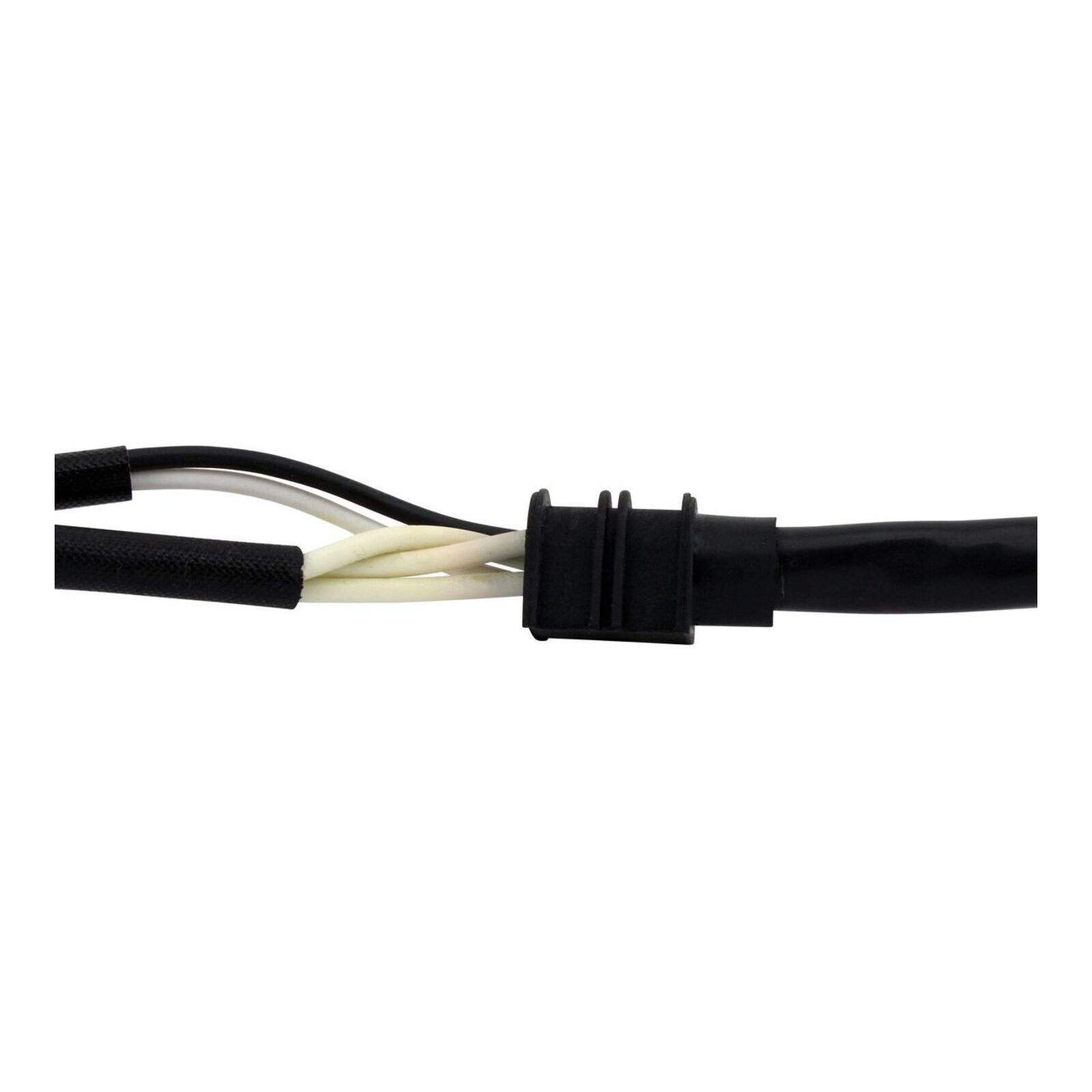

  • Rubber grommet included
  • All products shippedare tested

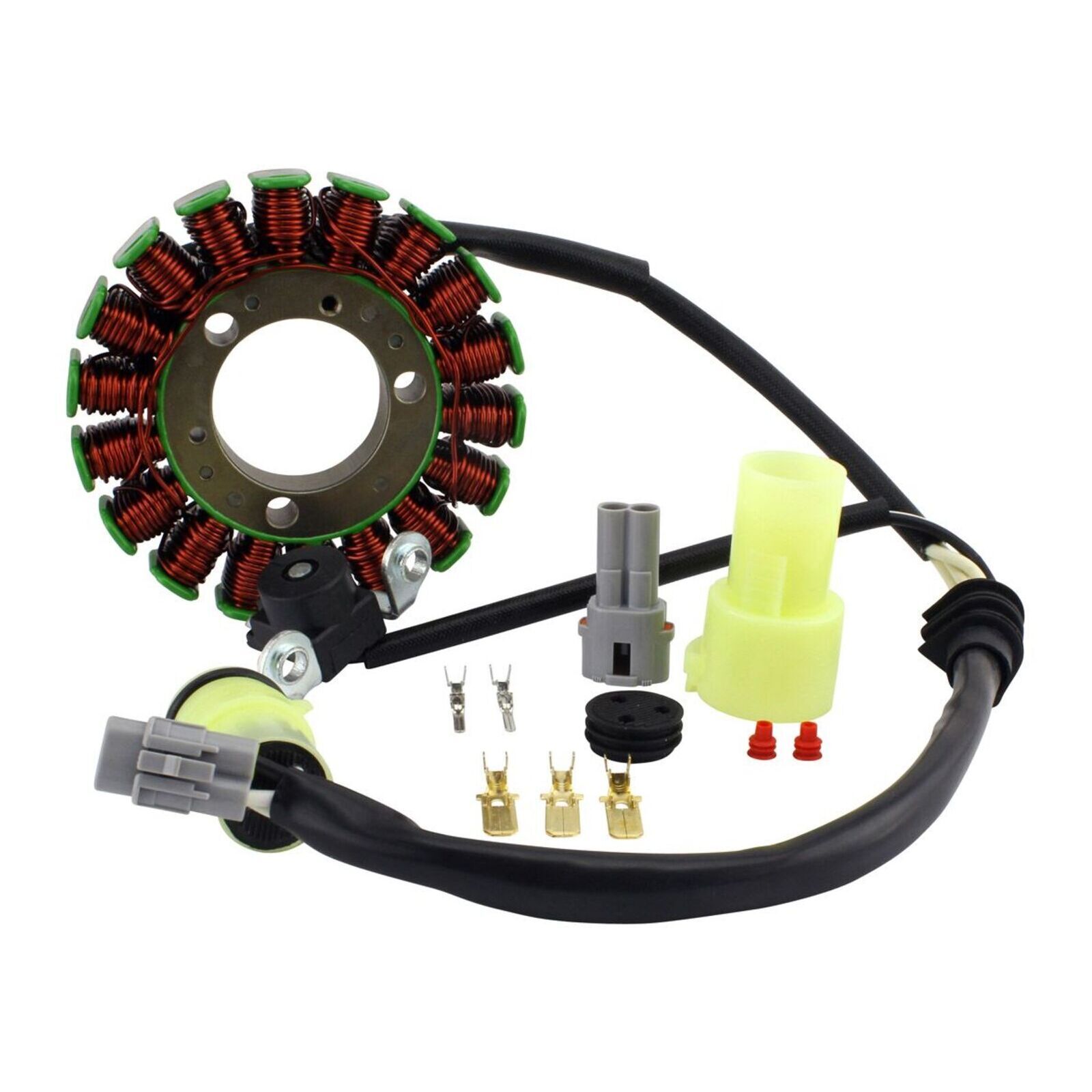

This stator output 300W (vs OEM 208W) to giveyou extra power to install accessories and lighting.

20%MORE OUTPUT OVER STOCK WORKS WITH ALL OTHER OEMCOMPONENTS.

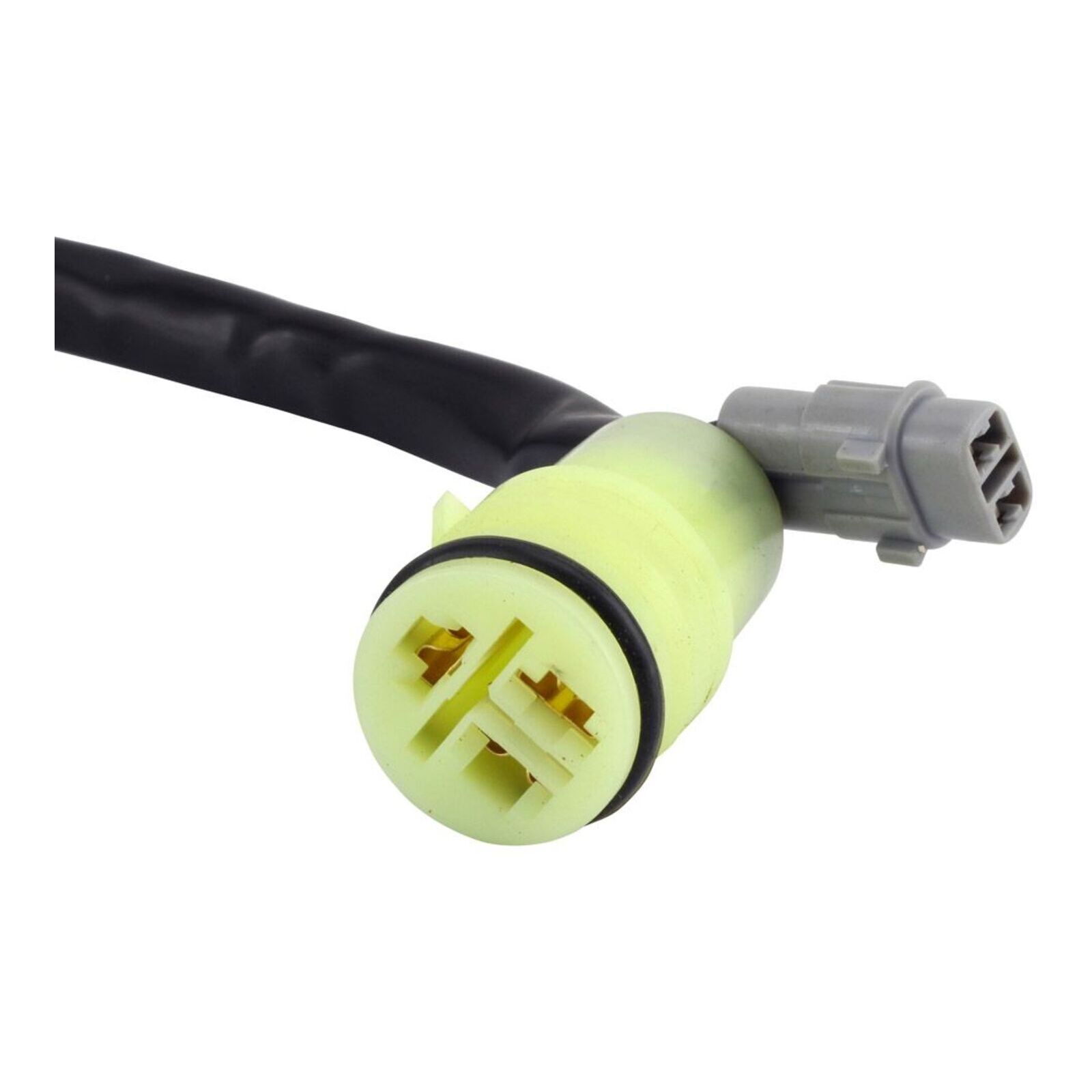

RM Stators has even included the oppositeconnector (main harness side) as we know these are oftenmelted/corroded/defective and a major cause of repetitive electricalissues.

All item pictures are accurate; if in doubt do nothesitate to compare our item to your originalpart.

Dimensions:

  • Interiordiameter: 37 mm
  • Exterior diameter: 97 mm
  • Thickness: 14mm
  • Length of wires stator to grommet: 160 mm
  • Length ofwires grommet to plug: 180 mm
  • Length of pickup coil's wire togrommet: 180 mm

Otherspecifications:

  • Number of wires: 5
  • Numberof plugs: 2
  • Number of pins: 5
  • Number of poles:18
  • Wire to wire resistance:
    • Alternator: White to White= 0.2 ohms +-20%
    • Pickup: White to Black = 260 ohms+-20%

(RMS010107948_1)

SKU RMS010107948_1
Brand RMStator
Unit Of Measure each
