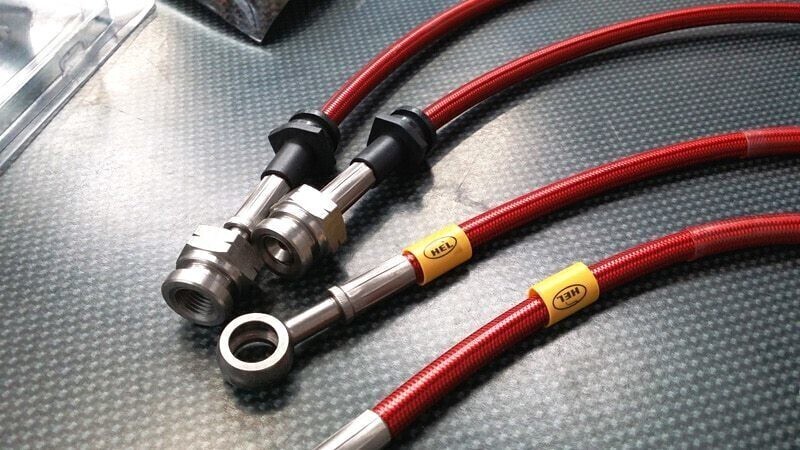

2010-2013 BMW S1000RR ABS Front & Rear Braided Brake Line Kit
In Stock
Our performance brake lines replace rubber hoses which are fitted to most bikes as standard. The stainless braided hoses provide better braking feel by reducing the flex in the hose that causes the spongy brake lever feel. By replacing the original rubber hoses with our complete system, you will remove this sponginess and your braking will deliver new levels of precision.
These brake line kits feature stainless steel braided hoses with a PVC cover and stainless steel fittings which together offer excellent resistance to both corrosion and abrasion. Their swaged fittings give a positive and secure connection and a streamlined finish and are lighter, less bulky and safer than reusable equivalents.
- Stainless Steel Banjo Bolts and copper washers included
- Rubber Grommets (where required) to safely mount the lines using your bike's original guide brackets included
- Manufactured to FMVSS-106 Standards
- TUV, DOT, ADR & LTSA approved
- Superior braking feel
- Easy to install
- Lifetime warranty

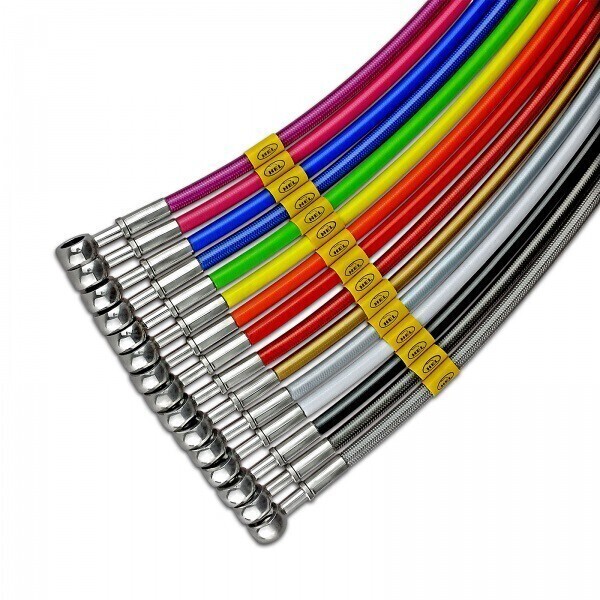

Your choice of coloured Protective PVC sleeve to prevent damage to your bodywork and paint
All Hel kits come complete with a protective PC cover. These covers are applied during manufacture so that they adhere to the stainless steel braid to guarantee that the look of your bike will be enhanced as much as your braking.

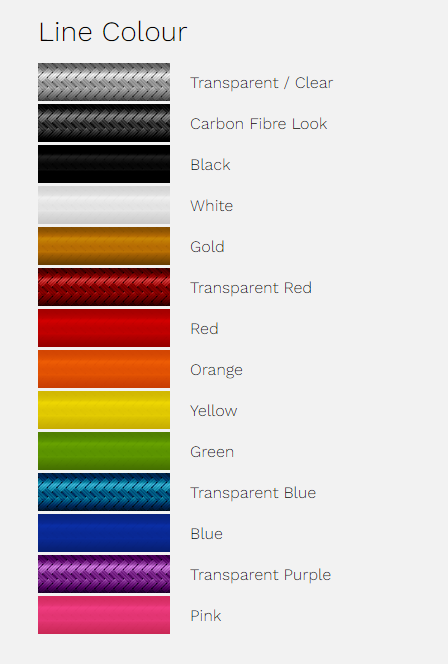

Please note that carbolook, clear, transparent blue, transparent red and transparent purple are translucent so you can see the braided hose through the covering, all other colours are solid.

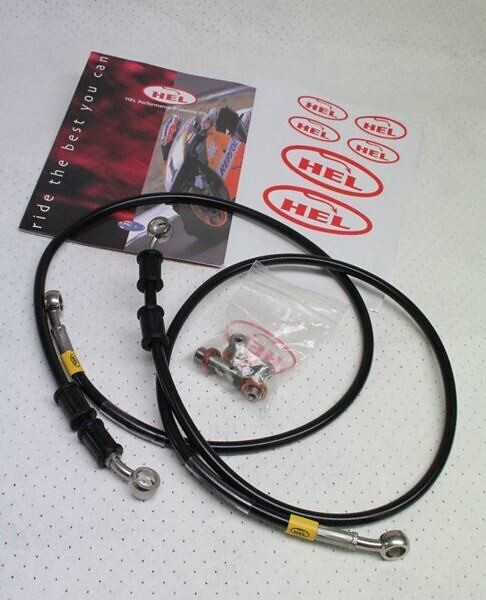

All kits are complete and ready to fit

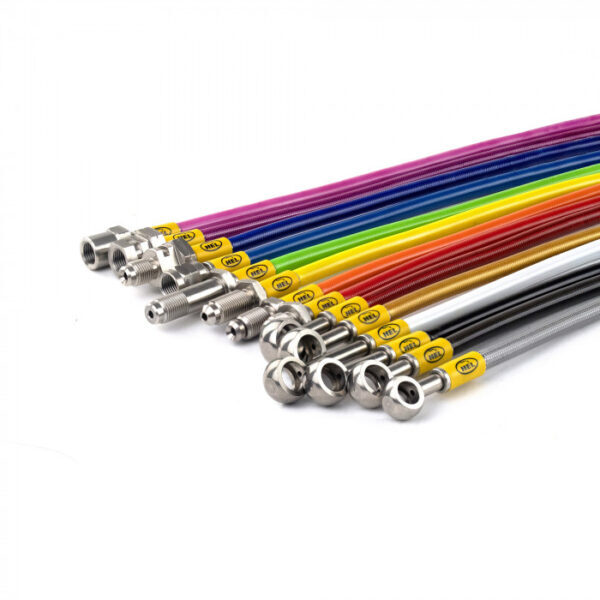

All Hel Performance kits include CNC machined fittings, ferrules, stainless steel braided Teflon hoses, plus all the required banjo bolts and copper washers to fit straight out of the box.
Global Certification
All hoses are tested to extremes in the laboratory, and on the racetrack, where theyre proven time and time again. Our hoses meet and exceed regulatory requirements all over the world, making them road legal anywhere.
Specifications
Line inner material PTFE
Line outer material Stainless steel (303/304) and protective PVC cover
Fittings material Stainless steel (303/304)
Temperature range -70°C to 260°C (-94°F to 500°F)
Inside diameter 3.5mm (0.138")
Outside diameter 7.5mm (0.295")
Maximum working pressure 290 Bar (4206 PSI)
Burst pressure 870 Bar (12618 PSI)
Minimum bend radius 38mm (1.496")
Please note brake line kits are made to order and take approximately 3 days to dispatch. As they are custom made, they are not returnable unless faulty.
(HBF0620)
SKU | HBF0620 |
Brand | Hel |
Custom Bundle | Yes |
Product Type | Brake Lines |
Vehicle Placement | Front & Rear Lines Included |
