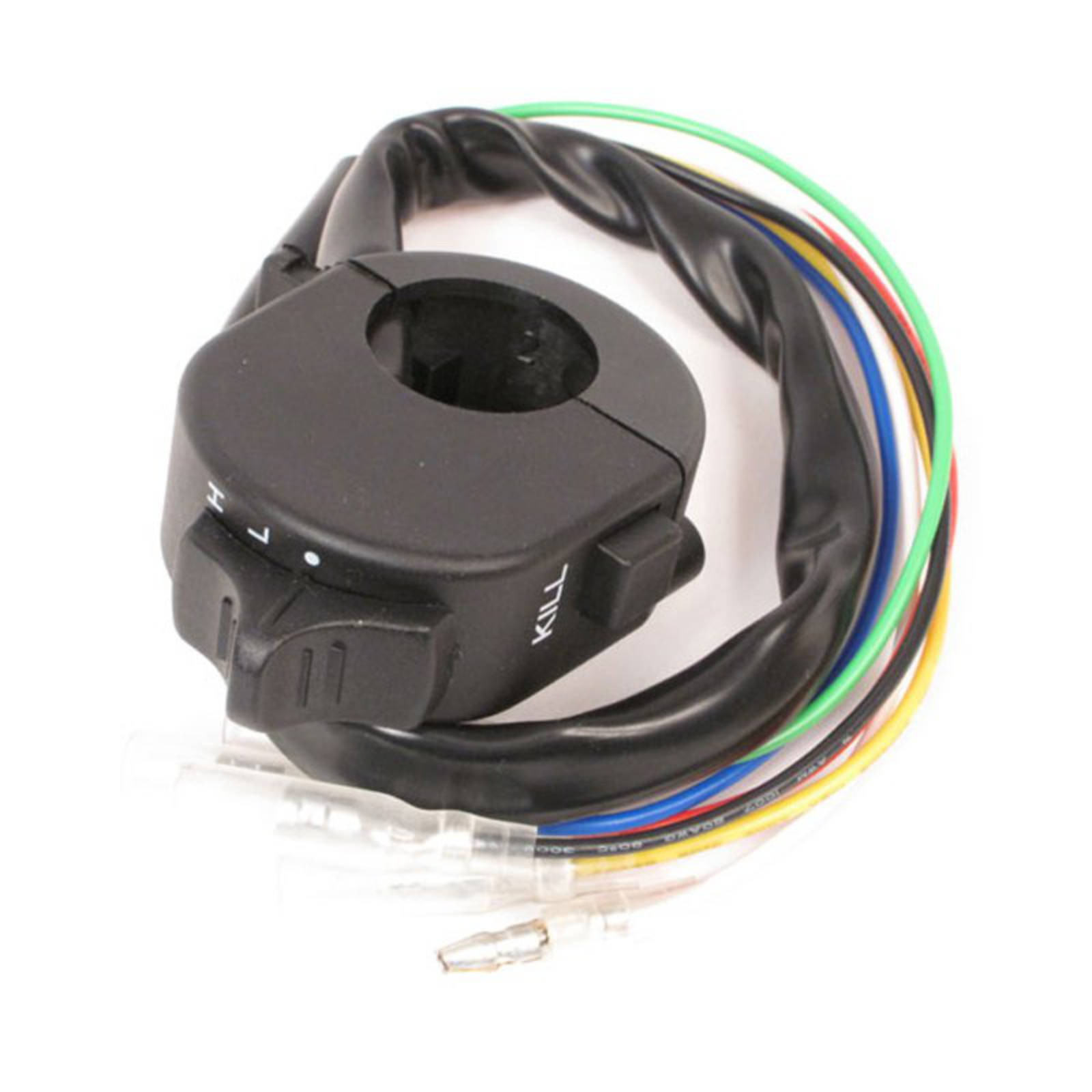

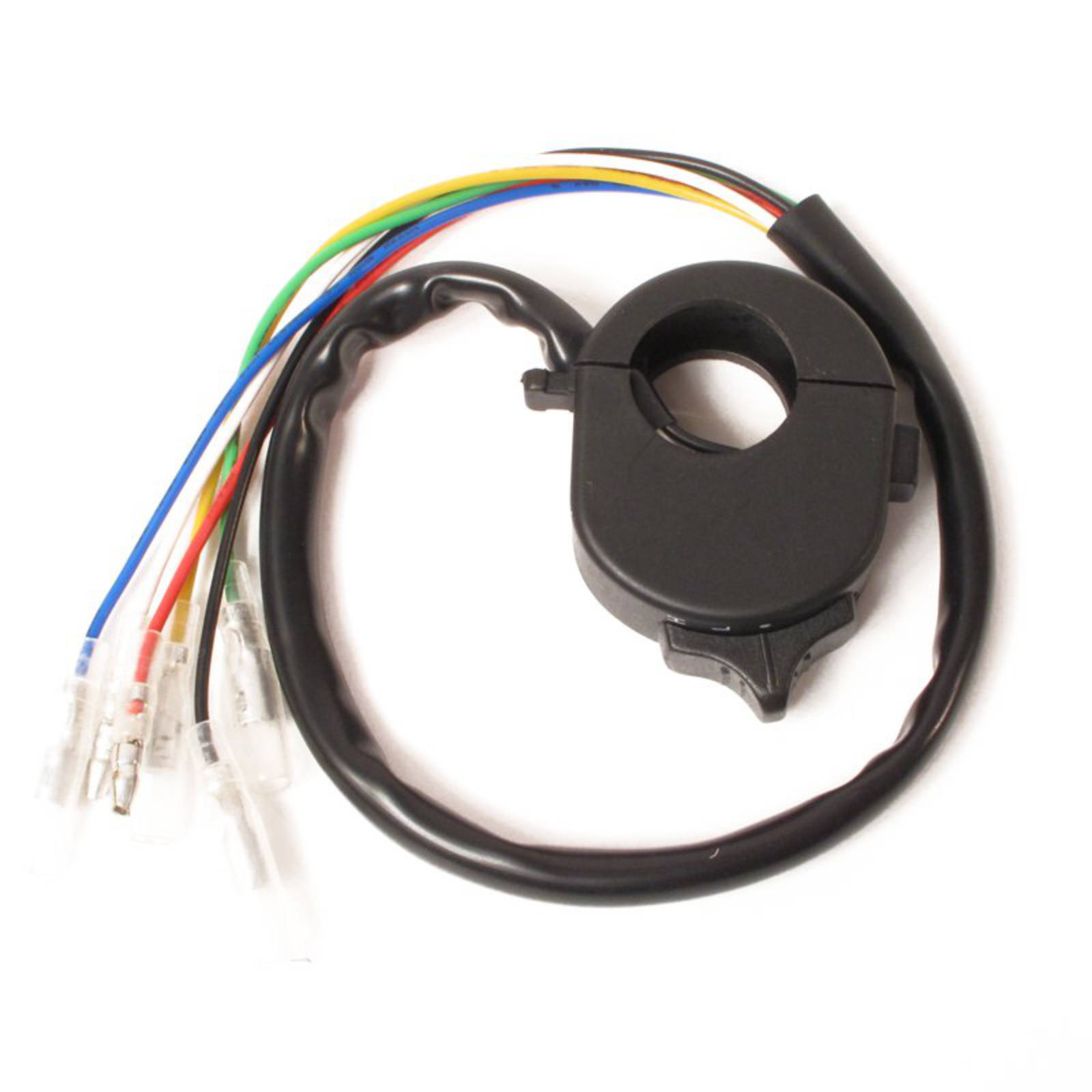

Boasting a sleek black and slim design the Whites Headlight Switch Blockis a multi-purpose handlebar switch including a High Low and Off settingfor your headlight along with a kill switch. The switch block is pre-wiredwith an 18 length and bullet terminals for a quick and easy installationand is compatible with 7/8 handlebars. The block is only 20mm wide and42mm high making it the perfect replacement for that bulky OEM block onyour daily commuter or one of custom machine.

Pre-wired 18 wirewith bullet terminals
Compatible with 7/8 handlebars
Full wraparound design
Three stage headlight switch high/low/off
Includeskill switch
Voltage Range - 11v - 15v
Max Amps - 2.5 amps
Material: ABS Plastic
Width: 20mm
Height: 42mm

Wiring Configuration:
Red: Positive
Black: Earth
White:Kill Switch
Green: Low Beam
Yellow: High Beam
Blue: ParkingLight

(SWHSBHHL1)

SKU SWHSBHHL1
Barcode # 9420060000000
Brand Whites
Unit Of Measure each
