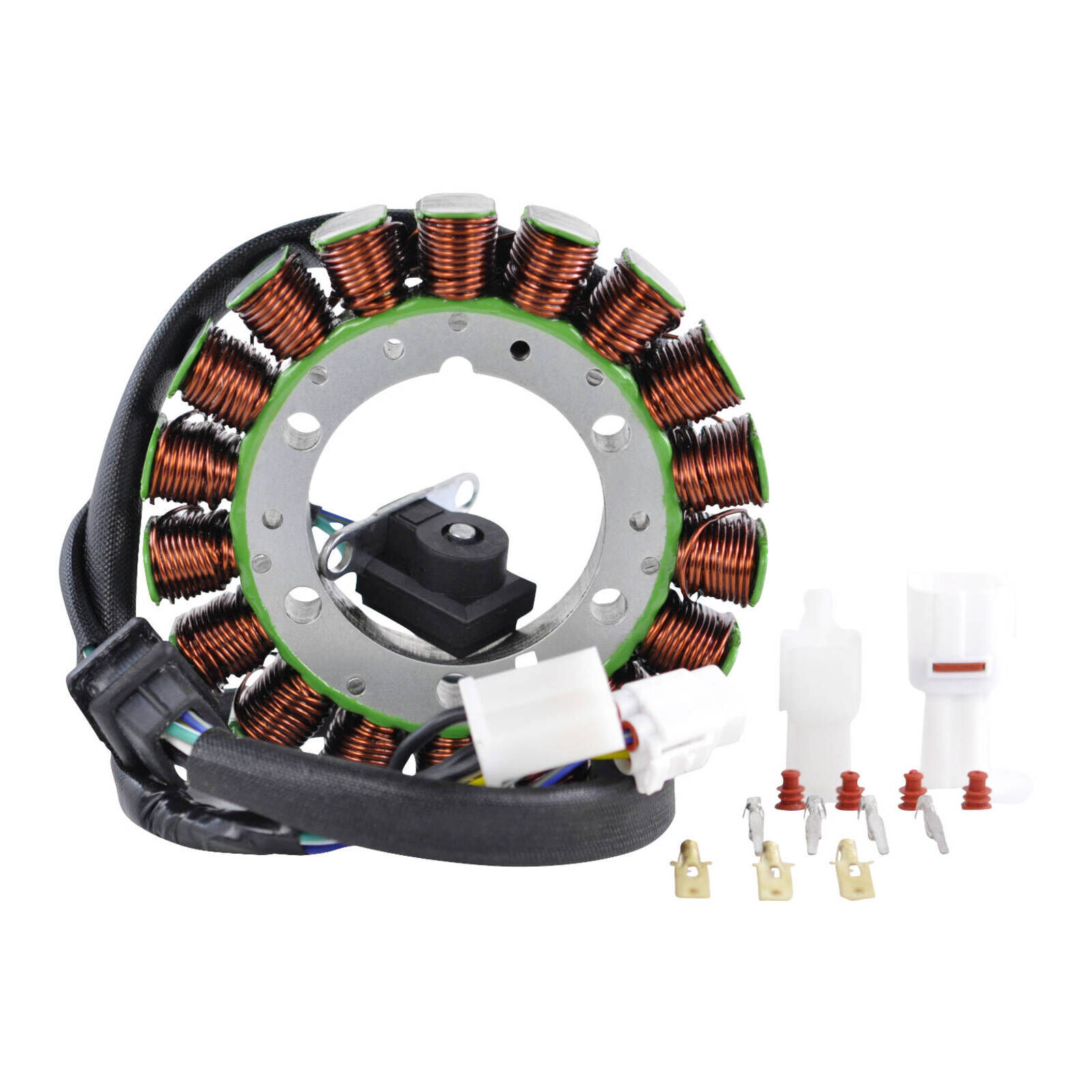

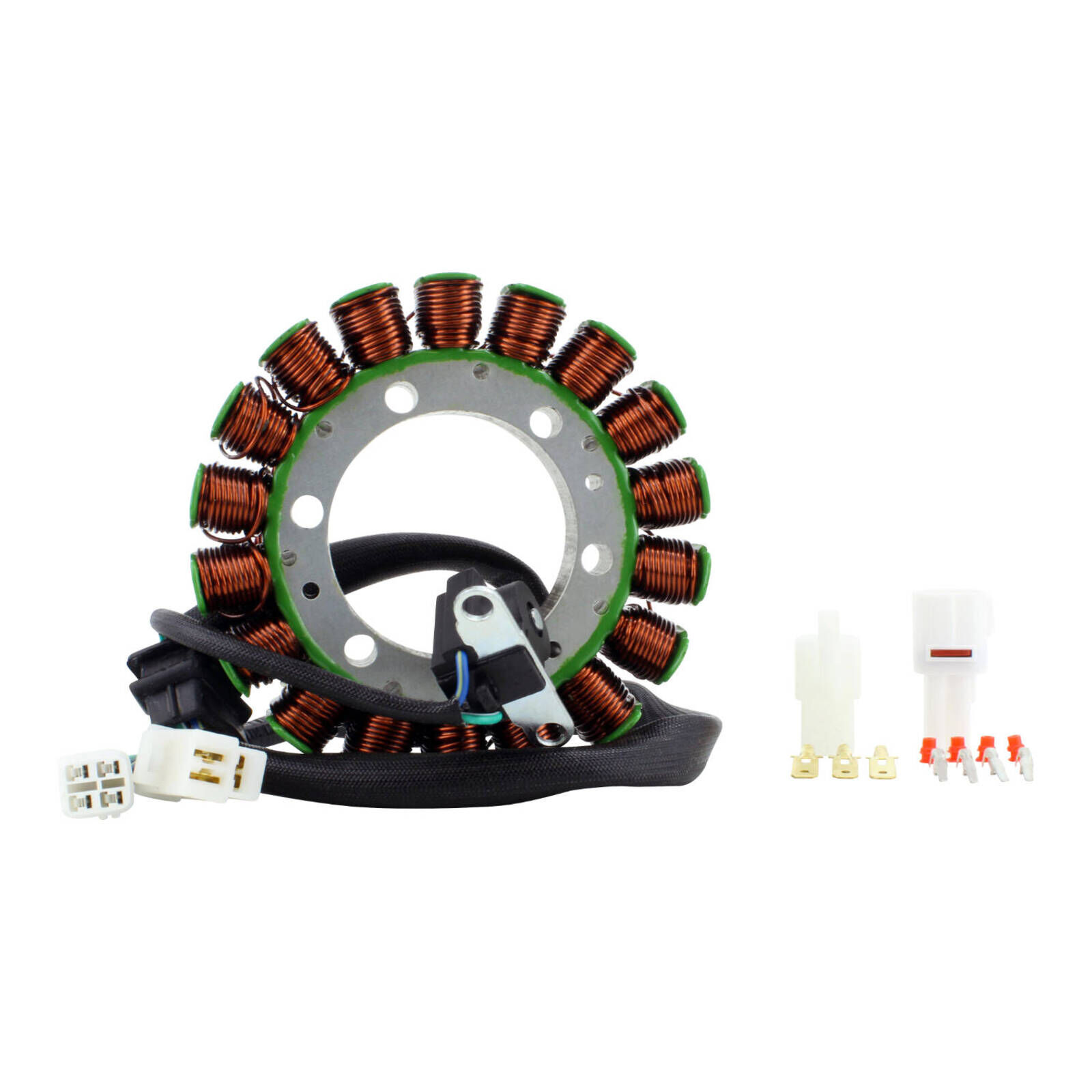

Plug-and-play replacement generator stator from RMStator.



Dimensions:

  • Interiordiameter: 54mm
  • Exterior diameter: 114mm
  • Thickness:18mm
  • Length of wires stator to grommet: 140mm
  • Length ofwires grommet to plug: 320mm
  • Length of pickup coil's wire togrommet: 95mm



Otherspecifications:

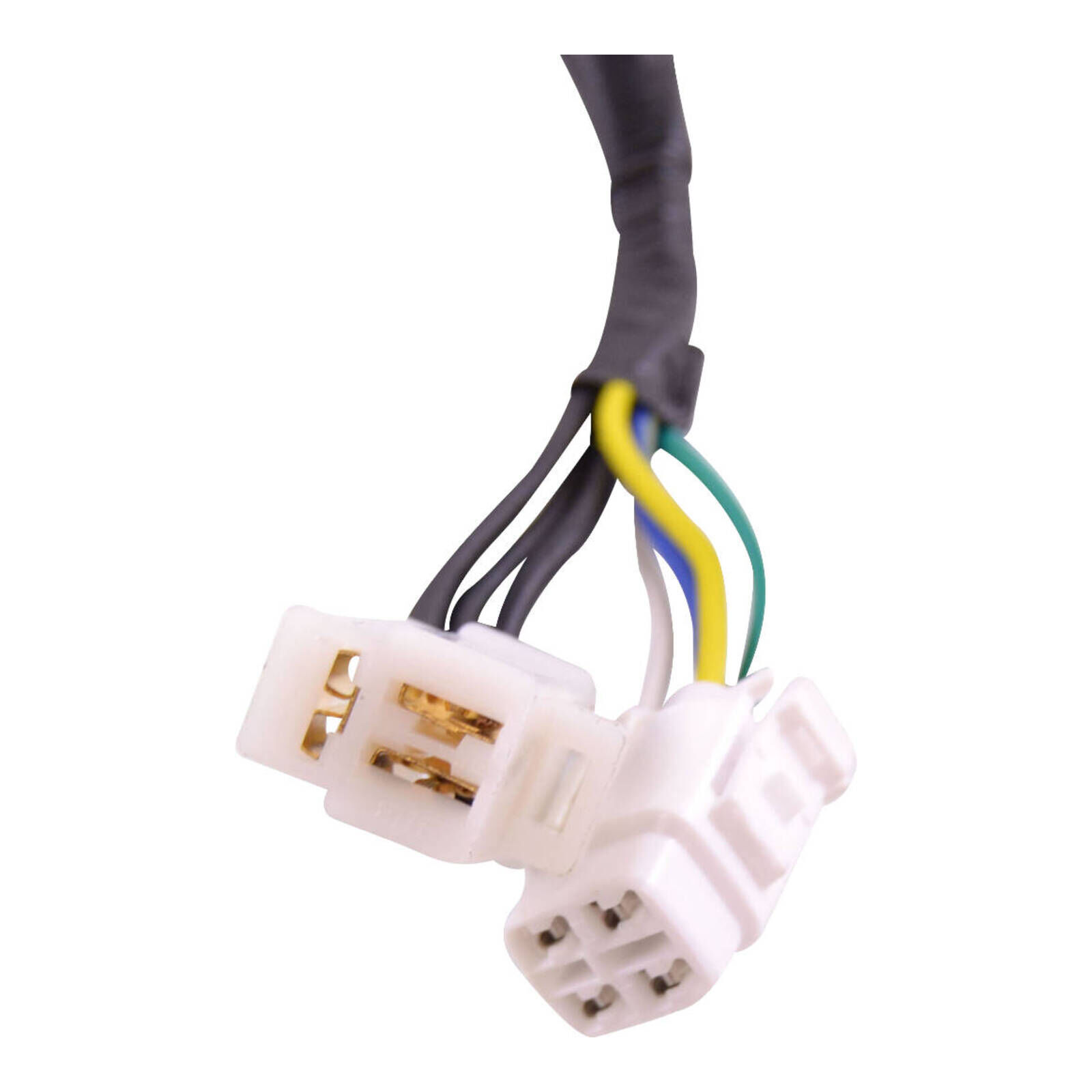

  • Number of wires: 7
  • Number ofplugs: 2
  • Number of pins: 7
  • Wire to wireresistance:
    • Alternator: Black between each Black = 0.4 ohms+-20%
    • Pickup: Blue to Green = 185 ohms +/-20%
    • PositionSensor: White to Yellow = 0.2ohms+/-20%



Details:

  • Direct replacement to your original unit
  • Plug-and-play directfit easy installation

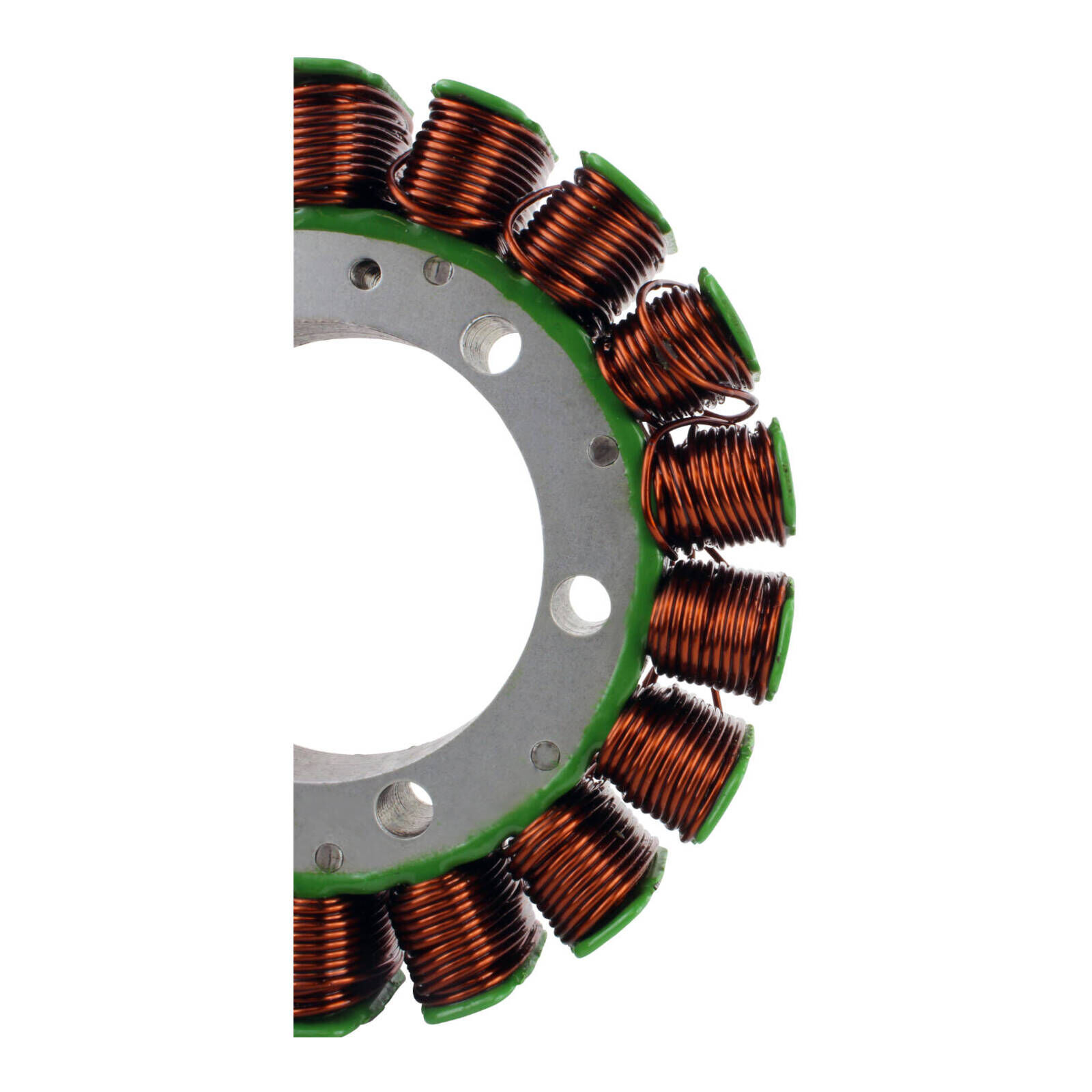

  • Highest grade of laminationmaterials
  • Highest grade of copper winding resistant to 200 degreesCelsius
  • Pick up pulsar coil included

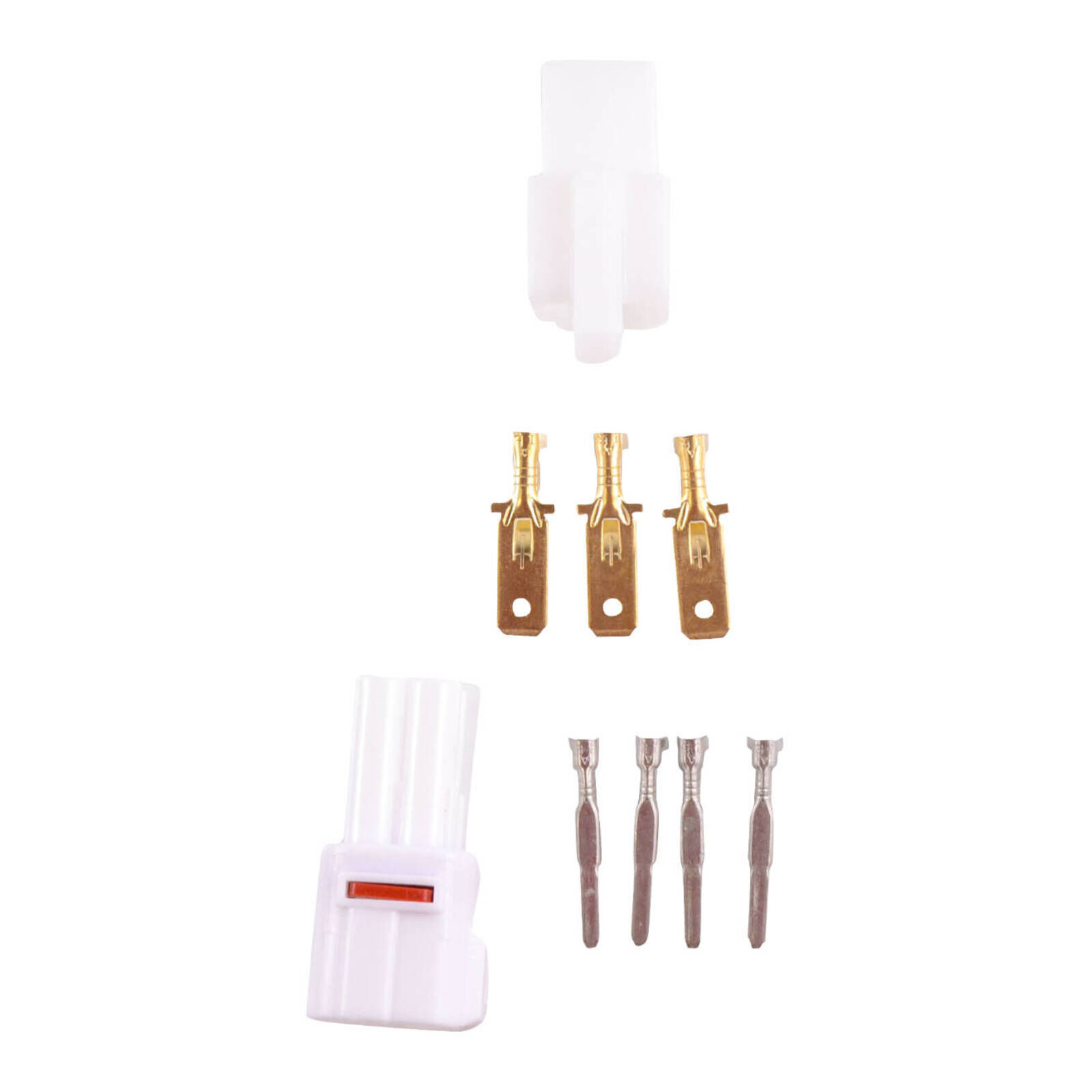

  • Connectorincluded
  • Rubber grommet included
  • All products shipped aretested

(RMS01285)

SKU RMS01285
Brand RMStator
Unit Of Measure each
